Assemble the fixture – LBL Lighting MEZZO GP User Manual
Page 2
2
2B

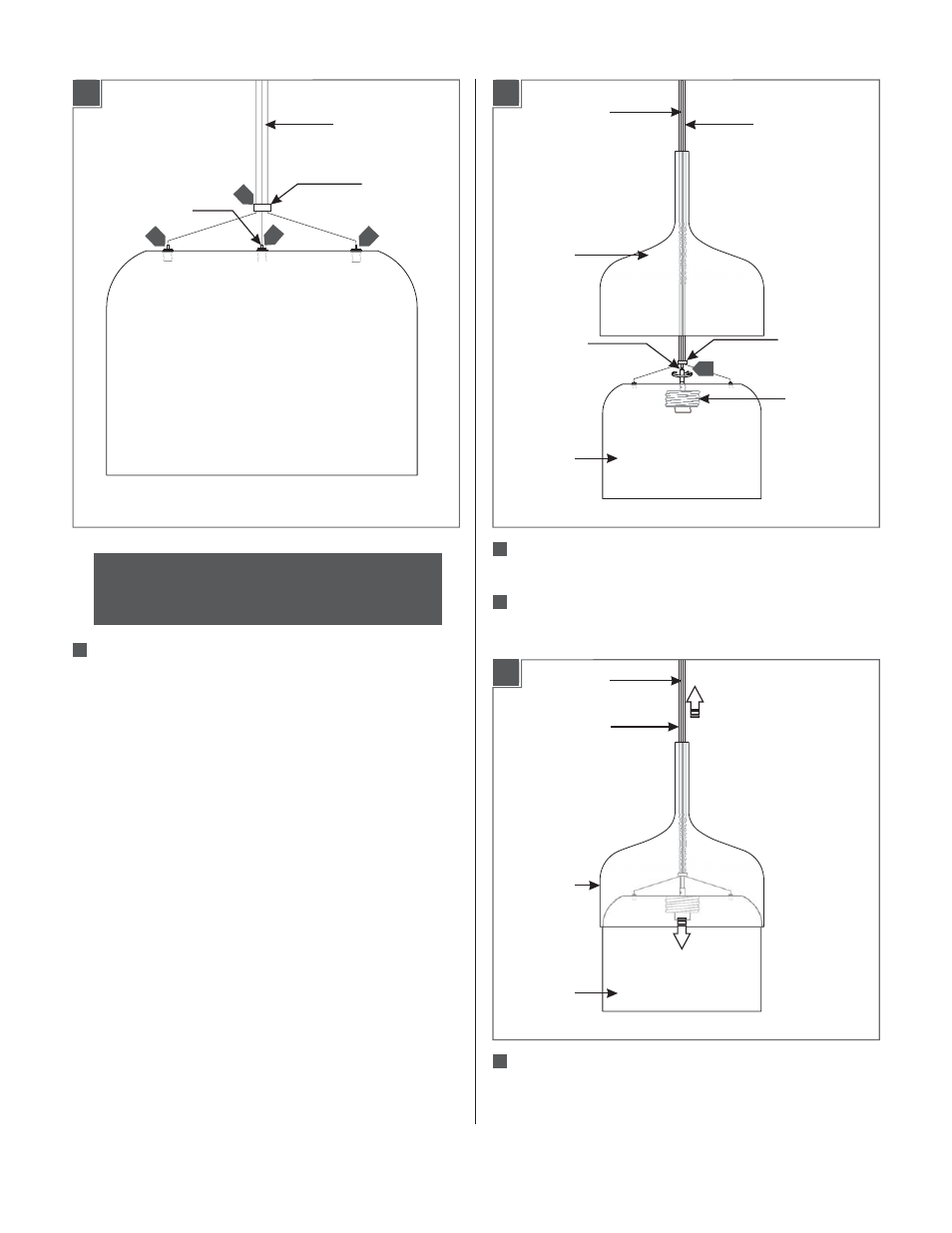

Assemble the Fixture
Feed the cord through the glass shade, stopper, and
outer shade.
Screw the threaded nipple on the socket assembly to the
stopper.
9
CORD
OUTER
SHADE
GLASS
SHADE
9
AIRCRAFT CABLE
THREADED
NIPPLE
STOPPER
8
Simultaneously pull the cables and cord upward while
carefully lowering the outer shade onto the glass shade.
10
2C
CORD
OUTER
SHADE
GLASS
SHADE
AIRCRAFT CABLE
SOCKET
ASSEMBLY
2A
Feed the aircraft cables through the stopper and cable
clutches.
7
AIRCRAFT CABLE
STOPPER
7
7
7
7
CABLE CLUTCH
CAUTION:
Ensure that the aircraft cable has been
fed completely through the cable clutches for proper
grip.
