2 connections, 1 connector pinout – Matrix Orbital LK202-24-USB User Manual
Page 8
2 Connections
2.1 Connector Pinout
Refer to the Figure below for this chapter.

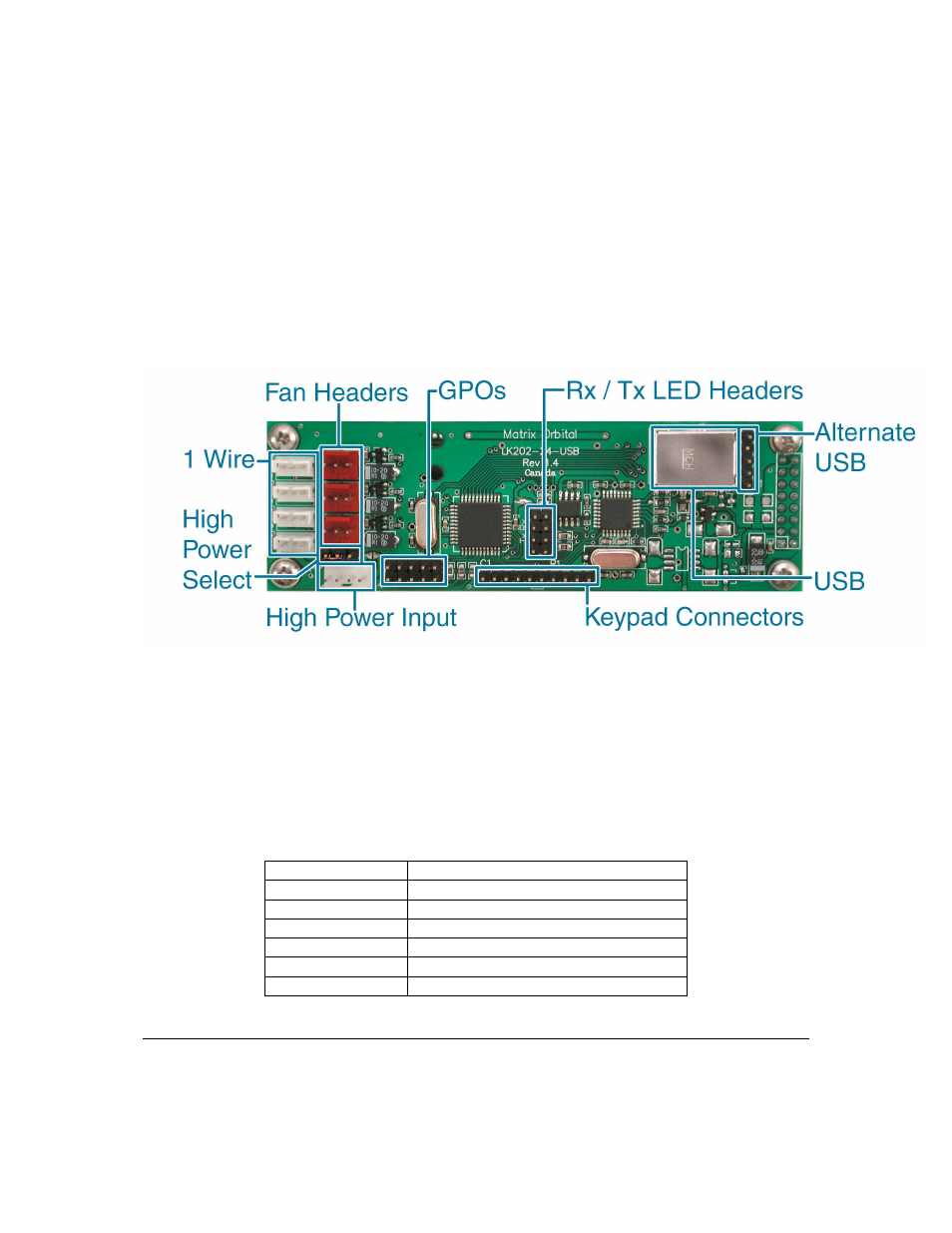

Figure 2: Electrical Connections
Table 1: Connectors & Functions
Connector
Function
14 Pin dual header
General Purpose Outputs and +5V Output
Rx / Tx
Receive and Transmit LED outputs
10 Pin header
Keypad
USB
Communication / Power
Alt. USB
Alternate USB / Power Header
4 Pin White Header
Optional High Power GPO Power Input
Matrix Orbital
LK202-24-USB
4
