Matrix Orbital LK202-24-USB User Manual
Page 11
Table 4: USB ID
VID 0403
PID
Description
FA00
USB 2 Serial Communication
FA01
MX2 / MX3
FA02
MX4 / MX5
FA03
LK / VK202-24-USB
FA04
LK / VK204-24-USB
2.1.3 Alternate USB Communications

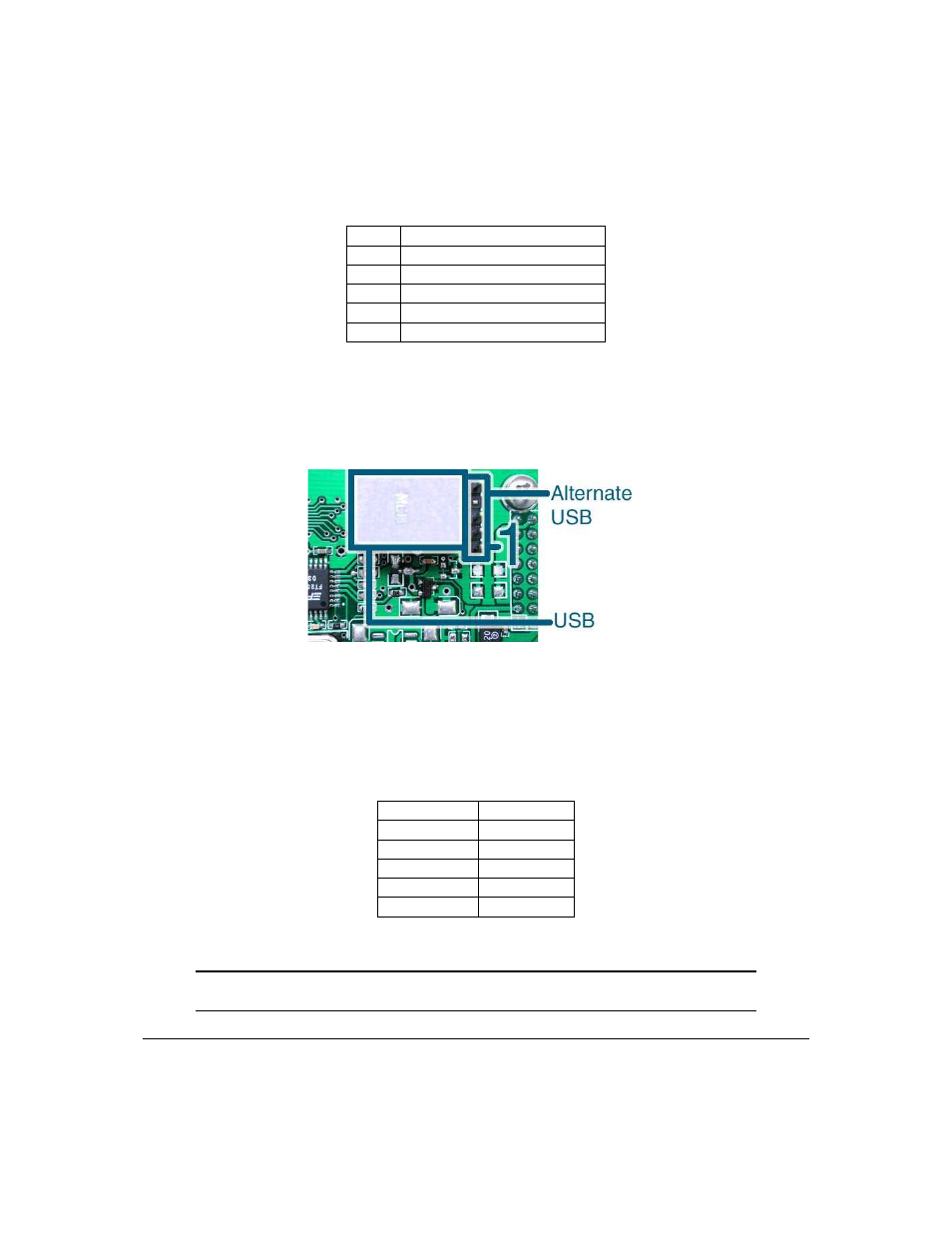

Figure 5: USB & Alternate USB
Table 5: Connector Pinout
Pin Number
Description
5
Ground
4
Not Used
3
D+
2
D-
1
+5V
NOTE Please verify pinout with motherboard manuals.
Matrix Orbital
LK202-24-USB
7
