USB Module

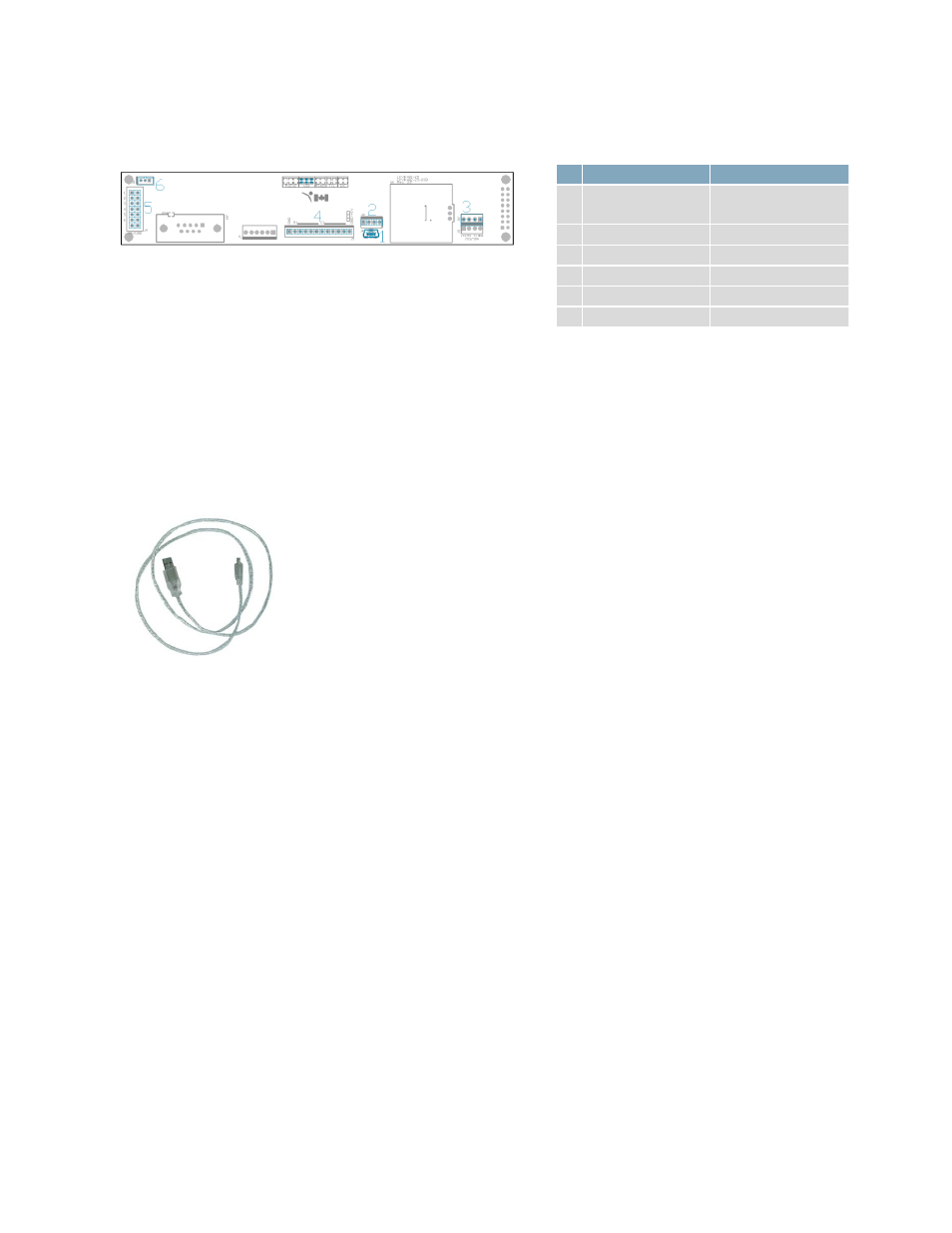

Figure 5: USB Connections
Table 2: Standard Headers
# Header Mate
1 Mini USB
EXTMUSB3FT/
INTMUSB3FT
2 Alternate USB None Offered
3 Alternate Power PCS
4 Keypad KPP4x4
5 GPO None Offered
6 Dallas One-Wire Temperature Probe
The LK402-25-USB offers a single USB interface supplying an easy connection to a host computer. The
simple and widely available protocol can be accessed using the on board mini B style USB connector as
outlined in the USB Connections section.
Recommended Parts
Figure 6: External Mini USB
Cable (EXTMUSB3FT)
The External Mini USB Cable is recommended for the LK402-25-USB display.
It will connect to the miniB style header on the unit and provide a
connection to a regular A style USB connector, commonly found on a PC.
