6
Quick Connect Guide
Standard Module

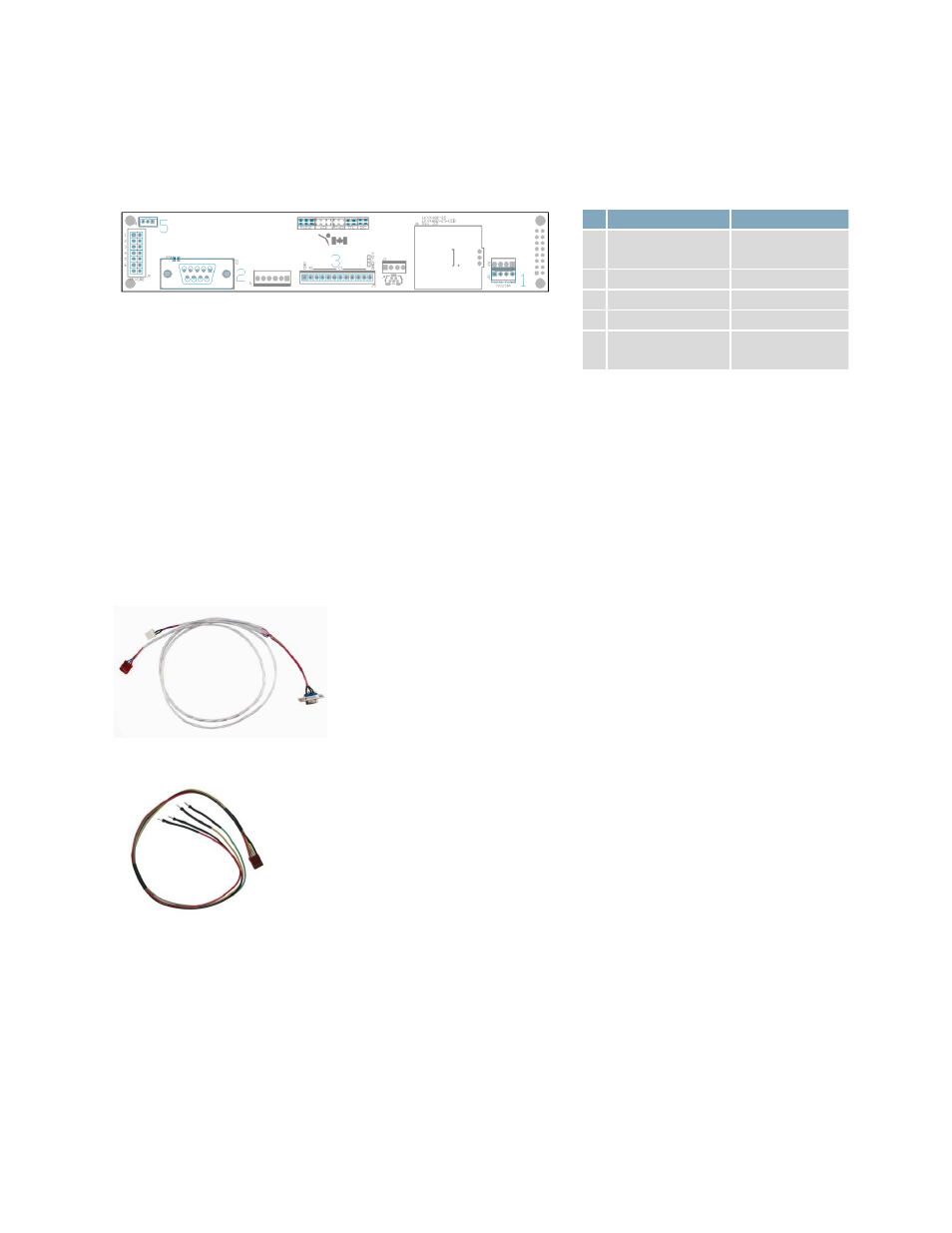

Figure 2: Standard Connections
Table 1: Standard Headers
# Header Mate
1
Communication/
Power
SCCPC5V/
BBC
2 DB9 CSS1FT/CSS4FT
3 Keypad KPP4x4
4 GPO None Offered
5
Dallas
One-Wire
Temperature
Probe
The standard version of the LK402-25 allows for user configuration of three common communication
protocols. First, the unit can communicate using serial protocol at either RS232 or TTL voltage levels.
Second, it can communicate using the Inter-Integrated Circuit, or I
2 C protocol. Connections for each
protocol can be accessed through the four pin Communication/Power Header as outlined in the Serial
Connections and I
2 C Connections sections below.
Recommended Parts
Figure 3: Communication/Power Cable
(SCCPC5V)
The most common cable choice for any standard Matrix Orbital
display, the Communication/Power Cable offers a simple connection
to the unit with familiar interfaces. DB9 and floppy power headers
provide all necessary input to drive your display.
Figure 4: Breadboard Cable (BBC)
For a more flexible interface to the LK402-25, a Breadboard Cable
may be used. This provides a simple four wire connection that is
popular among developers for its ease of use in a breadboard
environment.
