SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
ITEM
QTY.
PART
NO.
PER ASSY.
NUMBER
DESCRIPTION
1
1
Final Assembly
2
1
603X002-01
Actuator (1000 psi unit)
2a
1
603X002-02
Actuator (3000 psi unit)
3
1
603X003-01
Lead Screw (1000 psi unit)
3a
1
603X003-02
Lead Screw (3000 psi unit)
4
1
603X004-01
Washer, Actuator
5
1
603X005-01
Body
6
1
603X006-01
Valve Body
7
1
603X007-01
End Cap
8
2
603X008-01
Guide Screw
9
3**
854X050-01
Pipe Plug
10
2**
605X003-09
Socket Head Screw (valve)
11
8
605X004-05
Socket Head Screw
12
1
605X005-01
Washer
13
2
607A001-02
O-Ring
14
3
607X001-04
O-Ring
15
3
607X001-05
O-Ring
16
1*
607X001-06
O-Ring
17
1
607X001-08
O-Ring (1000 psi unit)
17a
1
607X001-07
O-Ring (3000 psi unIt)
18
1
607A002-02
Back-up Ring
19
2
607X002-05
Back-up Ring
20
1
607X006-01
Retaining Ring
21
1
609X005-01
Spool Valve
22
1
609X006-01
Retainer Valve
23
1
614X003-01
Piston (1000 psi unit)
23a
1
614X003-02
Piston (3000 psi unit)
24
1
618X004-01
Label, Valve Control
25
1
618X005-03
Label (1000 psi unit)
25a
1
618X005-04
Label (3000 psi unit)
26
1
619X001-02
Knob, Adjustment
27
1
619X002-01
Knob, Balance Valve
28
1
620X001-01
Bearing, Ball Thrust
29
1**
617X006-01
Mounting Kit, Panel
30
1**
621X001-02
Table Mount Bracket (optional)
31
1
610X002-01
Sleeve (3000 psi unit)

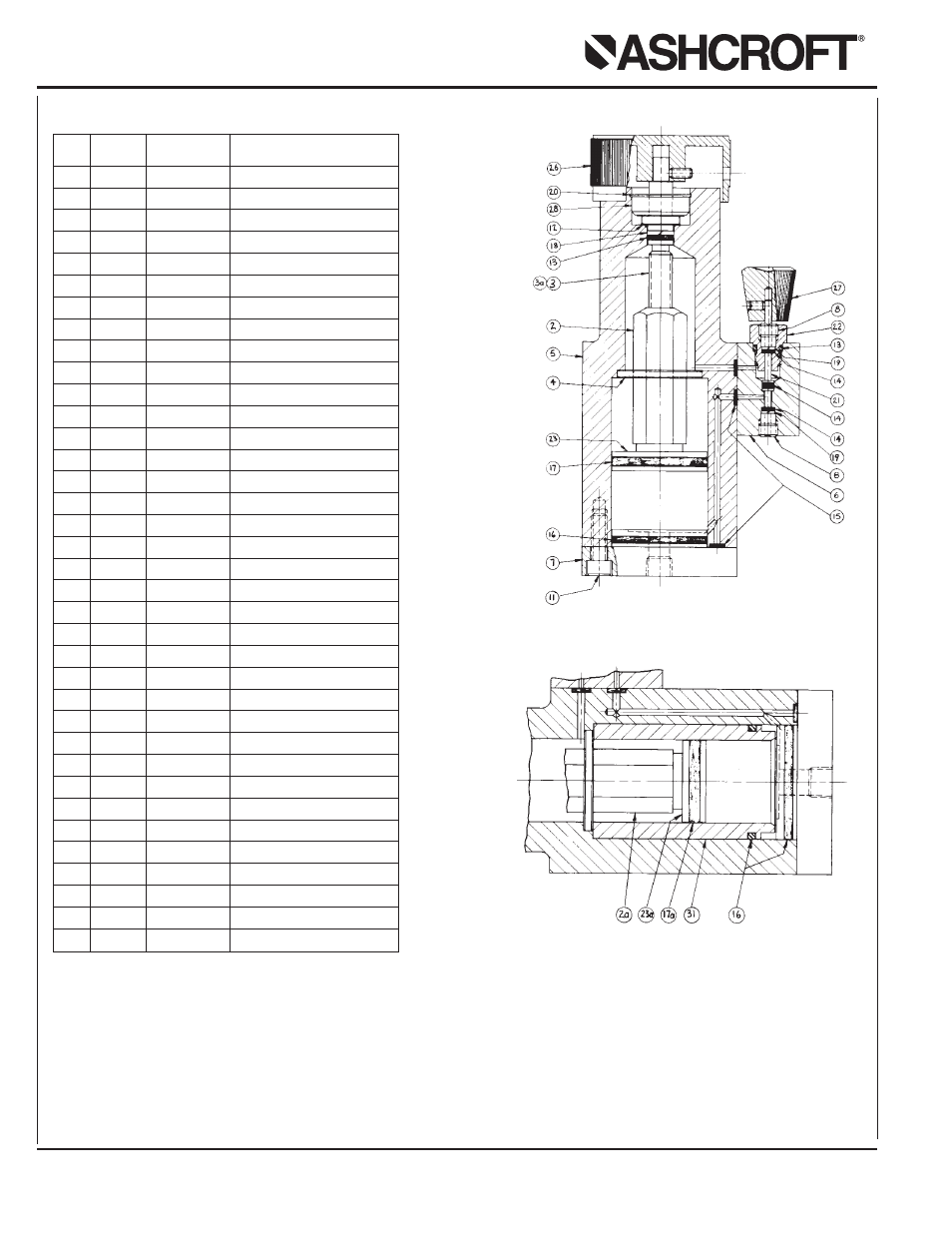

PARTS LIST
*
*Quantity is 2 in model AVC-3000.
**Not shown.
Model AVC-1000 and 3000 Pressure Volume Controllers
