11. SwITCh OPerATION – hYSTereSIS/DeADbAND

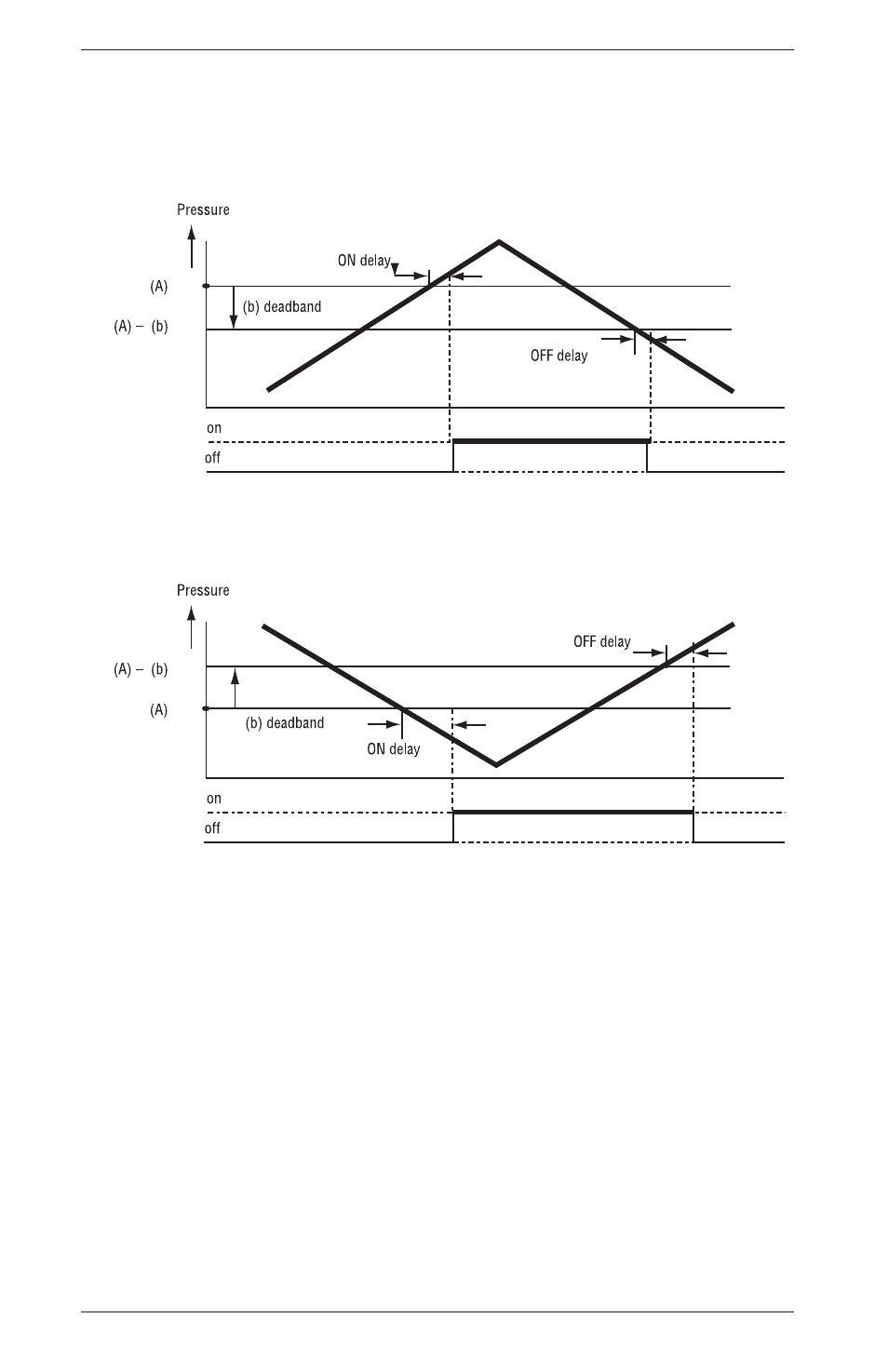

Setting the upper limit.

This is the mode in which the switch operates with the setting value (A) as the upper limit. The
upper limit setting is determined when you select a positive number (including 0) for setting
value (b).

Setting the lower limit.

This is the mode in which the switch operates with the setting value (A) as the lower limit. The
lower limit setting is determined when you select a negative number for setting value (b).
