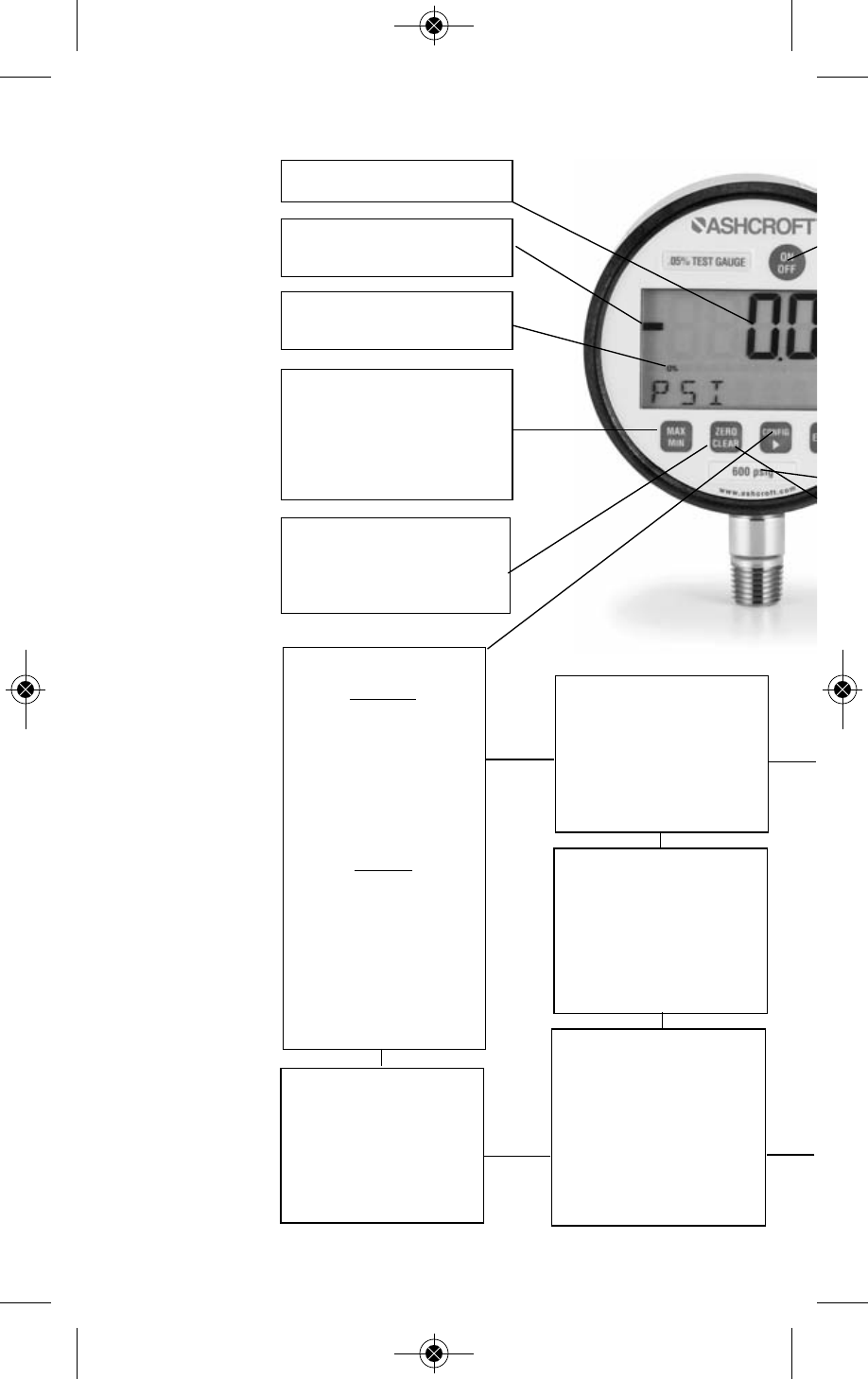

Bar graph
% of full scale
Flashing display when unit
pressured below zero
Press to indicate minimum
or maximum pressure
gauge has measured
Press again to return to
pressure units
While in max or min mode,
press to clear minimum or
maximum displayed values
UNITS (Pressure)
ENGLISH
PSI
INHG
INH2O
with Temperature
(Options: 60°F,
4°C, 20°C)
FTSW
METRIC
BAR
MBAR
KPA
MPA
mmHG
CMH2O
mmH2O
KG/CM2
UPDATE RATE
(Pressure measurement
per second)
10x*
5x
2x
1x
BACKLITE
(Off options)
ON/OFF*
10 SEC
30 SEC
1 MIN
5 MIN
LANGUAGE(s)
English*
French
Spanish
German
Italian
Portuguese
Dutch
DAMPING
(averages gauge reading
None*
AVG 2
AVG 4
AVG 6
AVG 8
.66˝ high display, 5 digit
