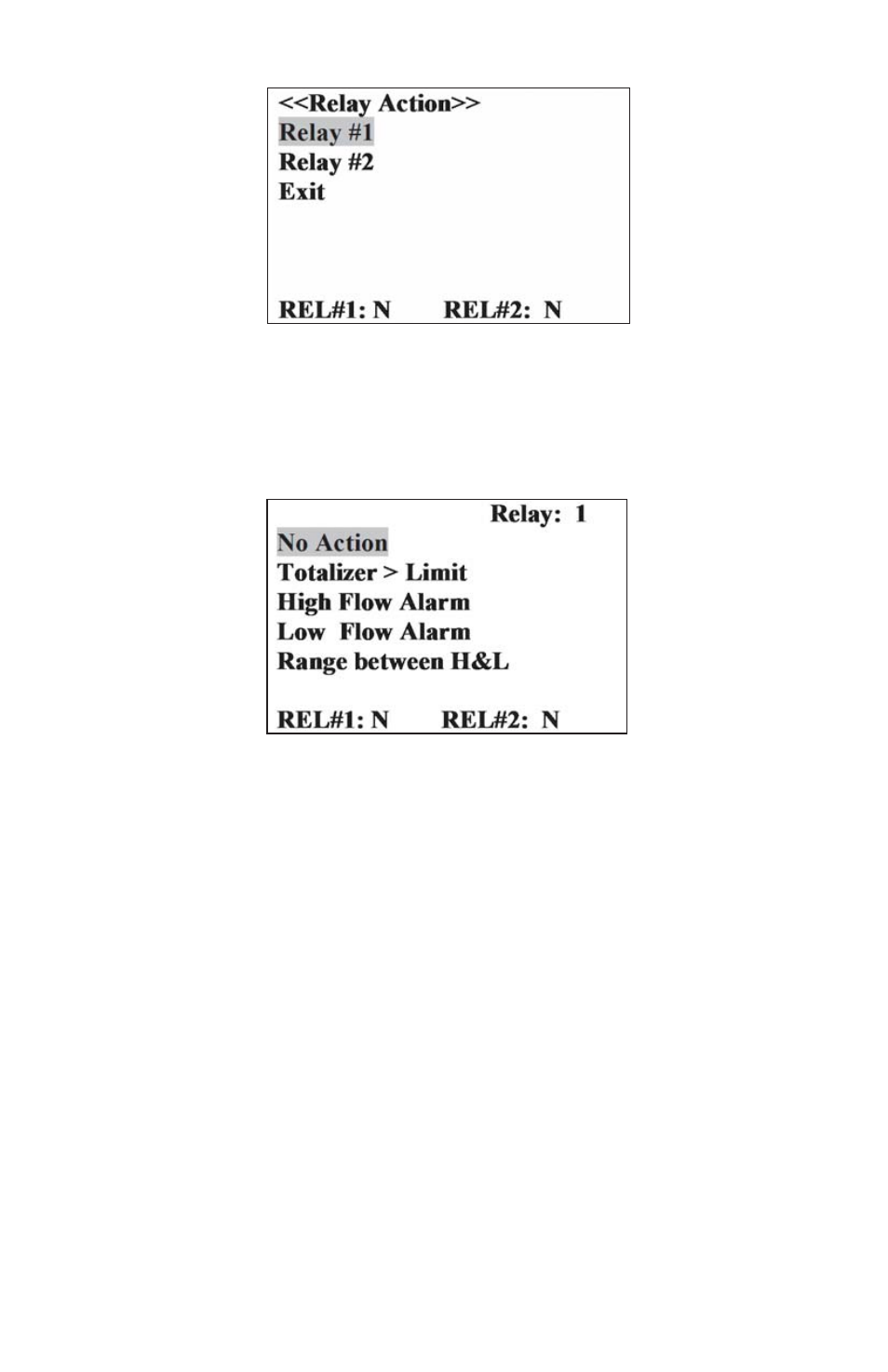

Figure b-15, Relay Assignment Screen
The user selects a Relay by scrolling up/down the list of available Relays until the
desired Relay is highlighted and then presses the (
u) [Enter] button. The follow-
ing screen will appear:
Figure b-16, Relay #1 Action Settings
The user can configure the Relay action from 9 different options:
No Action : (N) No assignment (relay is not assigned to any events).
Totalizer > Limit : (T) Totalizer reached set limit volume.
High Flow Alarm : (H) High Flow Alarm condition.
Low Flow Alarm : (L) Low Flow Alarm condition.
Range between H&L : (R) Range between High and Low Flow Alarm condition.
High Temp. Alarm
: (A) High Temperature Alarm condition.
Low Temp. Alarm : (B) Low Temperature Alarm condition.
High Pres. Alarm : (C) High Pressure Alarm condition.
Low Pres. Alarm : (D) Low Pressure Alarm condition.
Exit
The user selects an Action by scrolling up/down the list of available options until
the desired option is highlighted and then presses the (
u) [Enter] button.
