Note: Before enabling the Totalizer, ensure that all totalizer settings
are configured properly. Totalizer Start values have to be entered in
%F.S. engineering unit. Totalizer will not totalize until the flow rate
becomes equal or more than the Totalizer Start value. Totalizer Stop
values have to be entered in volume / mass based engineering units.
Totalizer action conditions become true, when the totalizer reading and preset
"Stop at Total" volumes are equal.
From the Main Menu, the user would traverse the menu tree until reaching the
"Totalizer" menu. The following screen will appear:

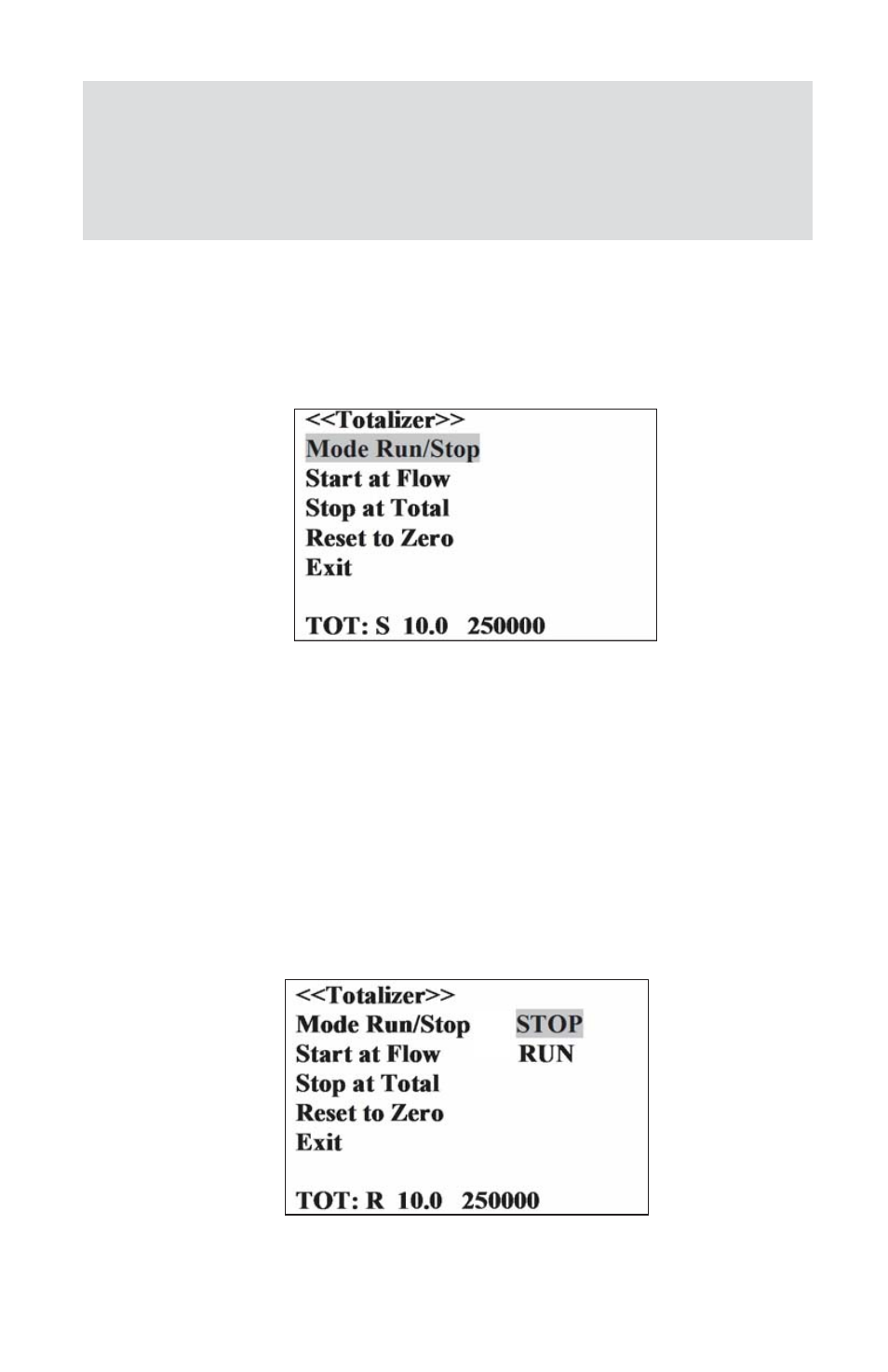

Figure b-9, Totalizer Settings
Mode Run/Stop - Allows the user to Enable/Disable Totalizer
Start at Flow
- Allows the user to enter Gas flow rate in %F.S. at which
Totalizer starts integrating of the gas flow.
Stop at Total
- Allows the user to enter Totalizer Limit Volume when user
defined action will occur.
Reset to Zero
- Allows the user to reset Totalizer reading to zero.
Use (
p) or (q) buttons to highlight "Mode Run/Stop" option and press the (u)
[Enter] button. The following screen will appear:
Figure b-10, Totalizer Settings (Stop/Run)
,
’
