Cleanup
Start Before you begin:
When cleaning, use the appropriate cleaning
solution (warm, soapy water for latex materials;
mineral spirits for oil-based materials)
IMporTanT: Never clean nozzle or air
holes in the spray gun with sharp metal
objects. Do not use solvents or lubricants
containing silicone.
Special cleanup instructions for
use with flammable solvents (must
have a flashpoint above 70ºF
(21ºC):
• Always flush spray gun outside.
• Area must be free of flammable vapors.
• Cleaning area must be well-ventilated.
• Do not submerge turbine!

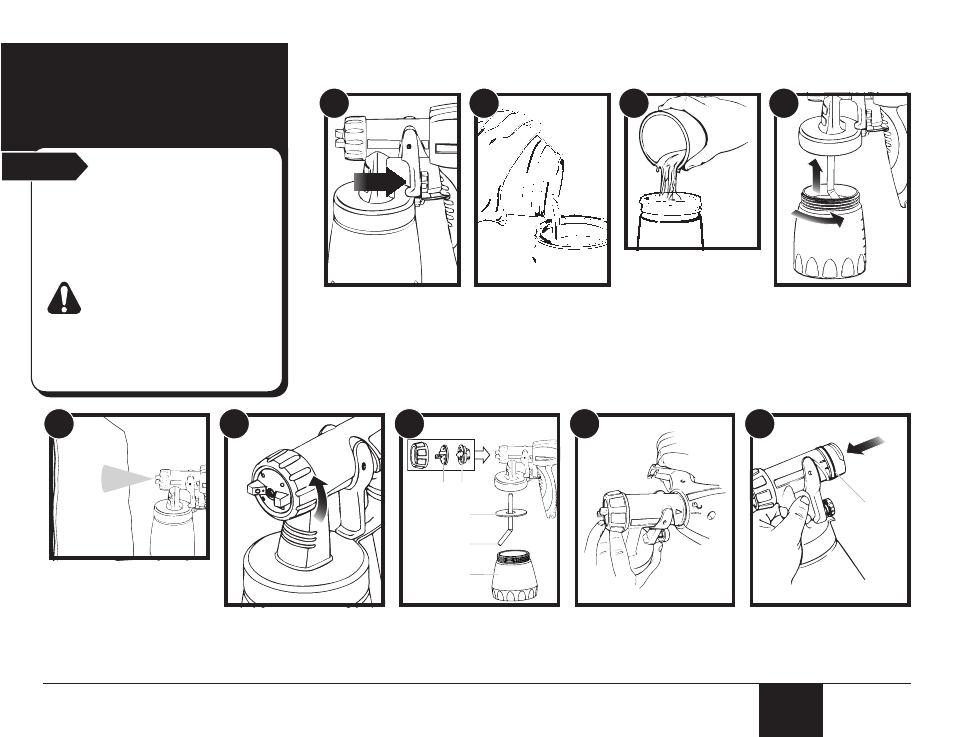

1. Turn the turbine OFF.
Trigger the spray gun
so that the material
inside the spray gun
flows back into the
container.
5. Turn the turbine ON. Spray
the solution through the gun
for two seconds in a safe
area. Spray again for two
seconds.
Turn off the turbine, and
trigger the spray gun so
that the material inside the
spray gun flows back into the
container.
6. Wipe the exterior of the cup
and gun until clean.
Unscrew the nut and remove
the air cap and nozzle.
7. Clean the container (a),
container seal (b), suction
tube (c), air cap (d) and
nozzle (e) with a cleaning
brush and the appropriate
cleaning solution.
8. Push the tab below the
trigger, twist and separate
the spray gun from the
turbine.
9. Clean the rear of the spray
gun (a) with the appropriate
cleaning solution. Use a
thin layer of petroleum jelly
to lubricate the O-ring (b).
Reassemble spray gun.
2. Unscrew the container.
Empty any remaining
material back into the
material container.
3. Pour a small amount of
the appropriate cleaning
solution into the cup
(warm, soapy water for
latex materials; mineral
spirits for oil-based
materials). Clean cup
and properly dispose of
cleaning solution.
Refill the cup with nEw
cleaning solution.
4. Attach the cup to the
gun and plug in the
sprayer.
1
5 6
(a)
(b)
(d) (e)
(c)
7 8
(a)
(b)
9
2 3 4
PULL
