English 4
Assembly
Start Before you begin:
nEVEr point the spray gun at any
part of the body.
Questions?
Call Wagner Technical Service at:
1-800-328-8251
Register your product online at:
www.wagnerspraytech.com

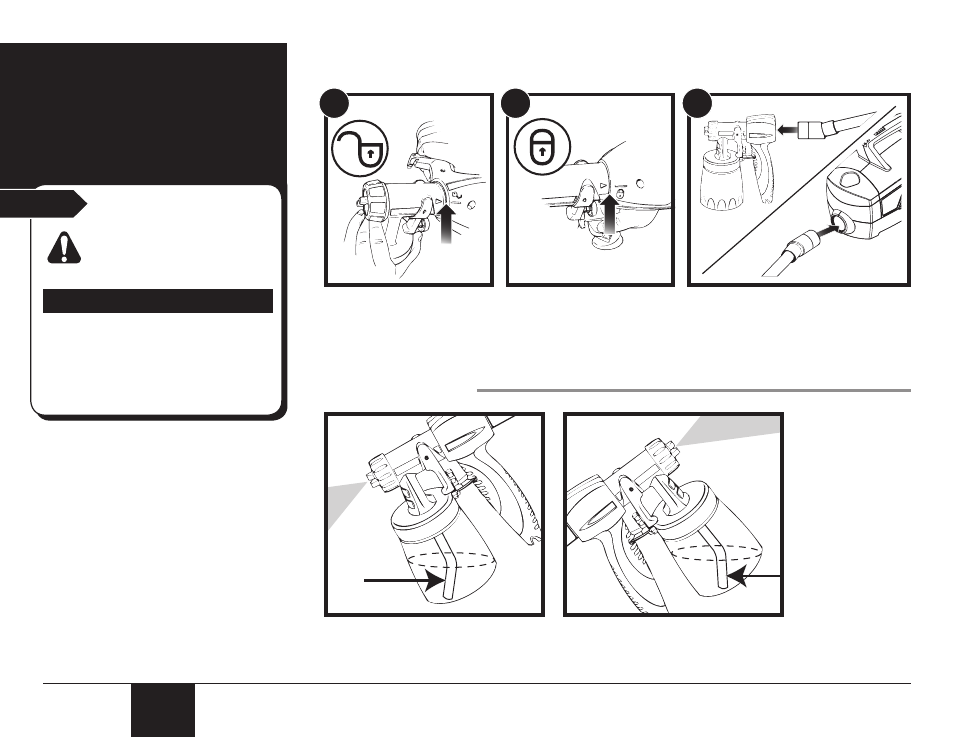

1. Align the arrow on the spray
gun with the “unlock” symbol on
the turbine.
2. Insert and twist the spray gun
into the turbine toward the
“lock” symbol on the turbine.
The tab below the trigger will
lock the two pieces into place.
3. Insert the air hose tightly into the
connections onto the spray gun (a) and
the turbine (b). The connections can be
positioned as desired.
Aligning the suction tube
Note: By pointing the
suction tube in the
proper direction, you
will not have to refill the
container as often.
If you are going to be spraying in a
downward direction, the angled end of the
suction tube should be pointing toward the
front of the gun.
If you are going to be spraying in an upward
direction, the angled end of the suction tube
should be pointing toward the rear of the
gun.
1 2 3
(a)
(b)
