TOOLS REQUIRED:
Screwdriver, flathead
7/16” Wrench
3/8” Wrench
Rubber Mallet

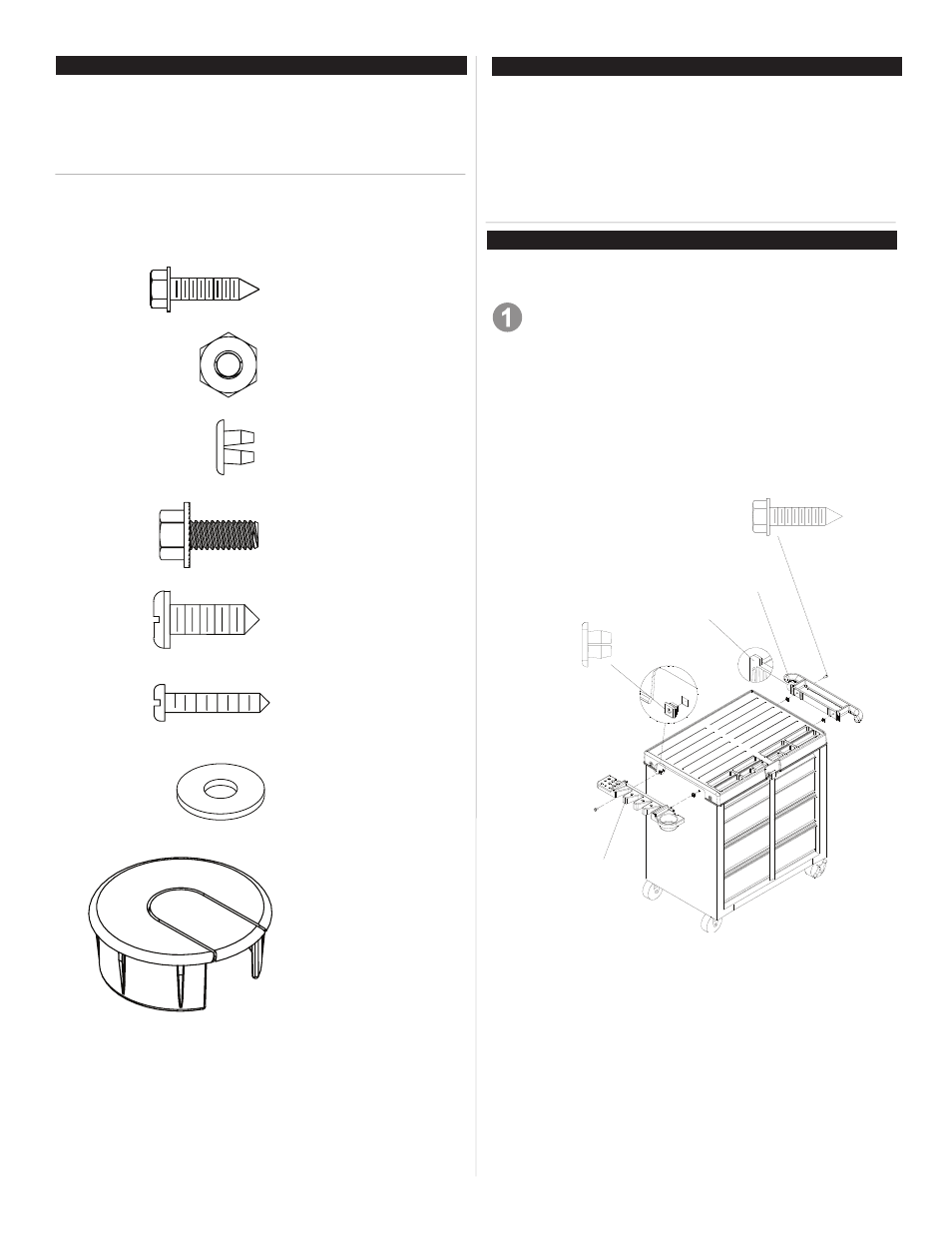

HARDWARE REQUIRED:
HARDWARE
Project Center Handle
Literature Tool Holder
Hardware bag Caster pack
• Insert (4) Grommets in (4) square mounting holes (two in
each side). May need to tap into place with a hammer.
• Install the handle on the same end as the swivel casters
by inserting the tabs under the plastic top.
• Attach with (2) #14 - 10 x 5/8 screws and wrench-tighten.
Do not overtighten.
• Attach the tool holder to the other end of the unit in the
same manner.
TOOL HOLDER AND HANDLE INSTALLATION
NOTE: Not all assembly instructions will apply to your
model.
2
CARTON CONTENTS HARDWARE
ASSEMBLY
5/16-18 Hex Lock Nut (Qty: 56)
Grommet (Qty: 4)
1/4 - 20 x 5/8 Screw (Qty: 16)
HARDWARE MAY VARY DEPENDING ON PROJECT
CENTER MODEL
#14 - 10 x 5/8 Screw (Qty: 4)
1/4 - 20 Nut (Qty: 16)
Screw
(4)
Handle
Grommet
(4)
Tab
Tool
holder
#14 - 10 x 3/4 Screw (Qty: 7)
#8 x 1.25 Screw (Qty: 4)
1/4 - Washer (Qty: 7)
Plug (Qty: 1)
