Half Card Port Powered Insertion Reader
10
MOUNTING

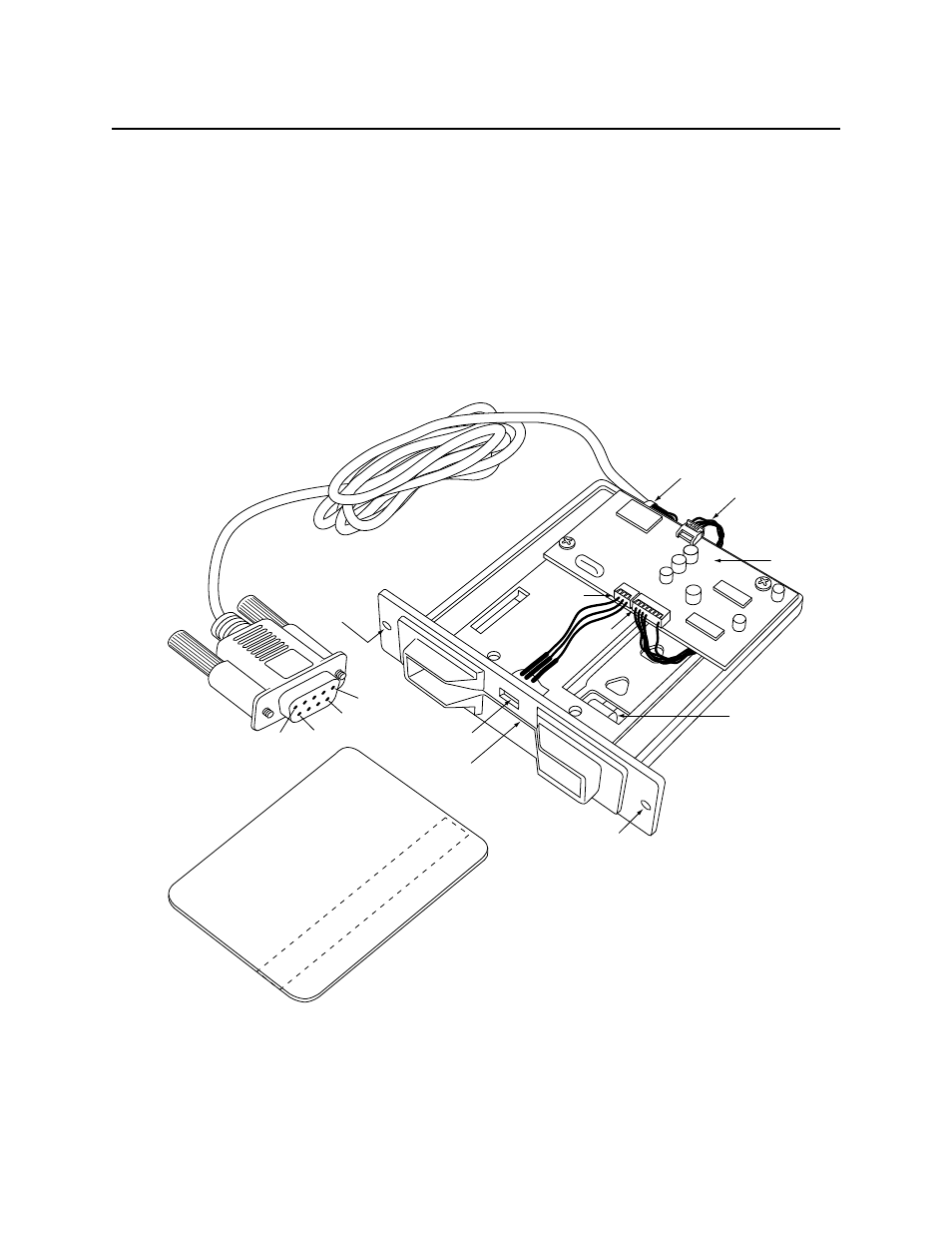

Figure 2-1 shows the board layout orientation as viewed from the top. The Reader is attached to
the customer plate with two mounting screws. There are three levels on the front face: the
bracket with the mounting holes; the beveled race above the mounting bracket; and the card
guide brackets. The unit is mounted to the inside of the user’s surface. The mounting bracket is
not seen by the customer, and the beveled race and area above it and the card guide brackets are
visible to the customer.
Dimensions and tolerances are shown in Section 1, Figure 1-2.
Pin 1
Pin 1
Pin 1
PCB
Read Head
Tie Wrap
J4
J1
J3
Pin 1
LED
Card Slot
Mounting
Hole
Mounting
Hole
Pin 5
Pin 6
PC Connector
Card With
Stripe Down
Pin 9
Figure 2-1. Reader Layout - Top
For the LED shown in the illustration refer to Section 3, Table 3-2, for setting the color options.
