Accessing SAM Module
If the contactless module is installed, it must be removed temporarily in order to access the SAM
module. The two screws holding the contactless module onto the IntelliStripe 320 circuit board
will have to be removed in order to reach the SAM module which is located under the
contactless module (see Figure 15).

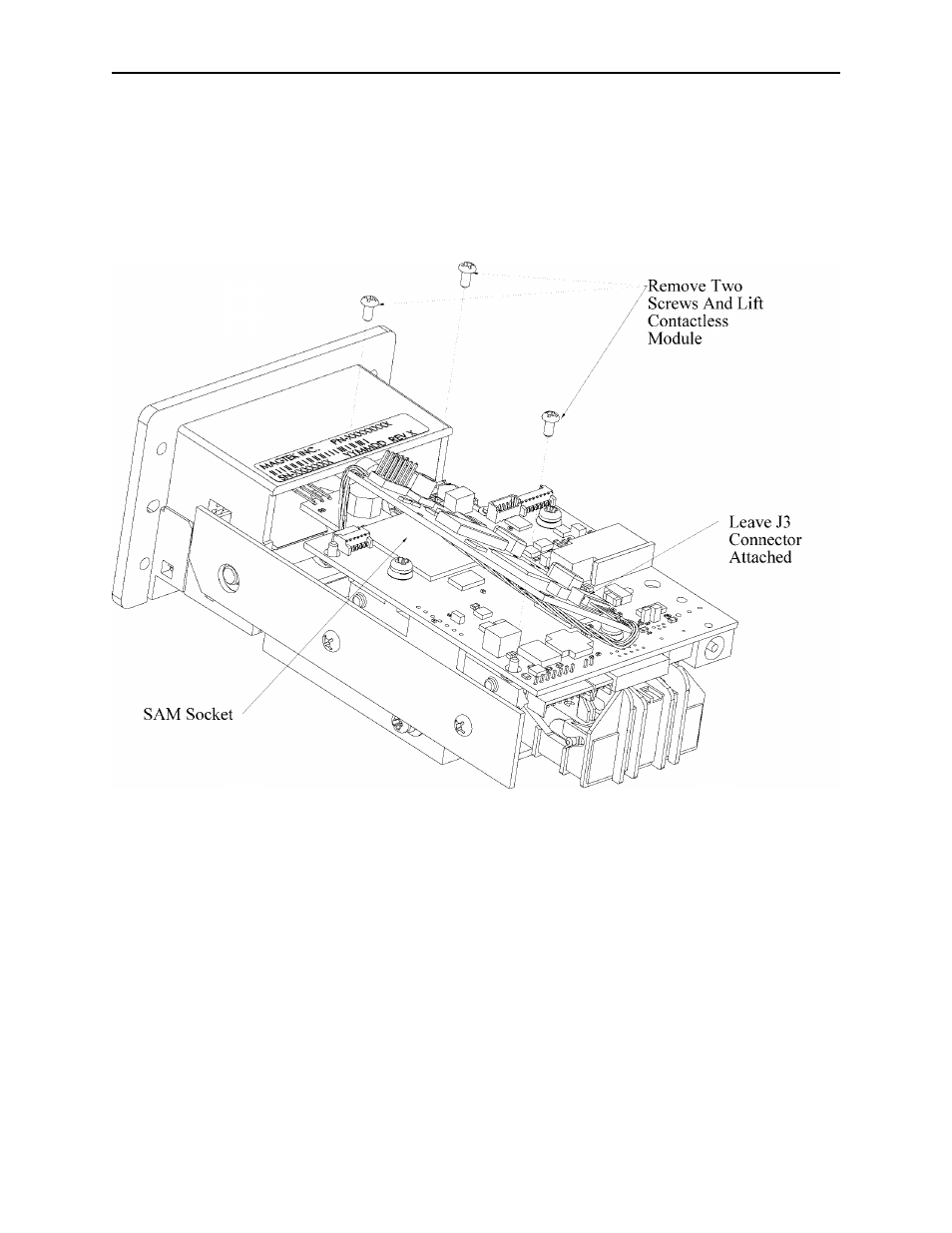

Figure 15. Removing Contactless Module to Access SAM Socket
