Excella MICR Check Reader
16
Single Check – Manual Feed
For single checks perform the following steps:
1. With the front of the check facing the center of the unit and the MICR line closer to
the bottom, feed the check into the Manual Single Feed Input Slot, as shown in
Figure 3-1.

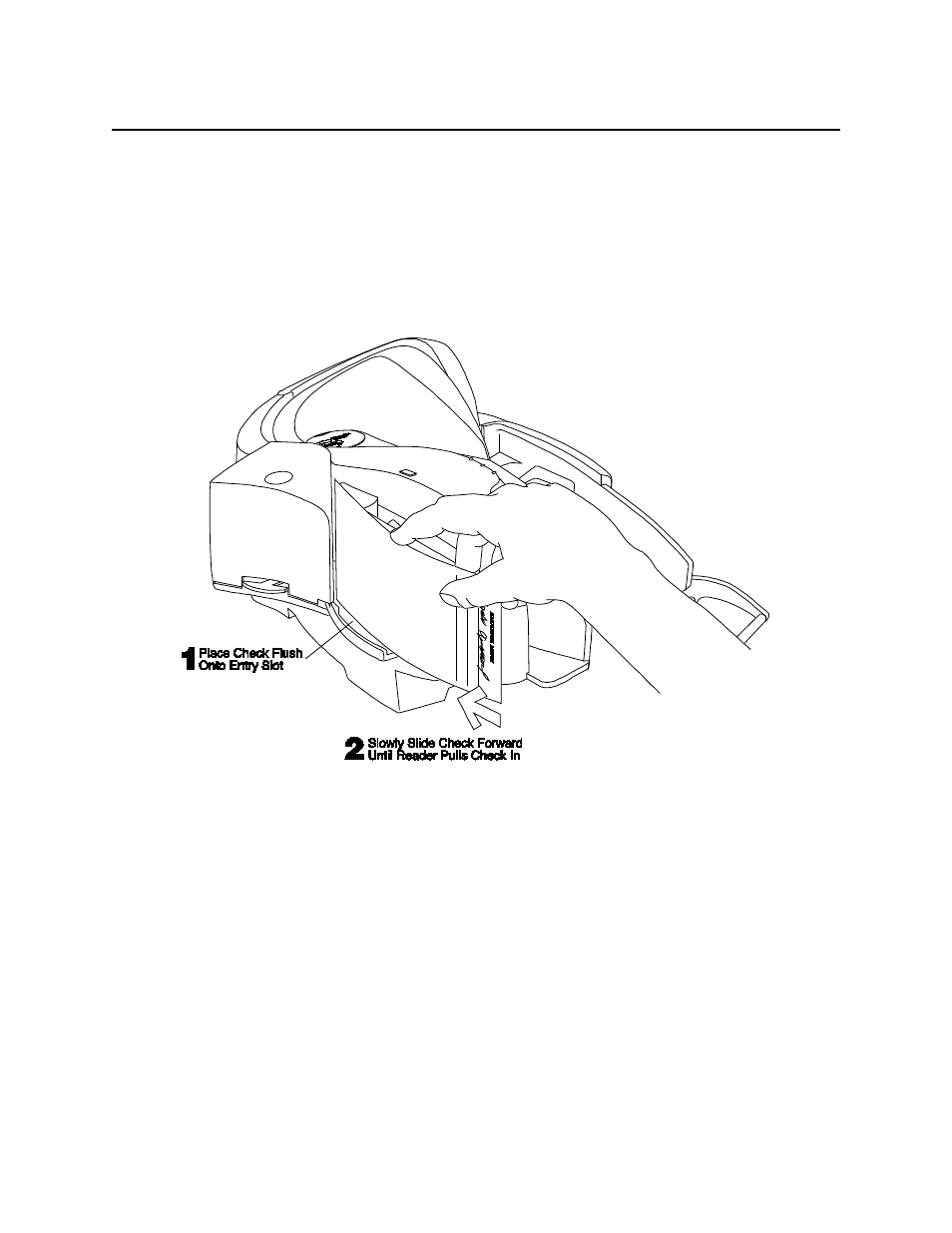

Figure 3-1. Check Orientation - Insertion
2. The check then winds around the Printer/Cartridge where a programmable
endorsement is printed horizontally on the check.
3. The face and back of the check are then scanned at the two Scan Bars.
4. Next, the Check Deflector guides the check into the Exit Hopper.
