Section 2. installation, Requirements, Device description – MagTek Excella, MICR Check Reader99875310 User Manual
Page 11

5
SECTION 2. INSTALLATION
The installation for the Excella Check Reader is described below.
REQUIREMENTS
The following items are required for the Installation:
•
Excella, Check Reader and Dual-Sided Scanner, P/N 22310001
•
USB Interface Cable (see Cabling below) and/or
•
Ethernet Interface Cable (see Cabling below)
•
Power Supply, 24 VDC Regulated, Switcher, 5.5 x 2.1 mm, Right Angle Plug, P/N 64300098
(see Cabling below)
•
Customer Supplied Checks or MagTek’s Sample Checks, P/N 96530005
DEVICE DESCRIPTION

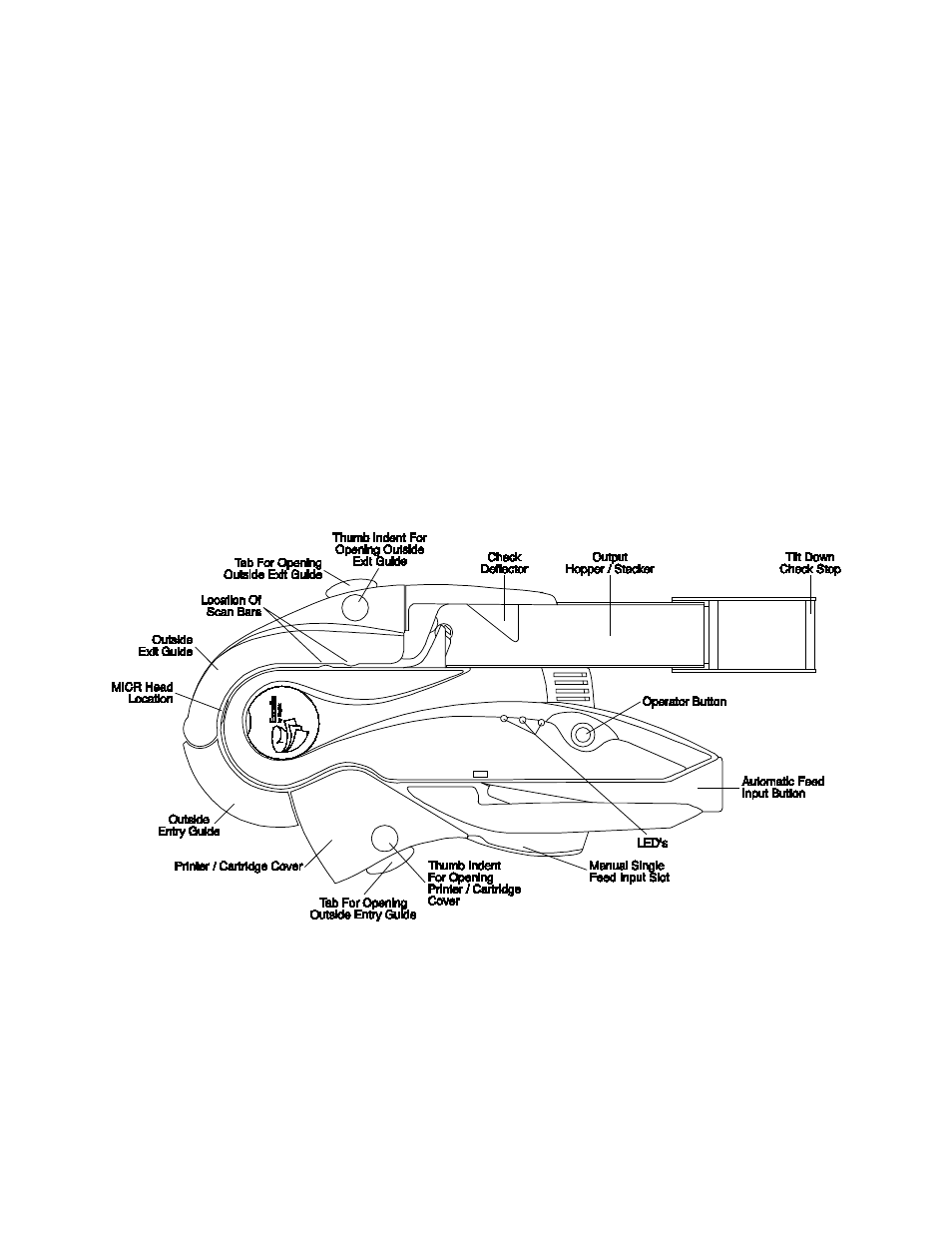

Figure 2-1 shows the top view of Excella and lists features used for installation and operation.
Figure 2-1. Top View, Excella Features
