Section 2. Installation
11
Figure 2-7. Cabling, USB, 4-pin, Right Angle, P/N 22310301
Table 2-1. USB Pin List
USB Cable Pin List
USB B Plug, Right Angle Signal Name USB A Plug
1 5V 1
2 - Data 2
3 + Data 3
4 Gnd 4
Shell (Braid Shield) Shell (Braid Shield)

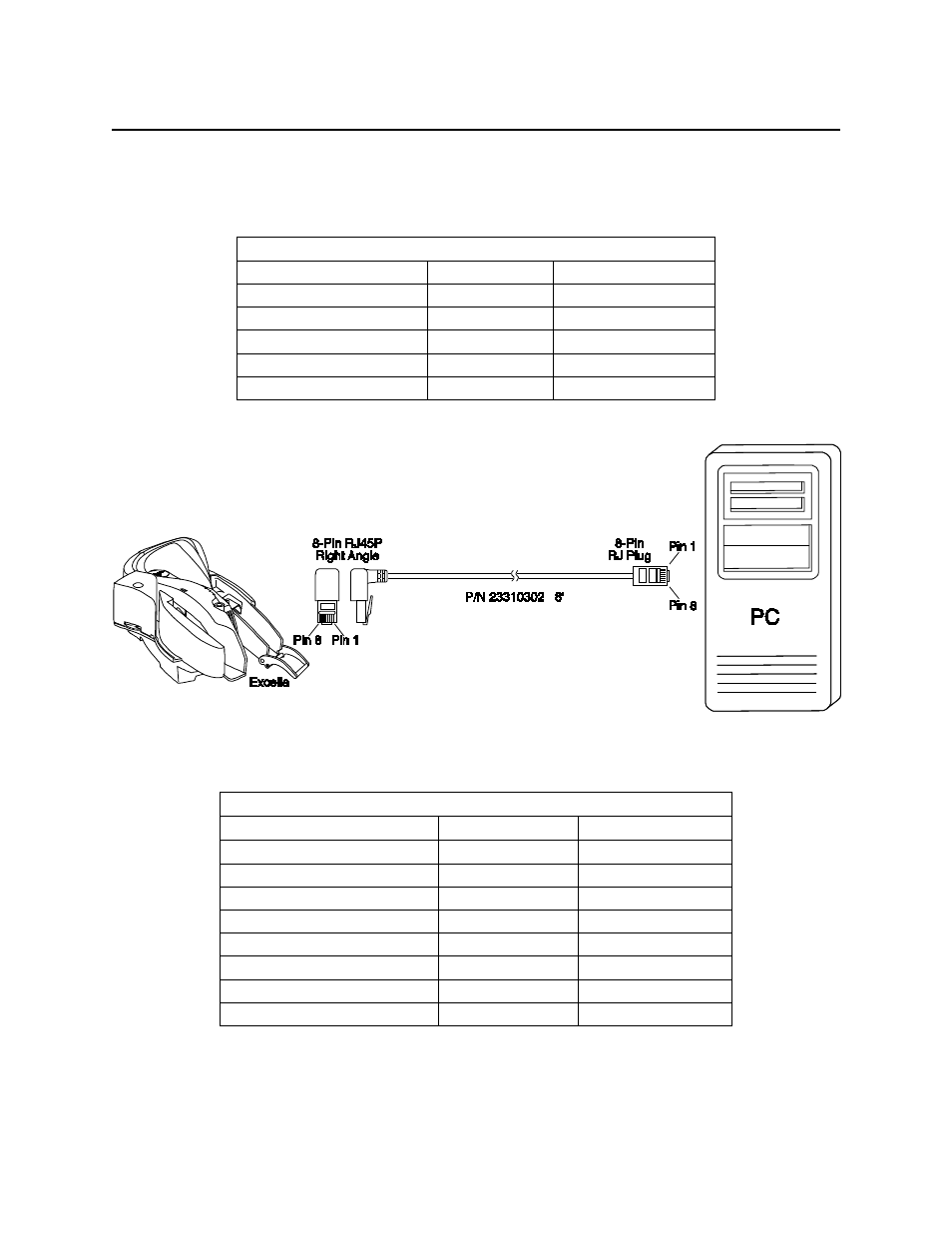

Figure 2-8. Cabling, Ethernet, 8-pin RJ45P, Right Angle, P/N 22310302 or 22310304
Table 2-2. Ethernet Cable Pin List, P/N 22310302
Ethernet Pin List
8-pin RJ Plug, Right Angle Signal Name 8-Pin RJ Plug
1 Transmit + 1
2 Transmit - 2
3 Receive + 3
4 NC NC 4 NC
5 NC NC 5 NC
6 Receive - 6
7 NC NC 7 NC
8 NC NC 8 NC
NC = No Connection
