EN - English - I
nstruc
tions manual
MNVKDBH06789_0813_EN • 3

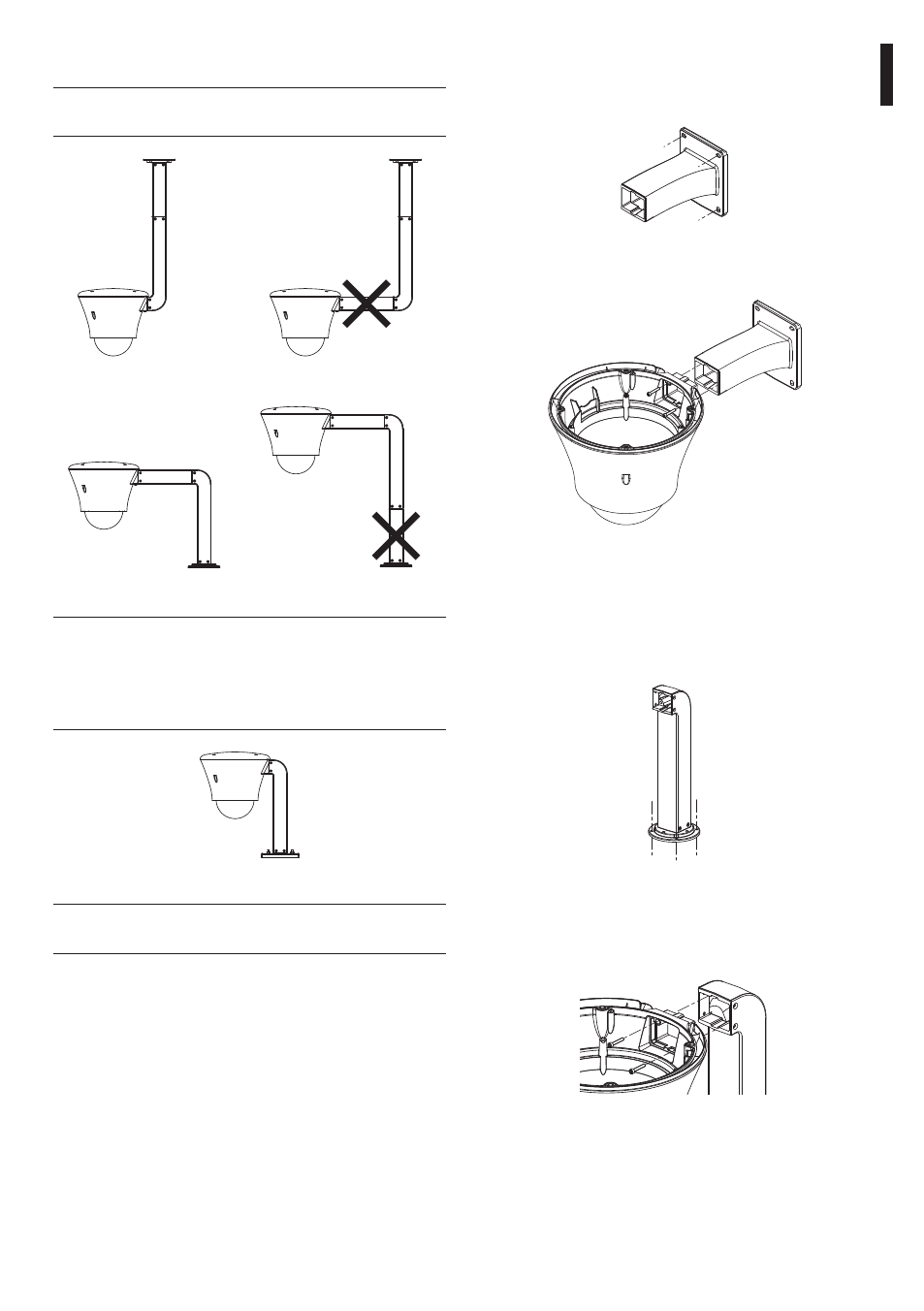

Assembly 6.1
DBH06 6.1.1
Fig. 4
Attach the bracket firmly at the chosen spot.
Fig. 5
Insert the housing body into the coupling seat
provided and fasten it down immediately using
the two screws supplied with the support.
DBH07 6.1.2
Fig. 6
Fix the bracket firmly in the desired spot, using the
holes in the circular base. Alternatively, you can use
holes with centre distance Ø 101.6mm or Ø140mm.
Fig. 7
Insert the housing body into the coupling seat
provided and fasten it down immediately using
the two screws supplied with the support.
Installing and assembling 6
Only specialised personnel should be h
allowed to install and assemble the device.
YES NO
Fig. 1
YES
NO
Fig. 2
The spacer DBH08 can only be used as an h
extension for installing the housing lower
down with the DBH07 ceiling version.
It can also be used as an outward facing
extension for the DBH07 parapet version.
Fig. 3
The DBH09 can only be used with h
the DBH07 parapet version.
