8 Technical data

8.1 General

Die cast aluminium body
Wavelengths: 850, 940nm
Beam patterns: 10°, 30°, 60°

8.2 Mechanical

Dimensions: 187x111x176mm (7.4x4.4x6.9in)
Unit weight: 1.5kg (3.3lb)

8.3 Electrical

Power supply: 24Vac, 12-24Vdc
Consumption: 30W
State of the art SMD LED
Adjustable built-in photocell for automatic activation

and deactivation

8.4 Environment

Indoor/Outdoor
Operating temperature: -50°C (-58°F)/+60°C (140°F)

(with illuminator on)
IP66/IP67, EN60529

8.5 Certifications

Electrical safety: EN60598
Photobiological safety of lamps and lamp systems:

EN62471
Electromagnetic compatibility: EN55022, Class A
Immunity: EN50130-4
FCC Part 15, Class A

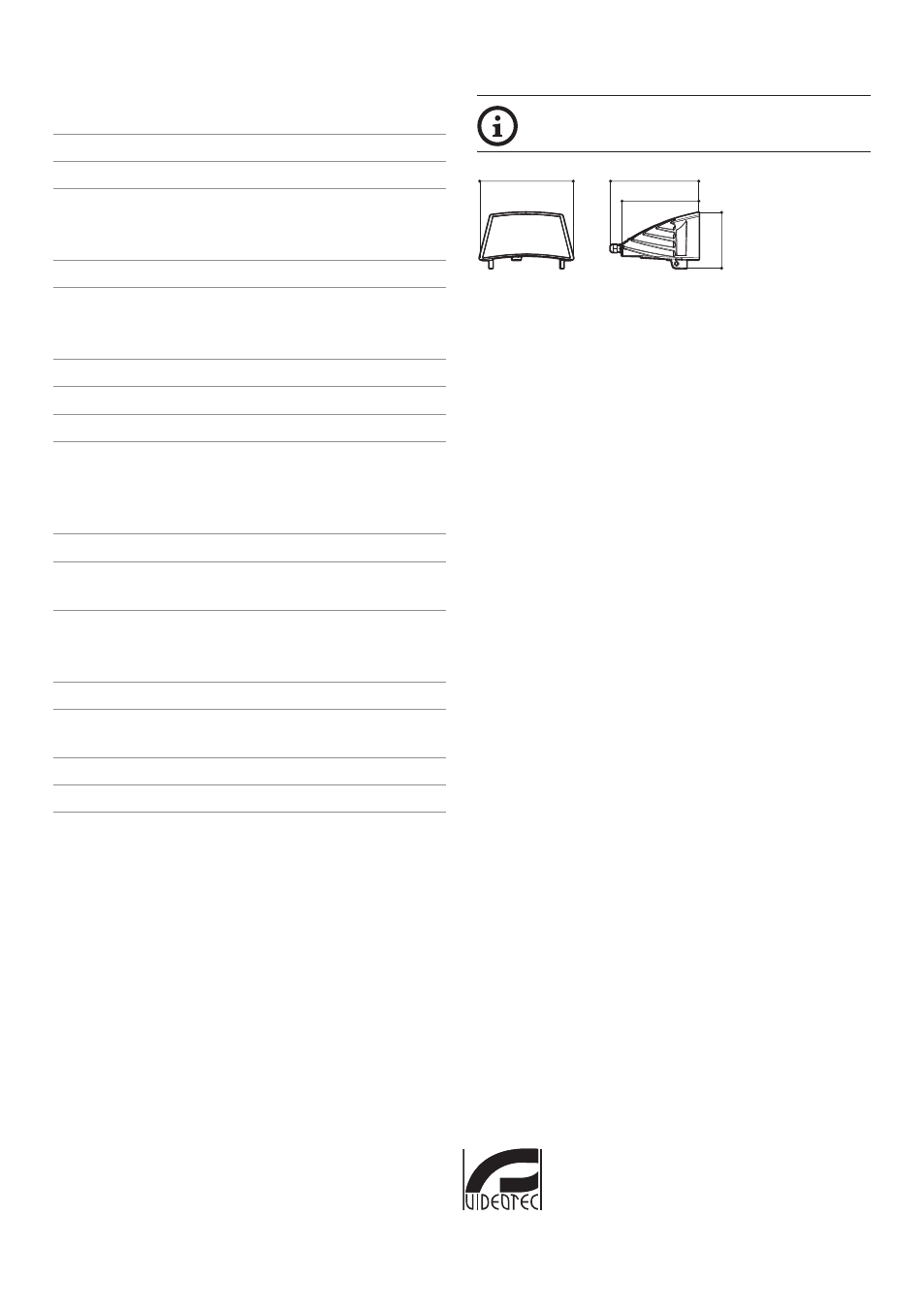

9 Technical drawings

The dimensions of the drawings are in

millimetres.

187

176

111

153

Fig. 2 UPTIRN.
