EN - English - I
nstruc
tions manual
3

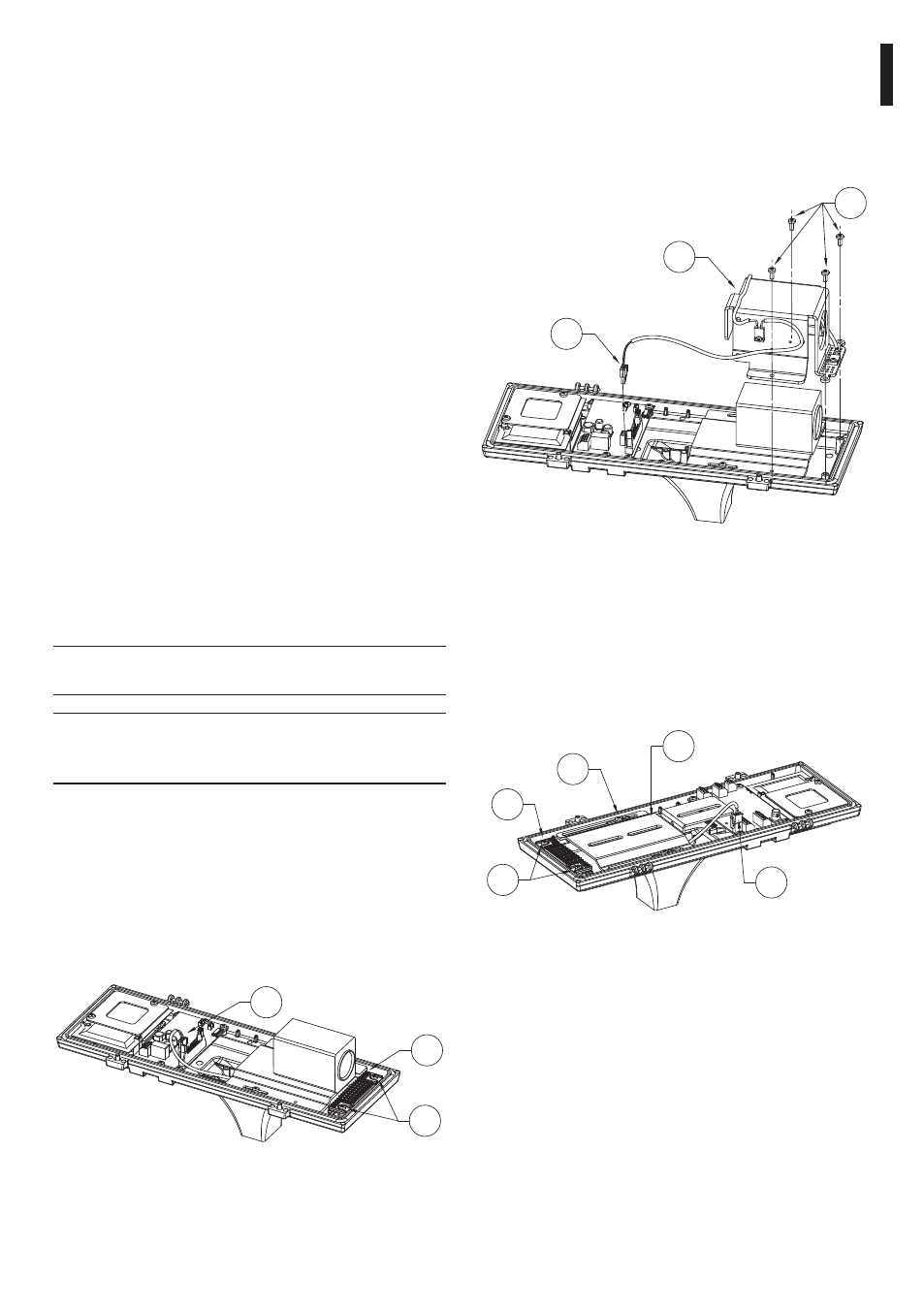

Dismantle the module from the slide, re-
assemble it on the new one supplied with
the kit and re-attach it to the housing.
Re-attach the new heater (01) to the
housing/slide using the supplied screws (02)
and insert the power supply connector (03).
03
01
02
Fig. 05
Kit for motorised lenses 6.1.2
Open the housing and remove the existing
heater (01), loosening the fastening screws
(02) and taking out the connector (03).
Take out the existing slide (04) by
loosening the fastening screws (05).
03
04
05
01
02
Fig. 06
Check the contents to make sure they correspond
with the list of materials as below:
UPTHT1:
1 heater kit •
1 slide •
2 M4 self-tapping screws •
4 M3 screws •
UPTHT2:
1 heater kit •
1 slide •
4 M4 self-tapping screws •
Safely disposing of 5.3
packaging material
The packaging material can all be recycled.
The installer technician will be responsible for
separating the material for disposal, and in
any case for compliance with the legislation
in force where the device is to be used.
Bear in mind that if the material has to be returned
due to a fault, using the original packaging
for its transport is strongly recommended.
Installing and assembling 6
Only specialised personnel should be h
allowed to install and assemble the device.
Take care when working with the l
heater PTC, the element can reach
very high temperatures.
Installation 6.1
Kit for SONY FCB980 – FCBEX1000 6.1.1
modules
Open the housing and remove the heater and
the existing slide (01), loosening the fastening
screws (02) and taking out the connector (03).
03
01
02
Fig. 04
