4-3: Assemblies and Parts Lists

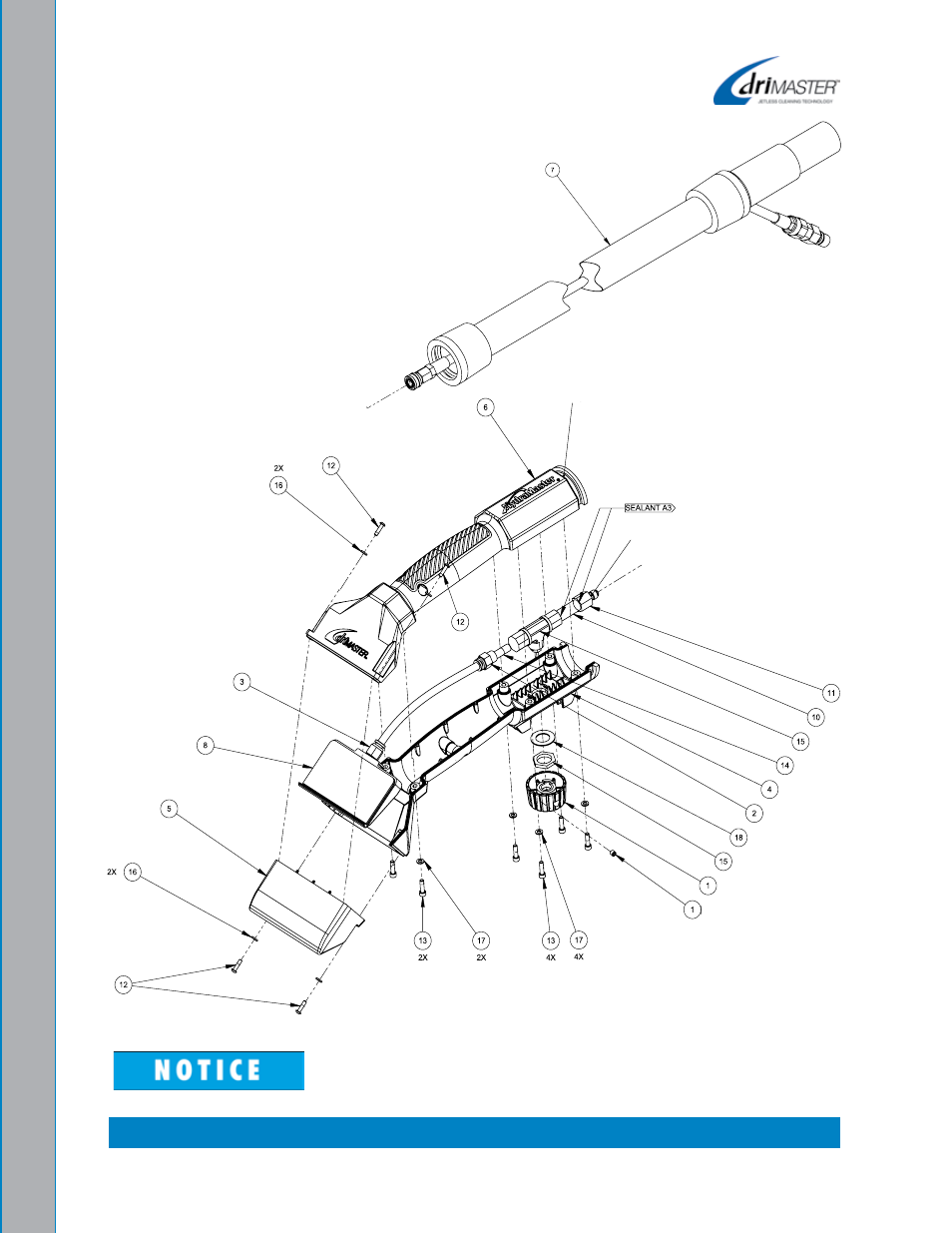

Figure 4-2. HiFlo Handpiece Assembly

000-163-220 Rev. D

See Figure 4-1 for adhesive/sealant material Information.

APPLY SUPER LUBE (P/N 000-087-020)

APPLY SUPER LUBE

(P/N 000-087-020)

APPLY LOCTITE 245

APPLY LOCTITE 245

APPLY

LOCTITE

22MS

APPLY LOCTITE 222MS

APPLY

LOCTITE

222MS

A

A
