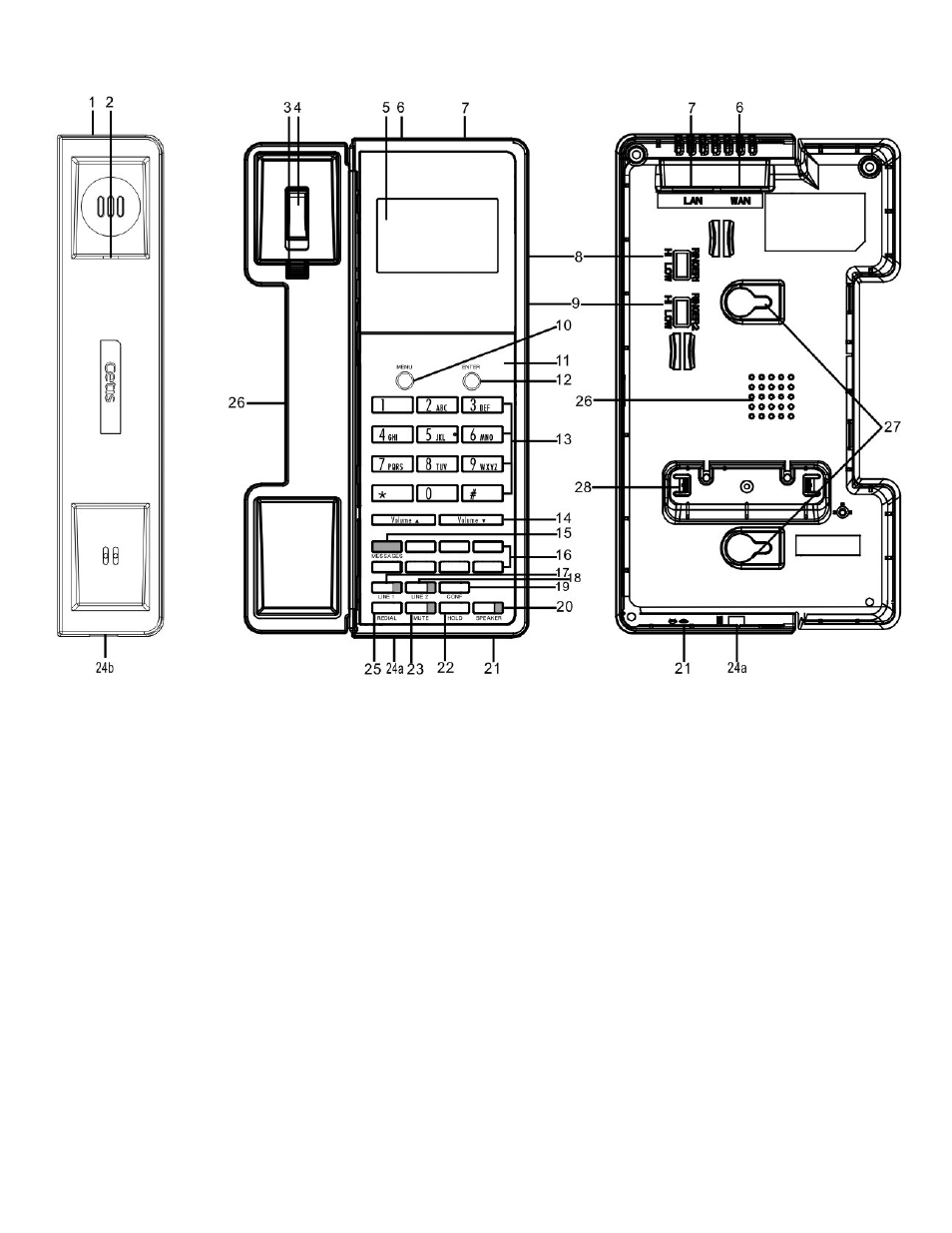

E200IP and E200IPTRM Phone Map
BASE FEATURES AND CONTROLS
1. Handset
2. Wall mount clip slot
3. Wall mount handset clip
4. Actuator for hookswitch
5. LCD display for MWI and interface
6. RJ-45 WAN input (POE) for voice network
connectivity
7. RJ-45 LAN Input for guest connectivity
8. Ringer volume switch (unused)
9. Ringer Hi/Low (unused in VoIP)
10. Menu key (submerged)
While it is not recommended, the Menu
key may be used to program guest service/
speed dial numbers. (Press Menu, then
press the numbers to be dialed and finally
end by pressing the speed dial key.)
11. Paper faceplate/Plastic overlay
12. Enter key (submerged)
13. Dialpad
14. Volume s (increase) and Volume t
(decrease) keys
15. OneTouch message retrieval key
16. 4, 8, 12, or 0 Memory keys
17. Line 1 key
18. Line 2 key
19. Conference key
20. Speaker key
21. Microphone
22. Hold key
23. Mute key
24. a/b. Handset coil cord receptacles
25. Redial key
26. Speaker—half duplex
27. Wall mount bracket
