10 www.teledex.com E SERIES VoIP USER GUIDE

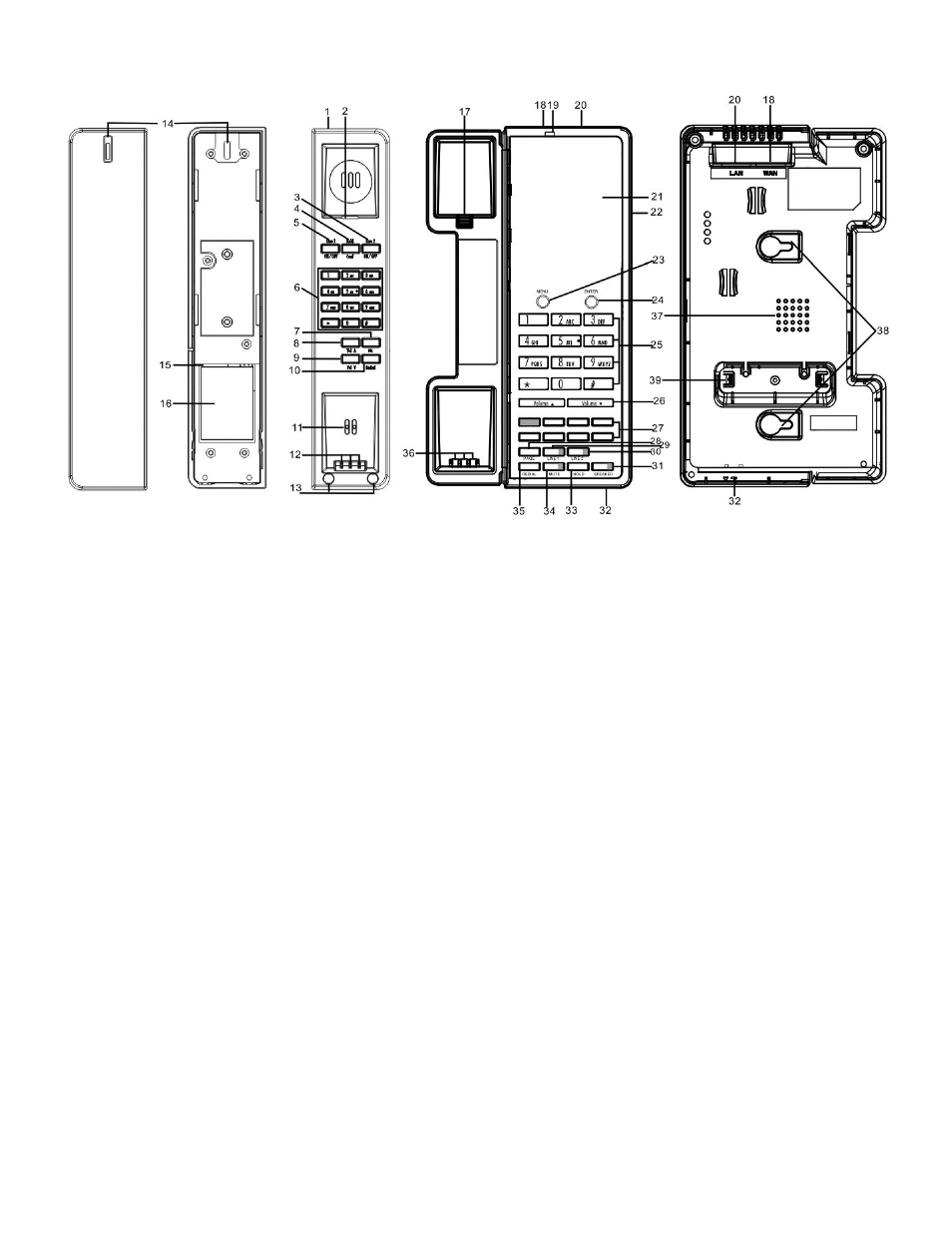

E203IP and E203IP RediDock Phone Map
BASE FEATURES AND CONTROLS
1. Cordless handset
2. Wall mount clip slot
3. Line 2 On/Off key
4. Hold/Conf key
5. Line 1 On/Off key
6. Handset dialpad
7. FNC key (handset)
8. Handset Volume s (increase)
9. Handset Volume t (decrease)
10. Redial key (handset)
11. Microphone (handset)
12. Charging leads (handset)
13. Screws for battery access
14. Message waiting/Ringing indicator
(handset)
15. Battery tray (handset)
16. Battery (handset)
17. Wall mount handset clip
18. RJ-45 WAN input (POE) for power and
voice network connectivity
19. Handset message waiting/Ringing
indicator (base)
20. RJ-45 LAN input for guest connectivity
21. Paper faceplate/Plastic overlay
22. Phone case
23. Menu key (submerged)
While it is not recommended, the Menu
key may be used to program guest service/
speed dial numbers. (Press Menu, then
press the numbers to be dialed and finally
end by pressing the speed dial key.)
24. Enter key (submerged) (unused)
25. Dial pad
26. Volume s (increase) and Volume t
(decrease) keys
27. 4, 8, 12, or 0 Memory keys (shaded key
is programmable OneTouch message
retrieval key)
28. Page key
29. Line 1 key
30. Line 2 key
31. Speaker key
32. Microphone (base)
33. Hold Key (base)
34. Mute key (base)
35. Redial key (base)
36. Charging leads (base)
37. Speaker—half duplex (base)
38. Wall mount bracket
39. Desk mount bracket
