E SERIES VoIP USER GUIDE www.teledex.com 7
E100IP and E100IPTRM Phone Map

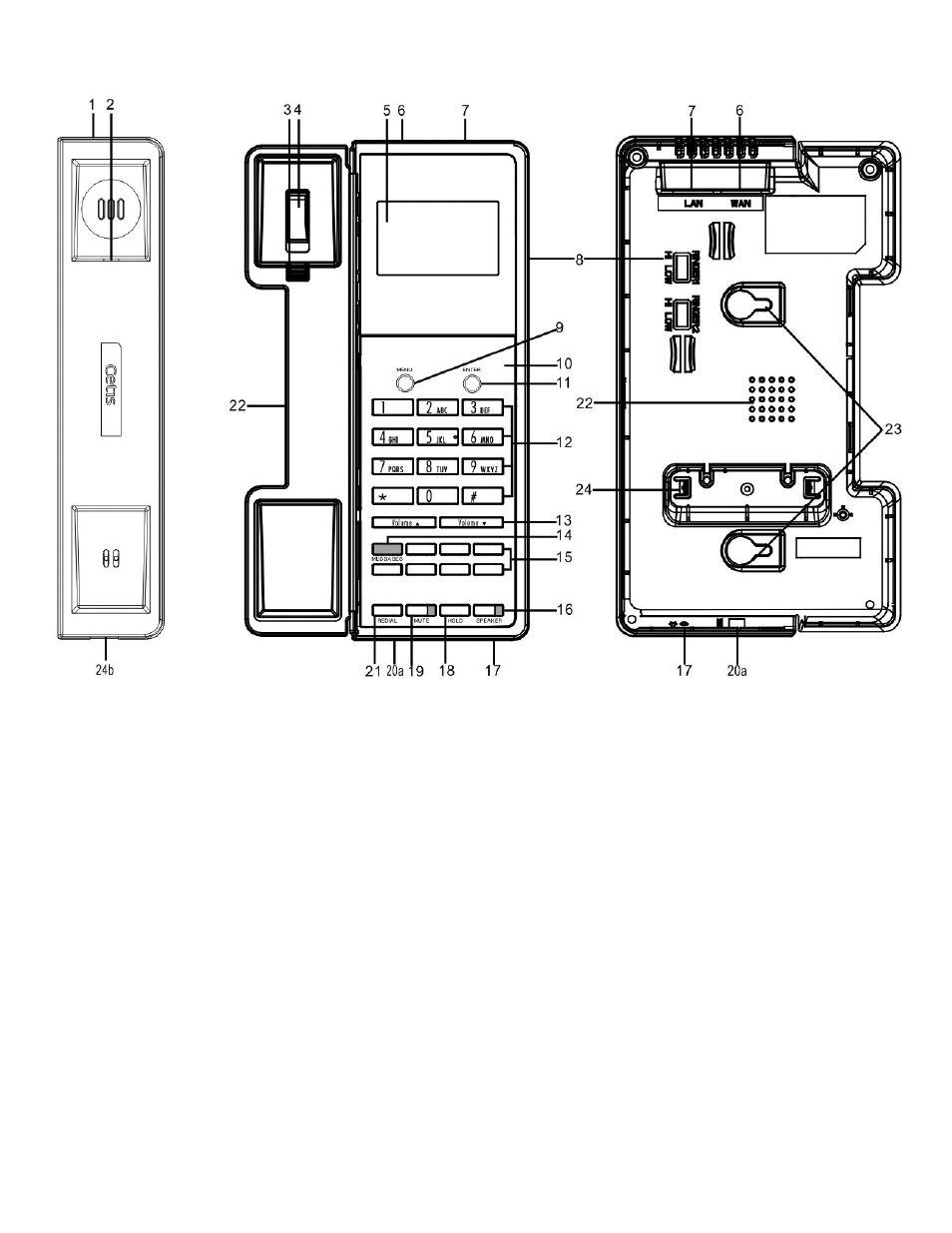

BASE FEATURES AND CONTROLS
1. Handset
2. Wall mount clip slot
3. Wall mount handset clip
4. Actuator for hookswitch
5. LCD display
6. RJ-45 WAN input (POE)
7. RJ-45 LAN input
8. Ringer volume switch (unused)
9. Menu key (submerged)
While it is not recommended, the Menu
key may be used to program guest service/
speed dial numbers. (Press Menu, then
press the numbers to be dialed, and finally
end by pressing the speed dial key.)
10. Paper faceplate/Plastic overlay
11. Enter key (submerged) (unused)
12. Dialpad
13. Volume s (increase) and Volume t
(decrease) keys
14. Message Waiting Indicator (MWI) light
15. 4, 8, 12, or 0 Memory keys
16. Speaker key
17. Microphone
18. Hold key
19. Mute key
20. a/b. Handset coil cord receptacles
21. Redial key
22. Speaker—half duplex
23. Wall mount bracket
24. Desk mount bracket
