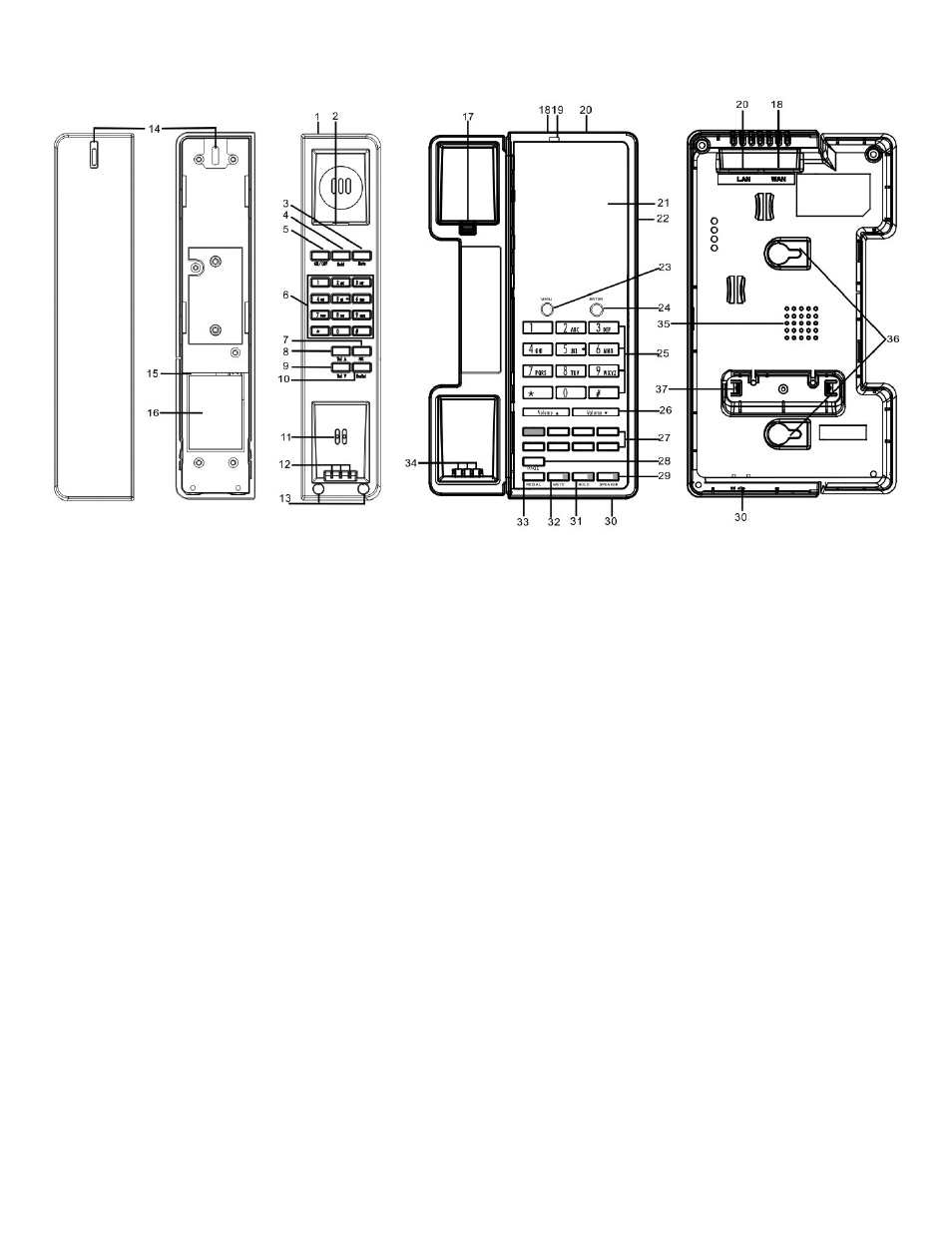

E103IP and E103IP RediDock Phone Map
BASE FEATURES AND CONTROLS
1. Handset
2. Wall mount clip slot
3. Mute key
4. Hold key
5. On/Off key
6. Handset dialpad
7. FNC key (handset)
8. Handset volume s (increase)
9. Handset volume t (decrease)
10. Redial key (handset)
11. Microphone (handset)
12. Charging leads (handset)
13. Screws and rubber plugs for handset cover
and battery access (in separate bag)
14. Handset Message Waiting/Ringing
Indicator/Speaker key
15. Battery tray (handset)
16. Battery (handset)
17. Wall mount handset clip
18. RJ-45 WAN (POE) input for power and
network connection
19. LED charging indicator
20. RJ-45 LAN input for guest connectivity
21. Faceplate and plastic overlay
22. Phone case
23. Menu Key (submerged)
While it is not recommended, the Menu
key may be used to program guest service/
speed dial numbers. (Press Menu, then
press the numbers to be dialed and finally
end by pressing the speed dial key.)
24. Enter key (submerged) (unused)
25. Dial pad
26. Volume s and Volume t keys
27. 4, 8, 12, or 0 memory keys (shaded key is
OneTouch message retrieval key)
28. Page key
29. Speaker key
30. Microphone (base)
31. Hold key (base)
32. Mute key (base)
33. Redial key (base)
34. Charging leads (base)
35. Speaker—half duplex (base)
36. Wall mount bracket
37. Desk mount bracket
