Town One to Six chamber Ranges User Manual

Page 12

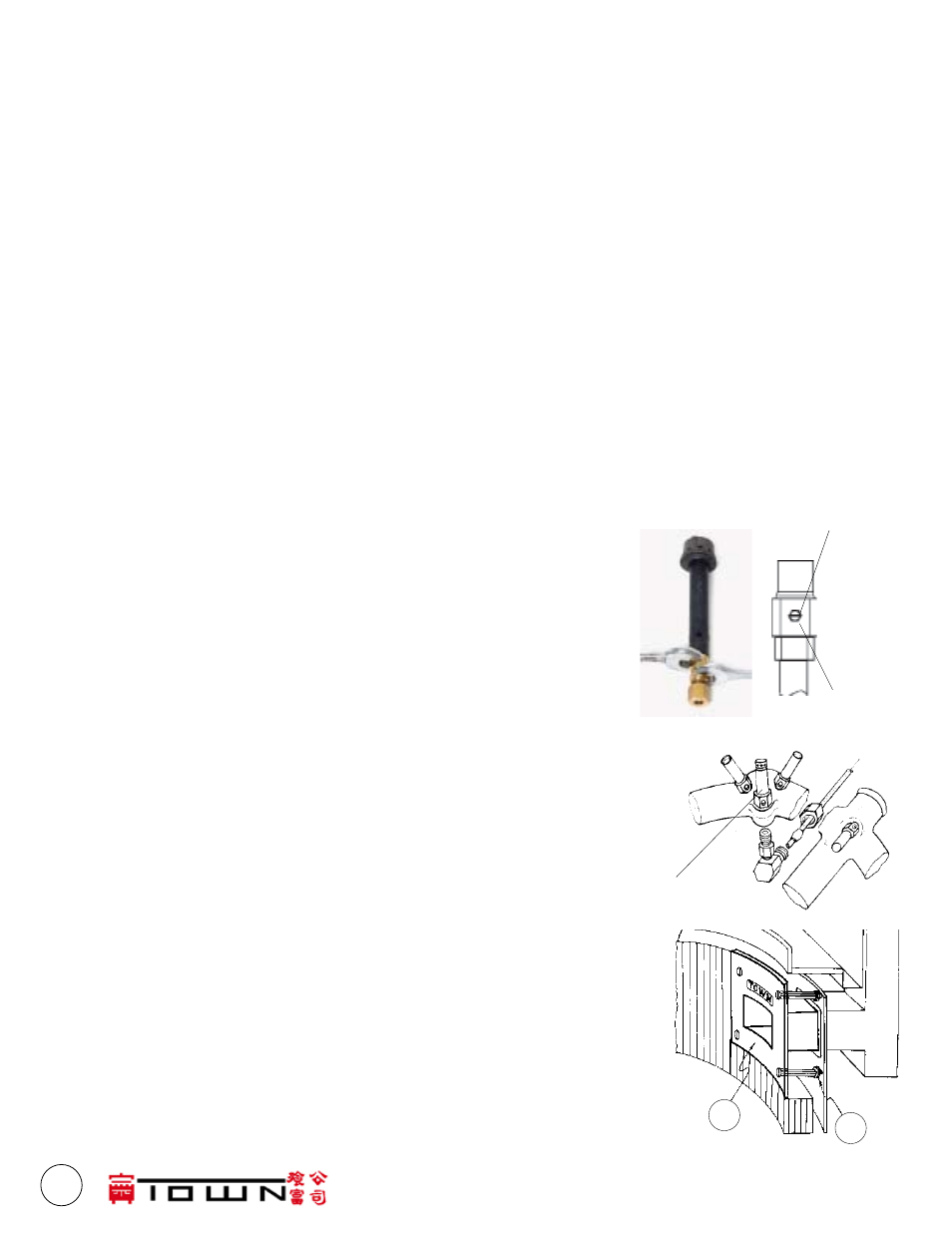

5) How to Change The Pilot Light in a chamber with a Ring Burner or

Shield Tip Burner:

Shut off pilot valve. The pilot light is mounted on flexible tubing

and can be raised. Using a 12 mm open-ended wrench, hold the

center of the compression fitting below the pilot firm. Using a 1/2"

wrench, unscrew the pilot from its brass fitting at bottom. Install the

new pilot by reversing the above procedure. Adjust the pilot flame

at the pilot valve and be sure to check for gas leaks using a soapy

solution.

Jet burner: Shut off pilot valve. Using a 12mm open-ended wrench,

unscrew the pilot, remove and replace. If a 12mm open-ended wrench

is unavailable, a 1/2" open end or adjustable wrench may suffice.

6) Flue Collar Replacement ("F" models)

The cast iron flue collar may deteriorate after considerable use. If you

notice such deterioration, we suggest you contact your local service

company for replacement parts and qualified service. If you must replace

the flue collar yourself, follow the instructions below:

NOTE: Shut off gas to range. The burner and pilot must be removed

prior to removing the flue collar.

Remove old nuts behind range that secure flue collar (1). Remove

worn collars with pry bar (2). Put new collar into place using provided

hardware. Re-cement chamber (see page 11) and replace burner and

pilot.

pilot

MAINTENANCE AND CARE

1) If your equipment requires service, contact your authorized gas service company to perform neces-

sary repairs.

2) Check the flue riser monthly to be sure it is free of obstructions. Be sure to clean the air mixers and

orifices of ring burners once a year. Jet and shield tip burners must be serviced more often as they

become clogged more easily. This service must be performed by your local qualified gas service

company.

3) Your range should be cleaned each evening with grease dissolver and rinsed well. It will prevent

grease accumulation and keep the unit clean and sanitary.

4) If your unit is supplied with casters, there should be a restraint on the appliance to limit its movement.

If disconnection of the restraint becomes necessary, you must be sure to reconnect the restraint after

the appliance is returned to its originally installed position.

The following service should be done only by a qualified gas service technician.

OFF position:

turn clockwise

until screw can-

not be turned

further

ON position turn
counter-clockwise

PILOT

VALVE
