figure
2
ON position OFF position
MAIN BURNER VALVE
air shut-
ter
(ring
burners
only)
FIGURE 1 FIGURE 2
OFF position:
turn clockwise
until screw can-
not be turned.
ON position
turn counter-
clockwise
PILOT VALVE
11
Put lit match
to pilot
burner, de-
press & hold
red button
MAIN BURNER VALVE
OFF position ON position
figure 1

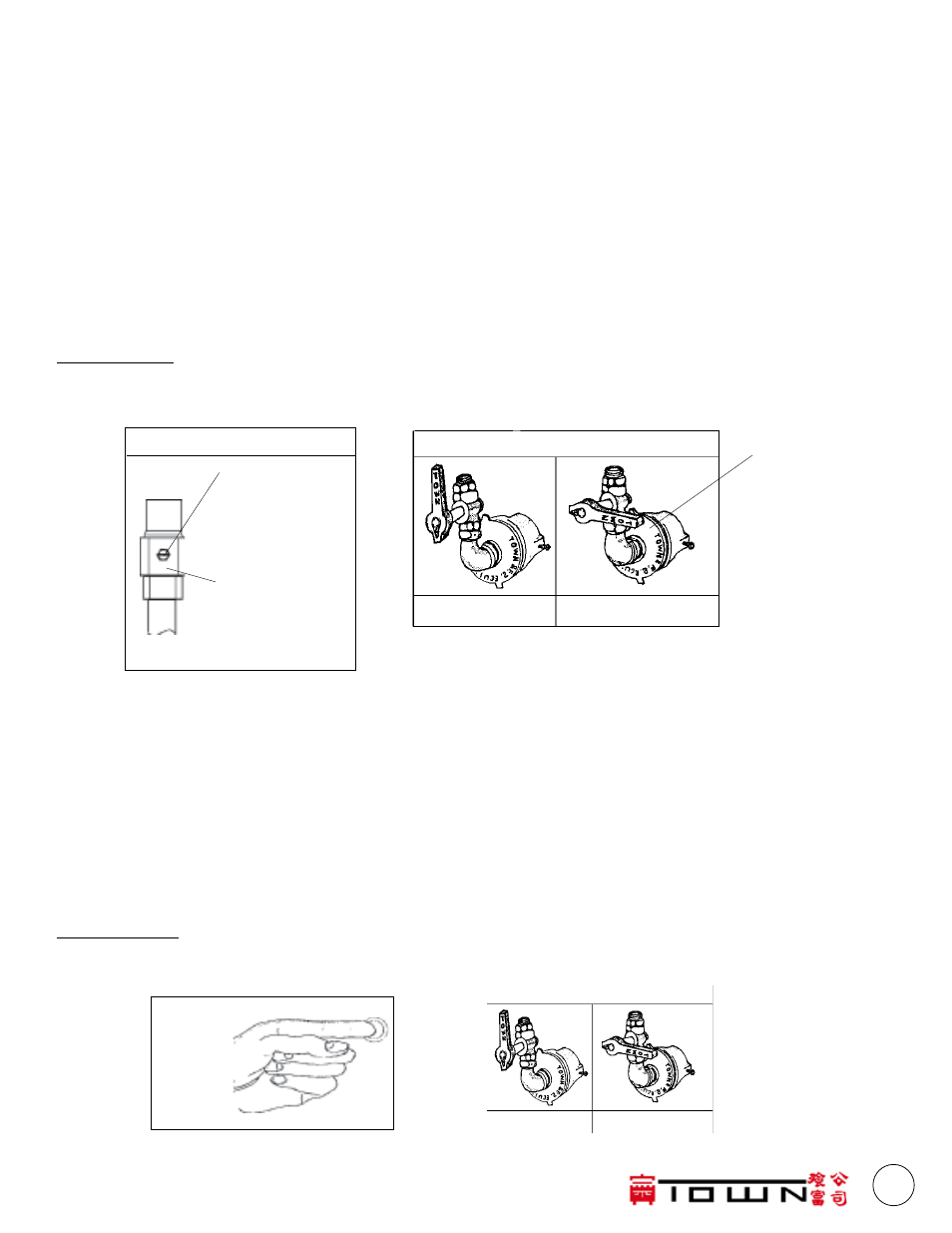

5. UNITS WITH SAFETY VALVES: LIGHTING AND SHUT DOWN INSTRUCTIONS.
Always follow these lighting and shutdown instructions when operating your unit. A five minute
complete shutoff period is required before lighting or relighting pilot. See diagram below.
a) Check that all gas valves on the unit are turned “OFF” (see figure 2: lever handles in horizontal posi-
tion) before turning “ON” main gas line. Check for leaks using soapy water or other suitable leak
detector. DO NOT USE OPEN FLAME FOR TESTING.
b) Main burner valve shall be in “OFF” position. Position a burning match by the pilot burner in the
combustion chamber of the range. Depress the red button on safety control (see fig.1 below) and light
pilot. The pilot should light.
c) Continue to hold the button for one minute or until the pilot stays lit,
SHUT DOWN: For temporary Shut Down turn all burner valves to "OFF" position.
For an extended period of time, turn all burner valves "OFF" and also turn "OFF"
gas supply to the range.
1. The front of the unit must be kept clear to avoid restriction of air supply for combustion.
2. The equipment must be installed with adequate clearance for servicing and proper operation.
3. This unit should be operated only with drip trays in place.
4. UNITS WITHOUT SAFETY VALVES: LIGHTING AND SHUT DOWN INSTRUCTIONS
Be sure that all piping is gas tight and all air purged from the lines. With main burner valve in “OFF”
position (see fig.2), using a screw driver turn pilot screw counter clockwise to “ON” (see fig.1 below)
and light pilot located in the combustion chamber. Make sure the pilot stays lit. All units are equipped
with fixed orifices which cannot be adjusted for gas flow. Ring burners have adjustable air mixers to
adjust the air/gas mixture.
Turn right hand burner valve to full “ON” position (see fig.2 below) and adjust air shutter until proper
blue flame is burning on both inner rings. Repeat operation for left hand valve only if your range is
equipped with three ring burners.
SHUTDOWN:
Turn burner valves to "OFF" position (see fig.2) and turn the pilot screw clockwise (see fig. 1) until it
cannot be turned further. Repeat this step for each chambers.
