ENGLISH

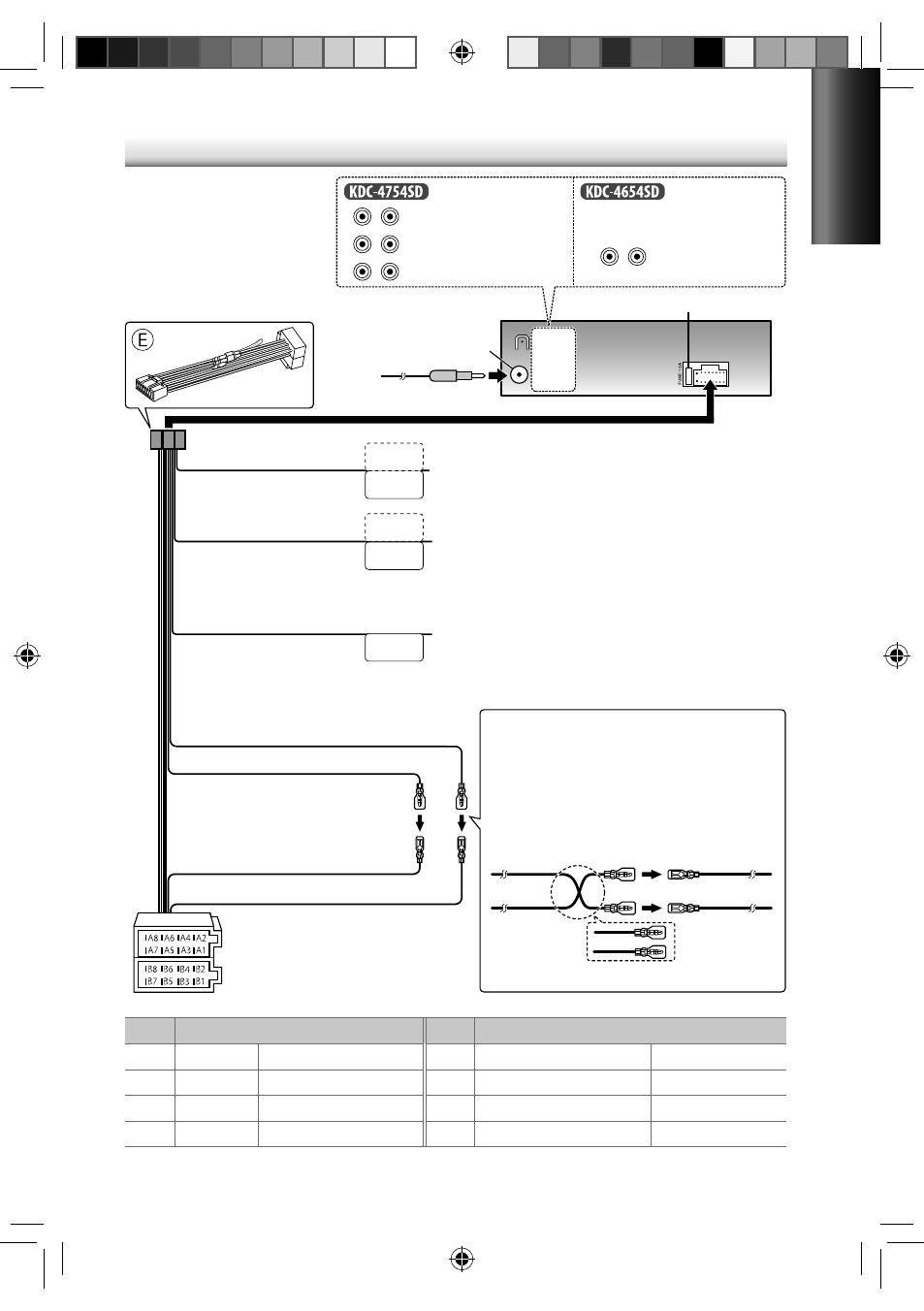

Wiring connection

REMOTE CONT

STEERING WHEEL

REMOTE INPUT

MUTE

P. CONT

ANT CONT

FRONT

REAR

REAR/SW

Fuse (10 A)

Antenna terminal (JASO)

Light blue/yellow
(Steering remote control wire)

To the steering wheel remote control adapter

Blue/White
(Power control wire/ Antenna
control wire)

Brown
(Mute control wire)

To the power control terminal when using the optional power
amplifier, or to the antenna control terminal in the vehicle.

To the terminal that is grounded when either the telephone rings
or during conversation. (To connect the Kenwood navigation
system, consult your navigation manual.)

Yellow (A4)

Red (Ignition wire)

Red (A7)

Yellow (Battery wire)

Front output terminals

Subwoofer output terminals

Rear output terminals

Rear/subwoofer output
terminals

Color and function

Yellow

Battery

B1 / B2 Purple

/ Purple/black

Rear speaker (right)

Blue/White

Power control

B3 / B4 Gray

/ Gray/black

Front speaker (right)

Red

Ignition (ACC)

B5 / B6 White

/ White/black

Front speaker (left)

Black

Earth (ground) connection

B7 / B8 Green

/ Green/black

Rear speaker (left)

ISO connectors

Connecting the ISO connectors on some VW/Audi or
Opel (Vauxhall) automobiles
You may need to modify the wiring of the supplied
wiring harness as illustrated below.

Unit

Vehicle

A7 (Red)

Ignition wire

(Red)

A4 (Yellow)

Default wiring

Battery wire

(Yellow)
