14
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)

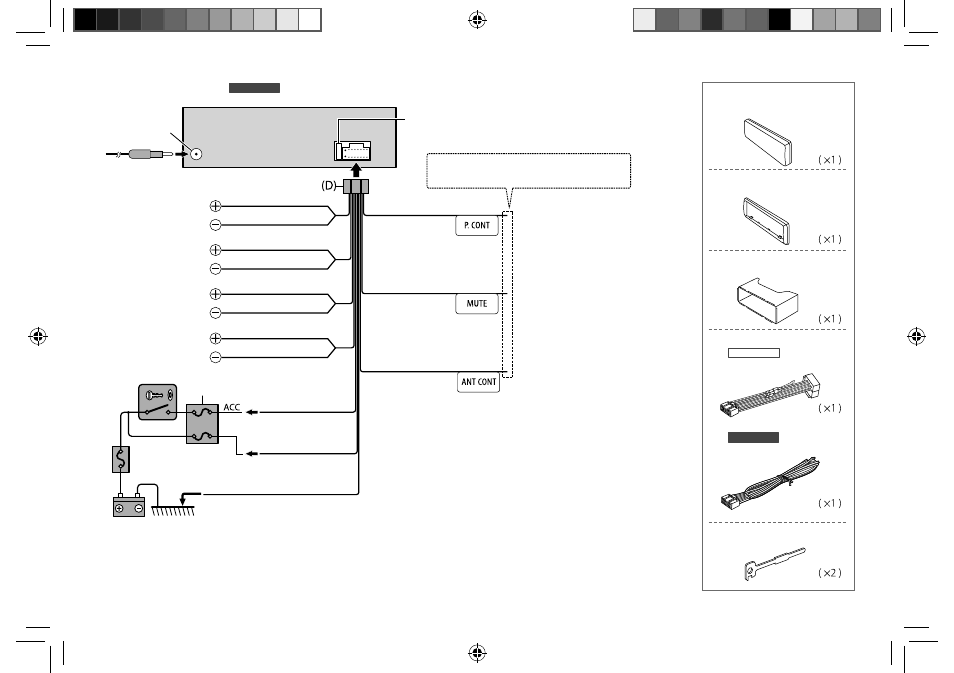

Part list for installation
(A) Faceplate
Wiring connection (for KDC-100Q )
Fuse (10 A)
Antenna terminal
Car fuse box
Car fuse box
Battery
Ignition switch
Blue/White
(Power control wire)
Red
(Ignition wire)
Yellow
(Battery wire)
Black (Ground wire)
To the metallic body or chassis
of the car
To the power control terminal when using
the optional power amplifier, or to the
antenna control terminal in the vehicle.
Brown
(Mute control wire)
Blue
(Antenna control
wire)
White
Gray
Green
Purple
White/Black
Gray/Black
Green/Black
Purple/Black
To the terminal that is grounded when the
telephone rings or during conversation.
(To connect the Kenwood navigation system,
refer your navigations manual.)
To front speaker (left)
To rear speaker (left)
To front speaker (right)
To rear speaker (right)
To the antenna control terminal in
the vehicle
If no connections are made, do not let the wire
come out from the tab.
(C) Mounting sleeve
(B) Trim plate
(D) Wiring harness (except for
KDC-100Q )
(E) Extraction key
(for KDC-100Q )
