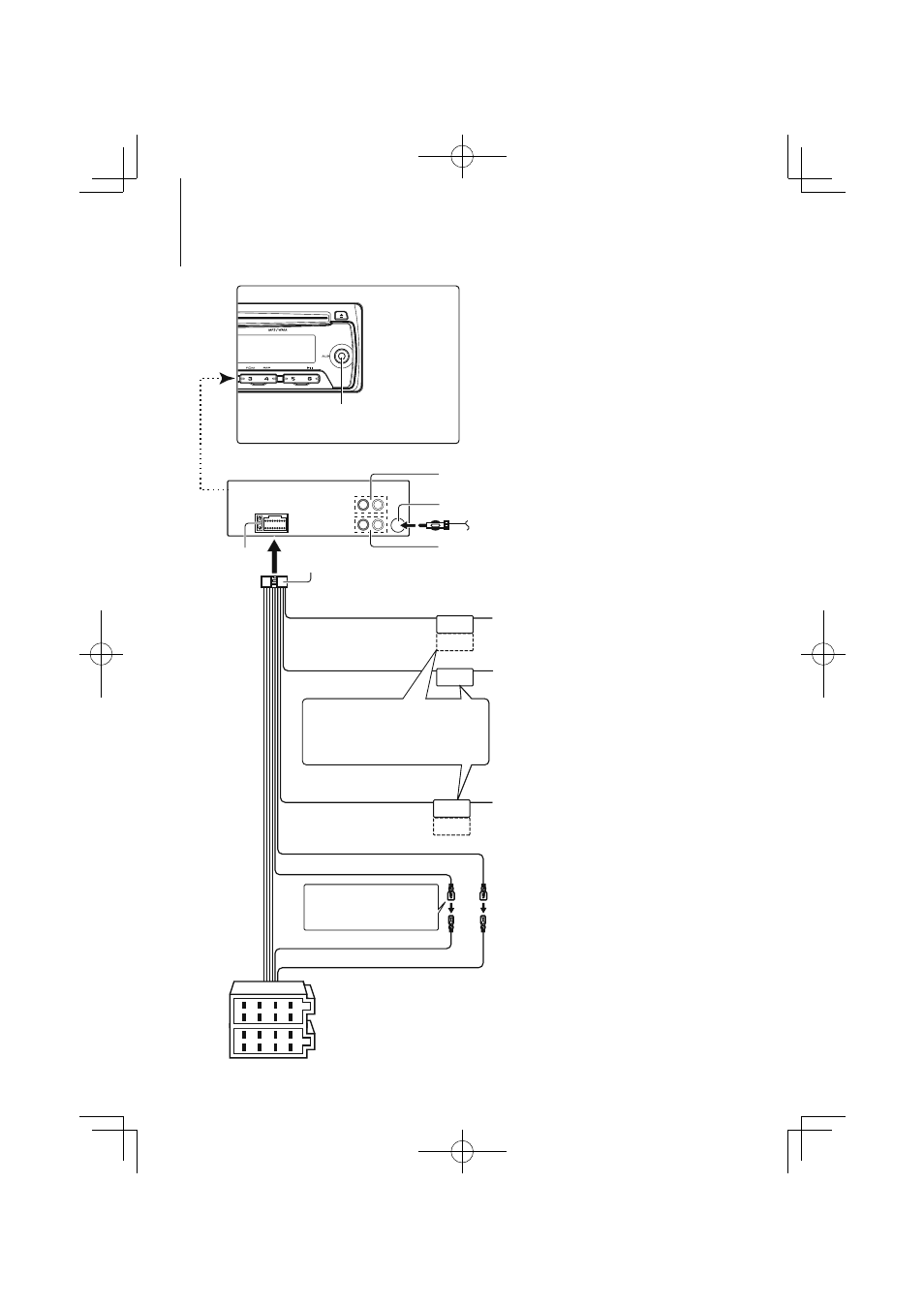

Connecting Wires to Terminals
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
P.CONT
ANT.CONT
MUTE
REMOTE CONT
STEERING WHEEL
REMOTE INPUT
L R
Battery wire (Yellow)
Ignition wire (Red)
Wiring harness
(Accessory
1)
If no connections are made, do not
let the wire come out from the tab.
Power control/ Motor antenna
control wire (Blue/White)
Mute control wire (Brown)
Connect either to the power control terminal
when using the optional power amplifier, or to the
antenna control terminal in the vehicle.
A–7 Pin (Red)
A–4 Pin (Yellow)
Connector A
Connector B
Fuse (10A)
⁄
See next page.
FM/AM antenna input (JASO)
Connect to the terminal that is grounded when
either the telephone rings or during conversation.
⁄
To connect the Kenwood navigation system,
consult your navigation manual.
Front side
AUX input (Stereo)
Use the mini-plug cable which is stereo type
and does not have any resistance.
Rear output/ Sub Woofer output
(KDC-3047/KDC-3047M/KDC-3347/KDC-314 only)
Front output
(KDC-3247 only)
Steering remote control
(Light Blue/Yellow)
To use the steering wheel remote control feature,
you need to an exclusive remote adapter (not
supplied) matches your car is required.
(KDC-3047/KDC-3047M/KDC-314 only)
