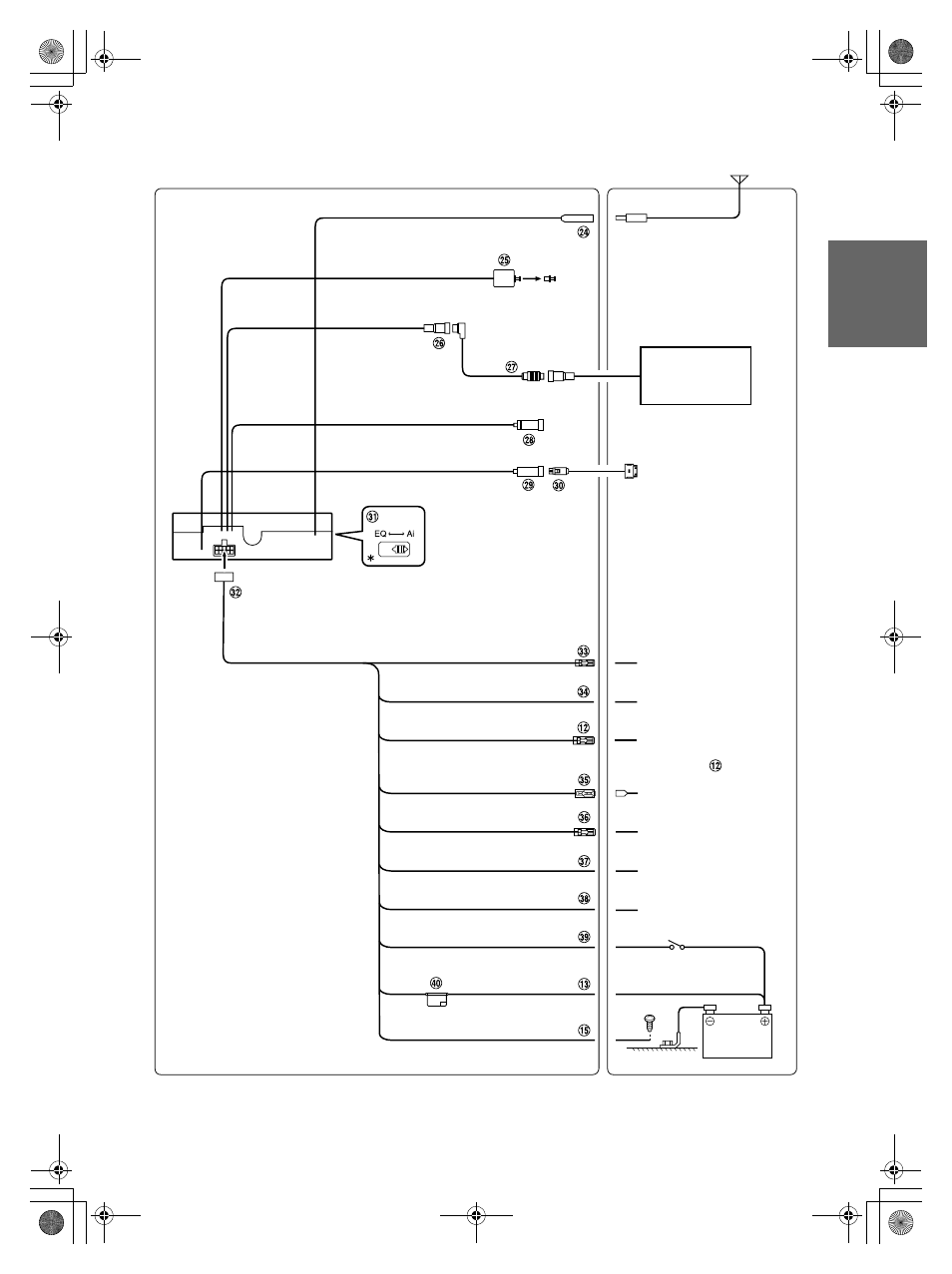

• Set the system switch to “Ai” when only a changer is connected (when the Ai-NET compatible equalizer is not used).
* The label is attached on the bottom of the unit.
CD changer
(Sold Separately)
To plus side of the back
lamp signal lead of the car
(White/Brown)
(Orange/White)
(Blue/White)
(Blue)
(Pink/Black)
(Yellow/Blue)
(Yellow)
(Black)
To supplied power amplifier
(Connect to the REMOTE
TURN-ON lead
of page 72.)
REMOTE OUT
REVERSE
REMOTE TURN-ON
POWER ANT
AUDIO INTERRUPT IN
PARKING BRAKE
BATTERY
GND
FOOT BRAKE
(Yellow/Black)
IGNITION
(Red)
To remote input lead
To power antenna
To vehicle phone
To the parking brake
signal lead
To the foot brake cord or
brake lamp cord
Battery
Ignition key
Antenna
To iPod
