Page 4 AXIS Q7401 Installation Guide

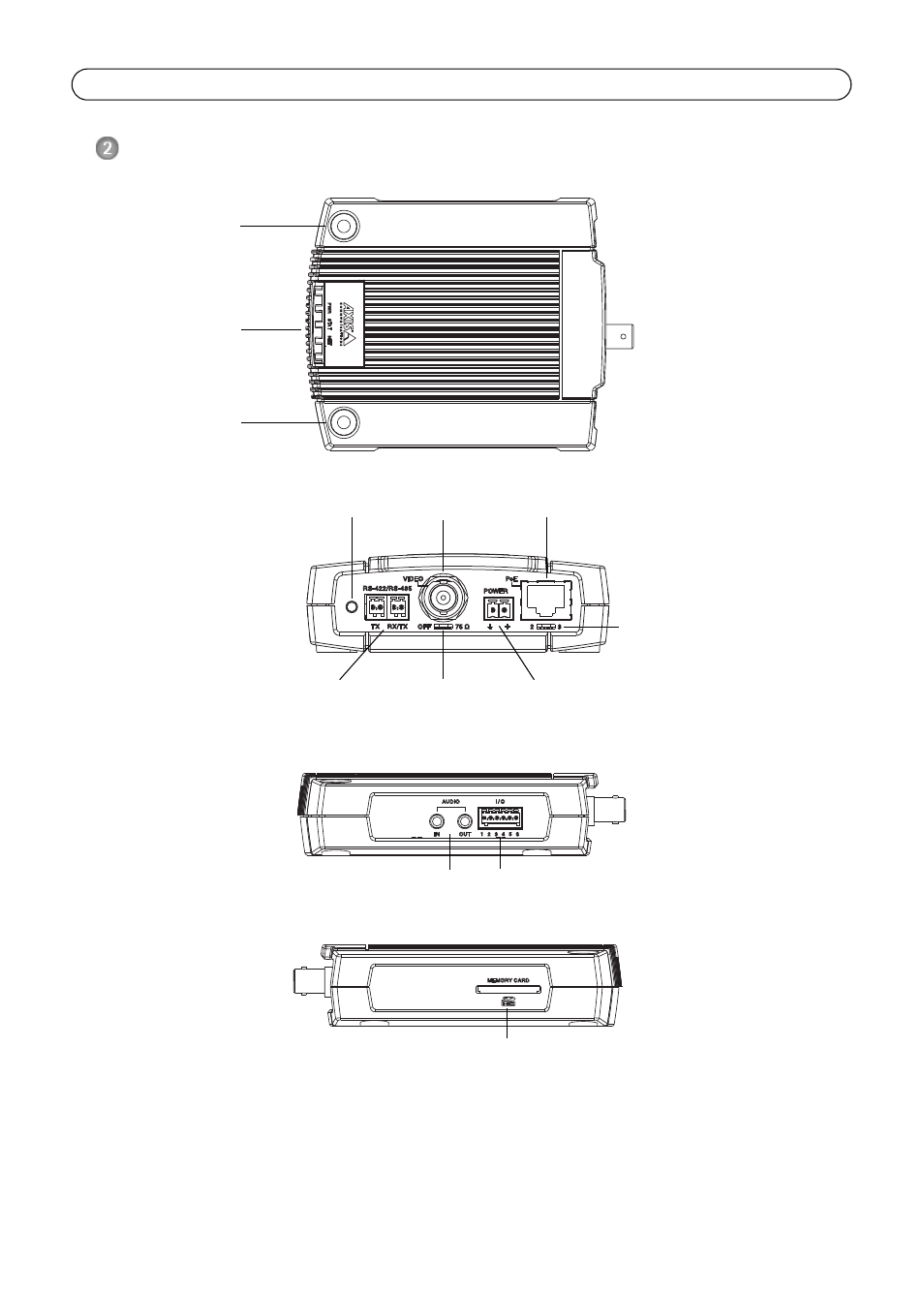

Hardware overview
Top view
Rear view
Audio and I/O side view
SDHC Memory Card side view
Dimensions
HxWxD = 32.1 x 98.9 x 118.0 mm (1.3" x 3.9" x 4.7")
Weight = 335 g (0.74 lb) (power supply not included)
Mounting hole
Mounting hole
LED indicators for
power, status and
network
Control button
Power adapter connector RS-422/RS-485 connector
Video input Network connector (PoE)
PoE switch class 2 and 3
75 Ohm
termination switch
Audio in/out 6-pin I/O terminal
SD memory card slot
