Installation
WARNING! Do not connect the appliance to the mains until the installation is fully
complete.

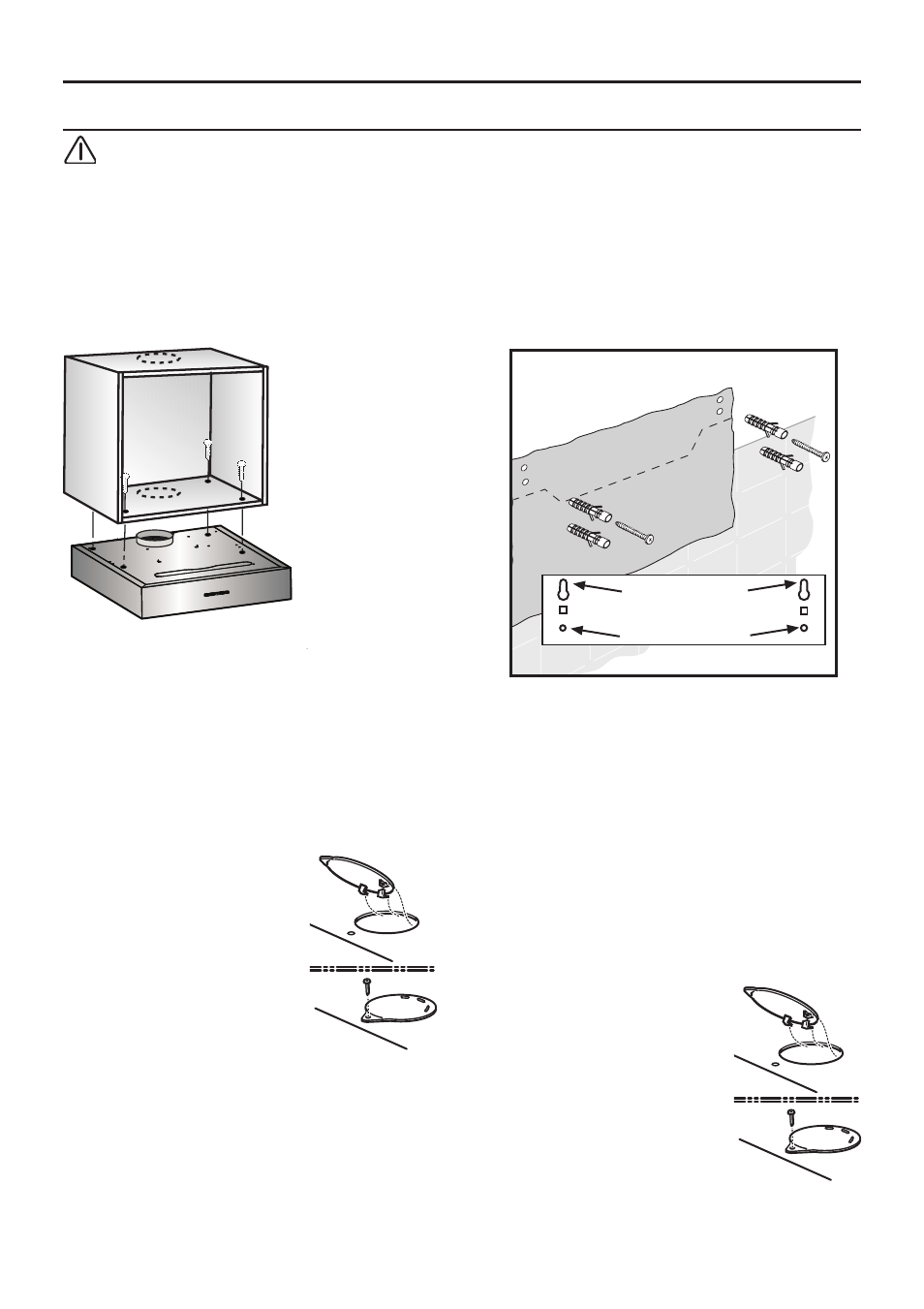

To the wall
With 4 screws.
g. 6
1
1
2 3
2 3
1. Mark mounting boreholes.
Dimensions can be found in or use
template.
2. Drill 8 mm dia. holes and insert wall
plugs flush with the wall.
3. Screw in the upper screws (on left and
right) until there is a gap of approx.
7 mm between the screw head and the
wall.
❑ Remove the grease filters (see
Instructions for use).
In circulating-air mode,
apply the plug supplied
to close the exhaust
hole.
To a wall-hanging cupboard
With 4 screws.
1. Dimensions for the mounting boreholes
can be found in, or place a template on
the base of the wallhanging cupboard.
2. Mark the mounting holes and make pilot
holes with a bradawl.
In exhaust-air mode (upwards) mark the
exhaust-air opening and saw out.
In circulating-air mode,
apply the plug supplied
to close the exhaust
hole.
❑ Consider the location of the connection
cable; if required, saw out the cupboard.
3. Remove the filter grille (see Instructions
for use).
4. Screw the extractor hood to the base of
the cupboard.
