Summers 30' Superroller - Manual (Page 15)

SECTION 2 - ASSEMBLY
1
1
2
2
A A
B B
-30 3/21/2007 9LR3042.iam/
B
C
8P6115R
8P6115L
8P6030
8S3059
8X0095
8P3910
8X0323
8X0304
8X0253
8S3059
8S3059
VIEW FROM BOTTOM
8P6230
8P6230
8D0350
8X0306
8X0260
2-5

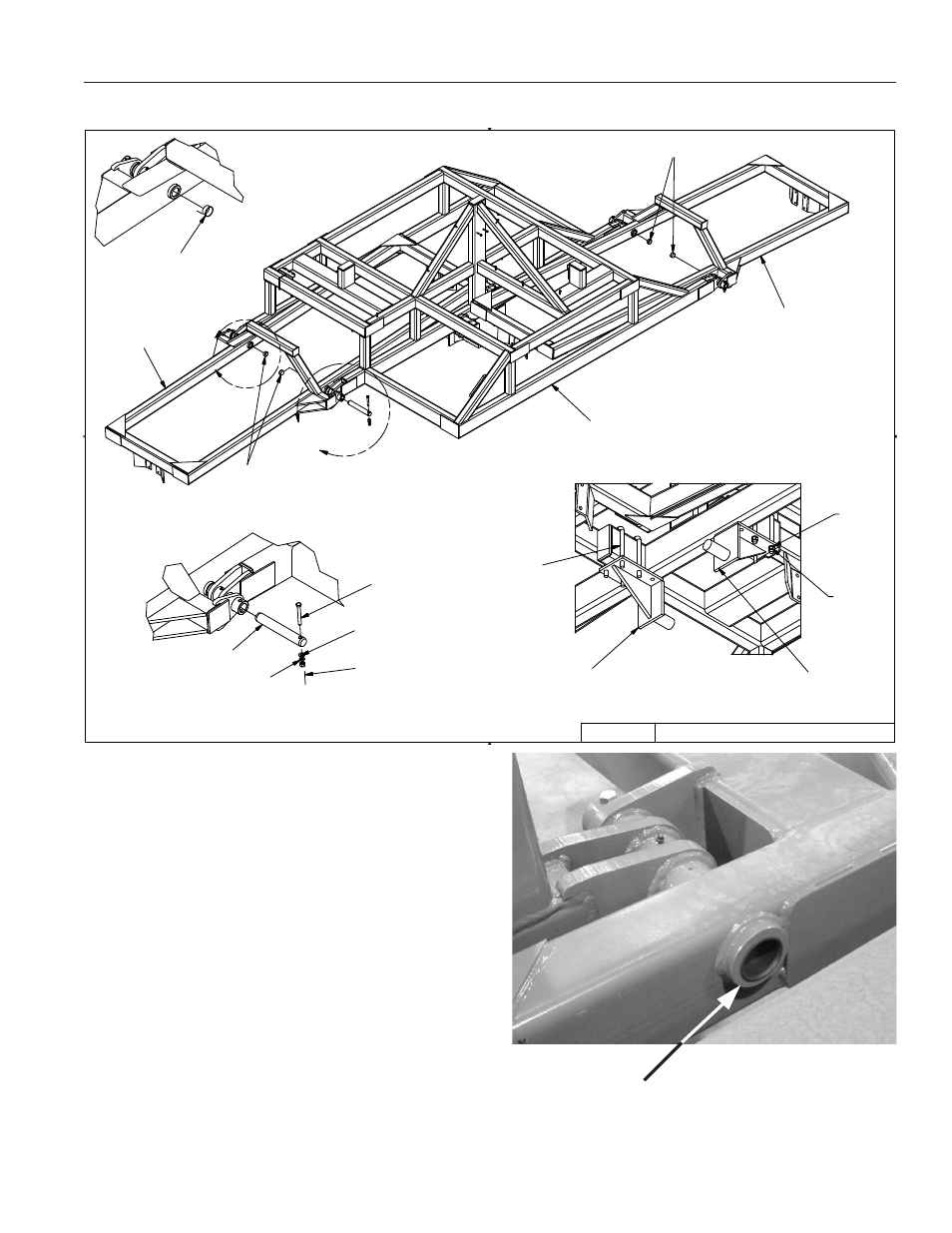

MF4. Secure the pins with the hardware
shown in the drawing.
MF5. Repeat the above steps for 8P6115R.
MF6. Install Dust Caps, PN 8S3059, into the
locations shown in figure 2 and picture
P-W2.
MF7. Install 8P6230 as shown in figure 2.
Align from of 8P6230 with the face of the
tube and tighten the hardware. 8P6230
is the transport stop for the wing and
should be positioned with the round
shaft protuding past the tube to stop the
wing rotation.
8S3059
PLUG
P-W2
Figure 2
