Summers 3-Rank Superweeder - Manual (Page 57)

8-7
SECTION 8 – PARTS

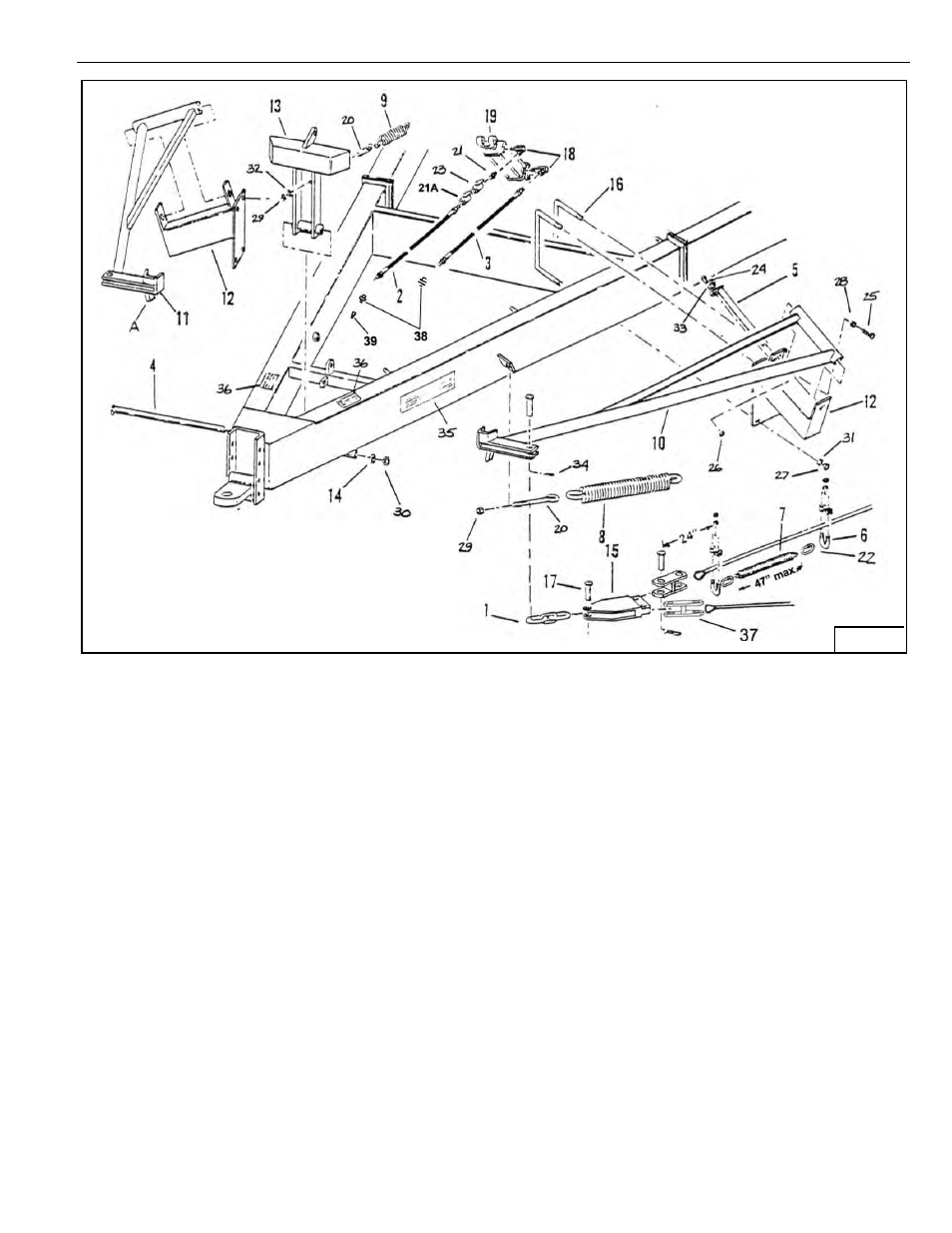

CABLE AUTO-FOLD – (20 Ft. Hitch)
Ref. Part No.
1 8D2400 - Chain 3 Link .625" Dia.
8D2410 - Chain 9 Link .625" Dia.
2 8N3084 - 3/8"x84" Hyd Hose
3 8N3096 - 3/8"x96" Hyd Hose
4 8X0150 - Bolt 1-8NCx20"
5 8C1470 - Pin 1-1/4"x14"AF Arm Pvt
6 8C1900 - Clamp 1/2" Wire Rope
7 8C1920 - Spring (Cable) Auto-Fold
8 8C1940 - Spring Auto-Fold
9 8C1950 - Spring Lock Auto-Fold
10 8C2600 - Arm Auto-Fold Left
11 8C2610 - Arm Auto-Fold Right
12 8C2615 - Pivot Mnt Brckt Auto-Fold
13 8C2640 - Lock Assembly Auto-Fold
14 8C2660 - Bushing Auto-Fold Lock-5/16"
15 8C2690 - Front Cable Attch Dual Cable
16 8D0330 - U-Bolt 5/8x6-1/16x5-5/8" Sq
17 8D2730 - Pin Cable 1"x2-3/4"
18 8J6010 - 3/4”-16 ORB X #6 JIC(M) 90° ADP
19 8D9118 - Cyl 2.5x8" w/o Depth Control
Ref. Part No.
20 8R6145 - Eye Bolt 3/4"
21 8J5600 - 9/16”-18 ORB X #6 JIC(F-SW)
21A 8J5500 - 9/16”-18 ORB X #6 JIC(M)
22 8S1076 - Quicklink 1/4"
23 8J7000 - Ball Valve
24 8X0063 - Bolt 1/2-13NCx1-1/2"
25 8X0112 - Bolt 3/4-10NCx2-1/4"
26 8X0242 - Nut Ny-Lock 1/2"-13NC
27 8X0250 - Nut Hex 5/8"-11NC
28 8X0259 - Nut Jam 3/4"-10NC
29 8X0261 - Nut Ny-Lock 3/4"-10NC
30 8X0281 - Nut Ny-Lock 1"-8NC
31 8X0304 - Lockwasher 5/8”
32 8X0318 - Washer Flat 3/4 (13/16"ID)
33 8X0330 - Washer 1.25x17/32"ID
34 8X0414 - Cotter Pin 1/4x2"
35 8Z0093 - "Warning" Autofold Decal
36 8Z0232 - Auto Fold Warning Decal
37 8D0312 - Clevis
38 8J5510 - 3/4”-16 ORB X #6 JIC(M) STR
39 8D3212 - Male Tip 3/4”-16 ORB ISO
7/13/03
