2.2 Daisy Chain Twisted Pair Telemetry
If the video returns to the transmitter via links other than coax cables, then the telemetry must be
transmitted to the receivers via twisted pair links.

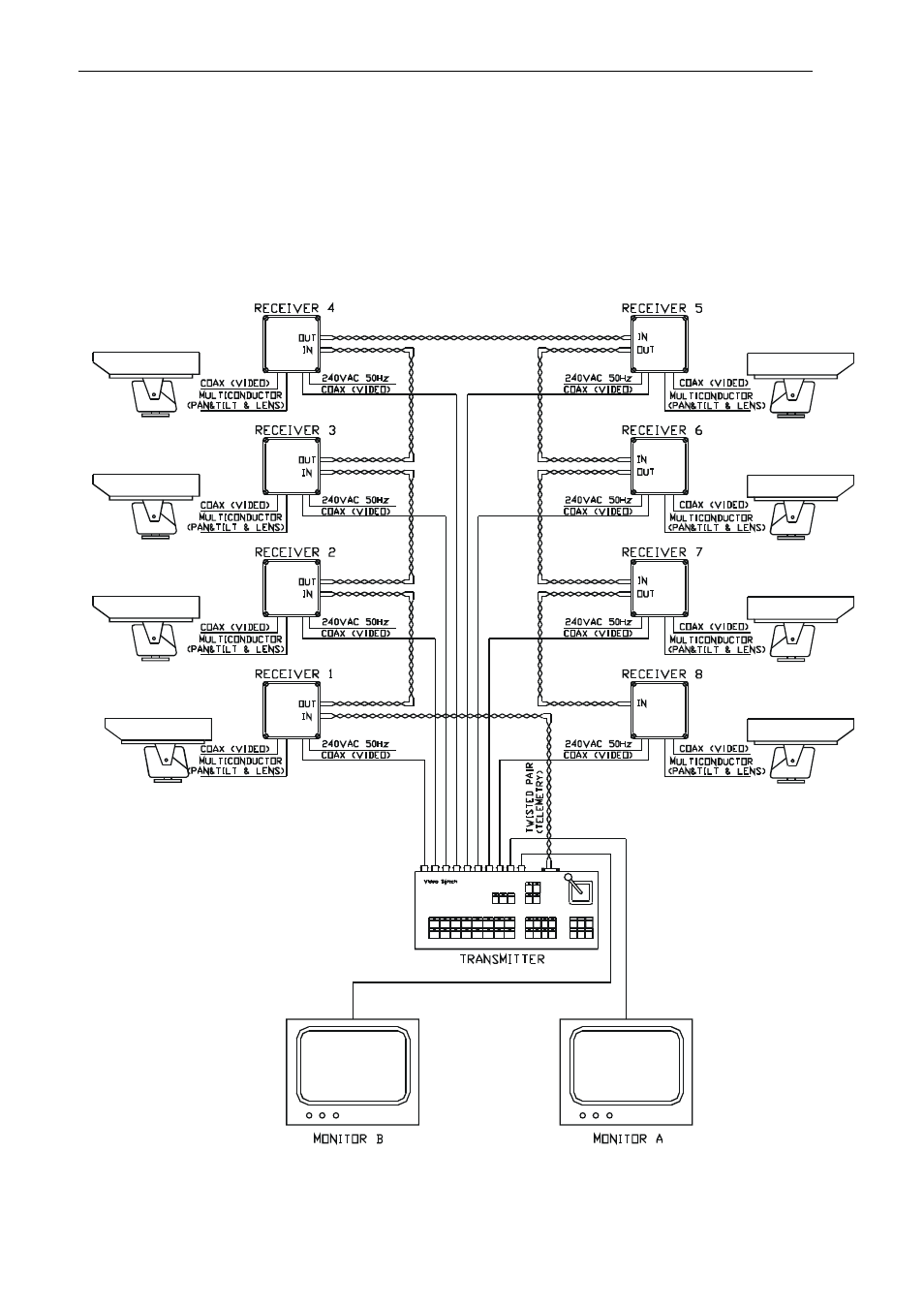

The daisy chain configuration requires, in addition to the video cabling, a twisted pair link from the
transmitter to one of the receivers, and then further twisted pair links from each receiver to the next.
Where twisted pair cables are shown in the diagram, these could in fact be data links utilising as fibre-
optic, microwave, infra-red, leased line, ISDN or PSTN etc. which provide a compatible interface (20mA
loop or RS232).
