Hawkeye Torque Anchor - Manual (Page 2)

E.) Reassembly
1.) Stand the anchor body up-
side down (pin end up) and
install the retaining ring, and
secure into place using the
hex-socket cap screws.
Torque the screws to at least
30 ft-lb (Fig. 5)
2.) Flip the anchor body over
(box end up) and wrap a
heavy-duty elastic band
around the mid-section (Fig.
6).
3.) Place one anchor block into each anchor block groove (Fig. 7), tak-
ing care to note proper orientation (Figs. 8a & 8b). Anchor block
grooves are identified as having circular relief “ears” at the ends of
the groove. Two springs, dished-side towards the body should be
placed behind the anchor block. The springs should sit in the shal-
low relief in the body, and on the underside of the anchor block.
4.) Use an assembly ring or cinch rope to draw in the anchor blocks
close to the body. (Fig 9.)
5.) Drop the second retaining ring onto the torque anchor. Ensure the
retaining ring is seated fully and all anchor blocks are secured by the
retaining ring. Secure the ring using the hex-socket cap screws, and
torque to at least 30 ft-lb. (Fig 10.)
2

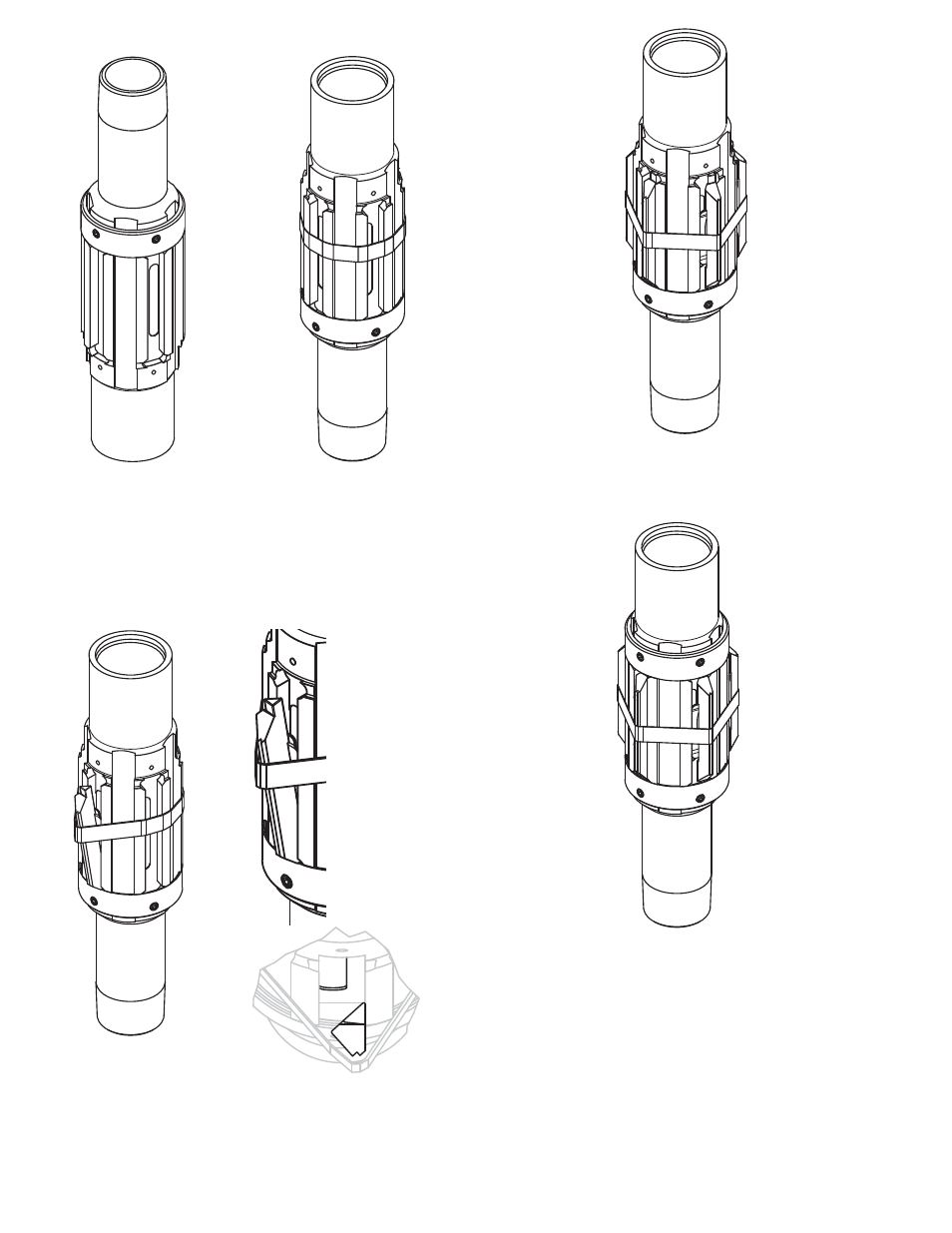

Figure 5 Figure 6
Figure 9
Figure 10
Figure 7
Figure 8a
Figure 8b
