Hawkeye Redtail User Manual

Page 2

Hawkeye Industries Inc.

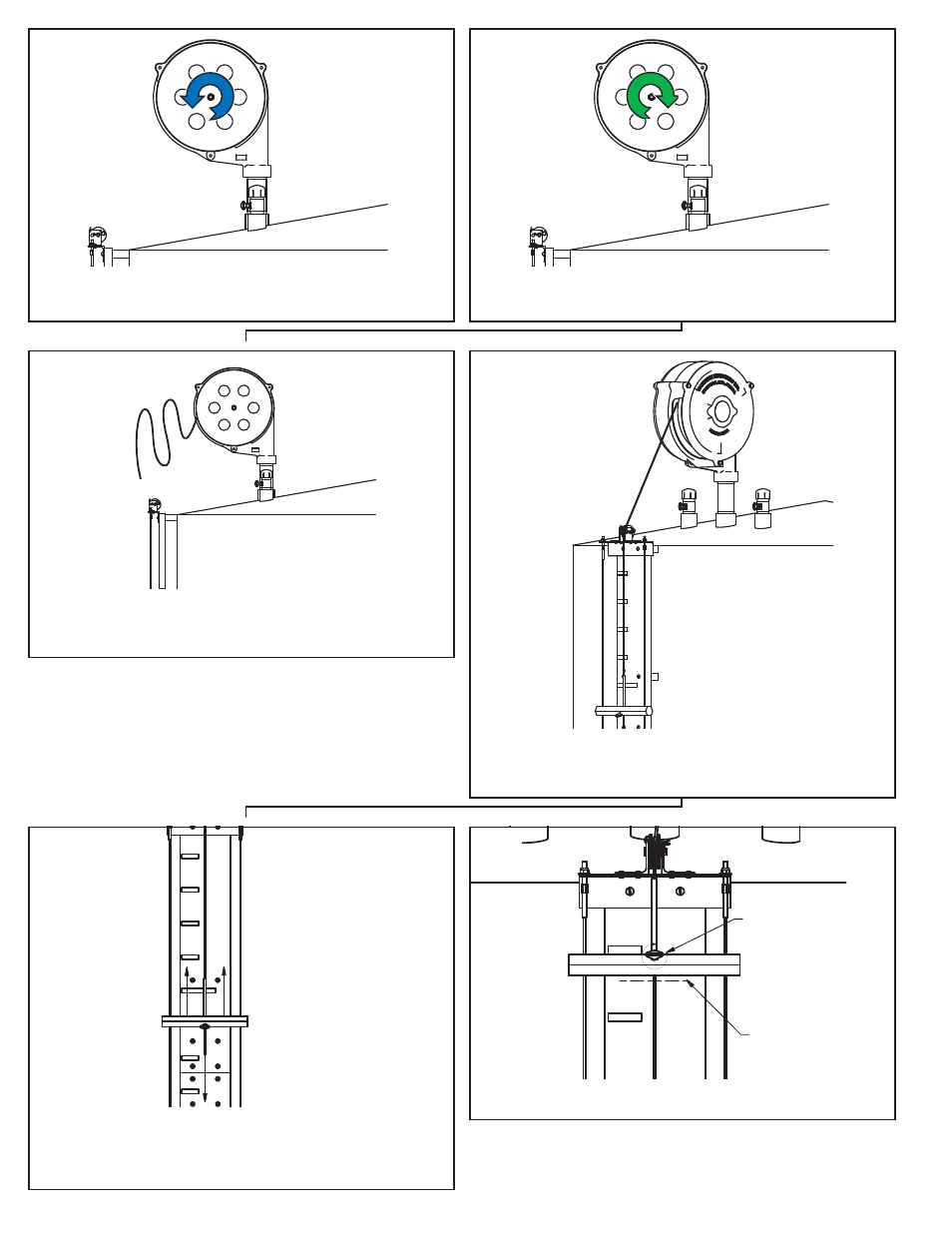

Rotate the indicator spool counter clockwise until you feel the float barely

lift off the floor of the tank.

COUNTER CLOCKWISE

UNTIL FLOAT BARELY

LIFTS OFF TANK BOTTOM

5.)

Rotate the open reel 3 revolutions clockwise.

3 FULL REVOLUTIONS

CLOCKWISE

6.)

Remove the tape from the open reel and pull out the 3 revolutions of

loose cable (approximately 9 ft)

7.)

Pass the cable over the indicator cable pulley and through the hole in the

top bracket of the indicator guide assembly. Feed the cable through the

center hole of the indicator.

8.)

With slight tension on the cable to keep the float barely off the tank floor,

slide the indicator over the cable to the minimum level on the gauge

board.

SLIGHT TENSION TO KEEP FLOAT

BARELY ON TANK FLOOR

SLIDE INDICATOR TO THE MINIUMUM

LEVEL ON THE GAUGEBOARD

9.)

Tighten the indicator set screw. Cut off the excess cable.

CUT OFF EXCESS

TIGHTEN THUMB SCREW

10.)

►

Redtail Installaton Complete

Proceed to Goshawk Installation (if required)

►
