AMETEK 1970 Drive Check Control User Manual
Page 3

3

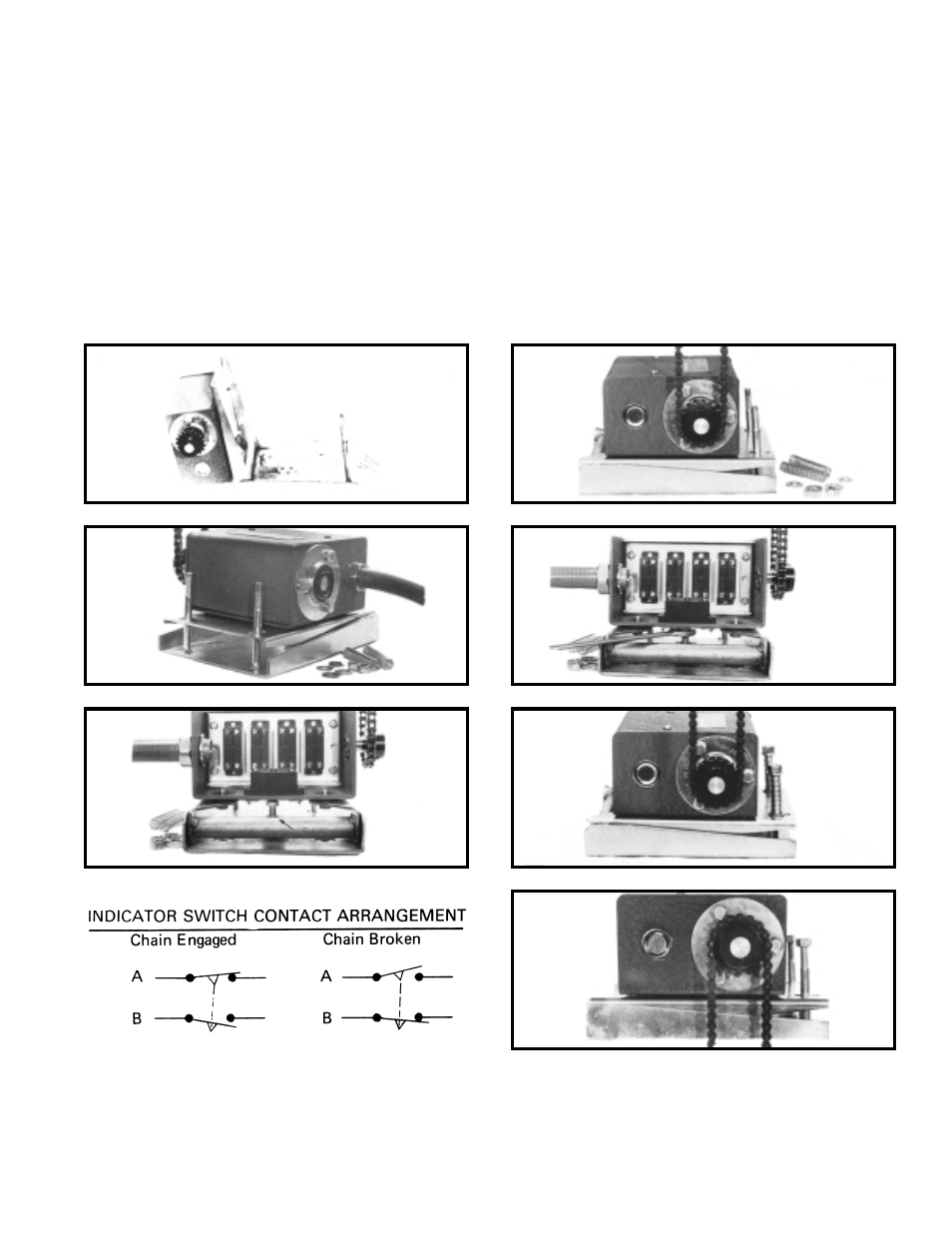

1. Align Drive Sprockets and mount DRIVE-CHEK
base using 5/16" bolts.
2. Engage proper length drive chain to allow hinge
plate to be parallel to the base when drive chain
is tight.
3. Attach flexible conduit to allow free movement of
the hinge plate.
4. Set switch adjustment bolt to engage indicator
switch if the drive chain breaks.
5. Tighten adjustment bolt locknut.
6. Assemble springs with washers on each end of
the coil springs and self-locking nuts. The springs
should be compressed to nearly solid height.
7. Check the movement of the hinge plate to insure
that the conduit and chain guard does not restrict
the hinge plate from tripping the DRIVE-CHEK
Indicator Switch.
MOUNTING and SET-UP for GEMCO DRIVE-CHEK
with DRIVE CHAIN UNIT
1
2
3
4
5
6
6A
6A - Drive chain below is the same procedure to
install
