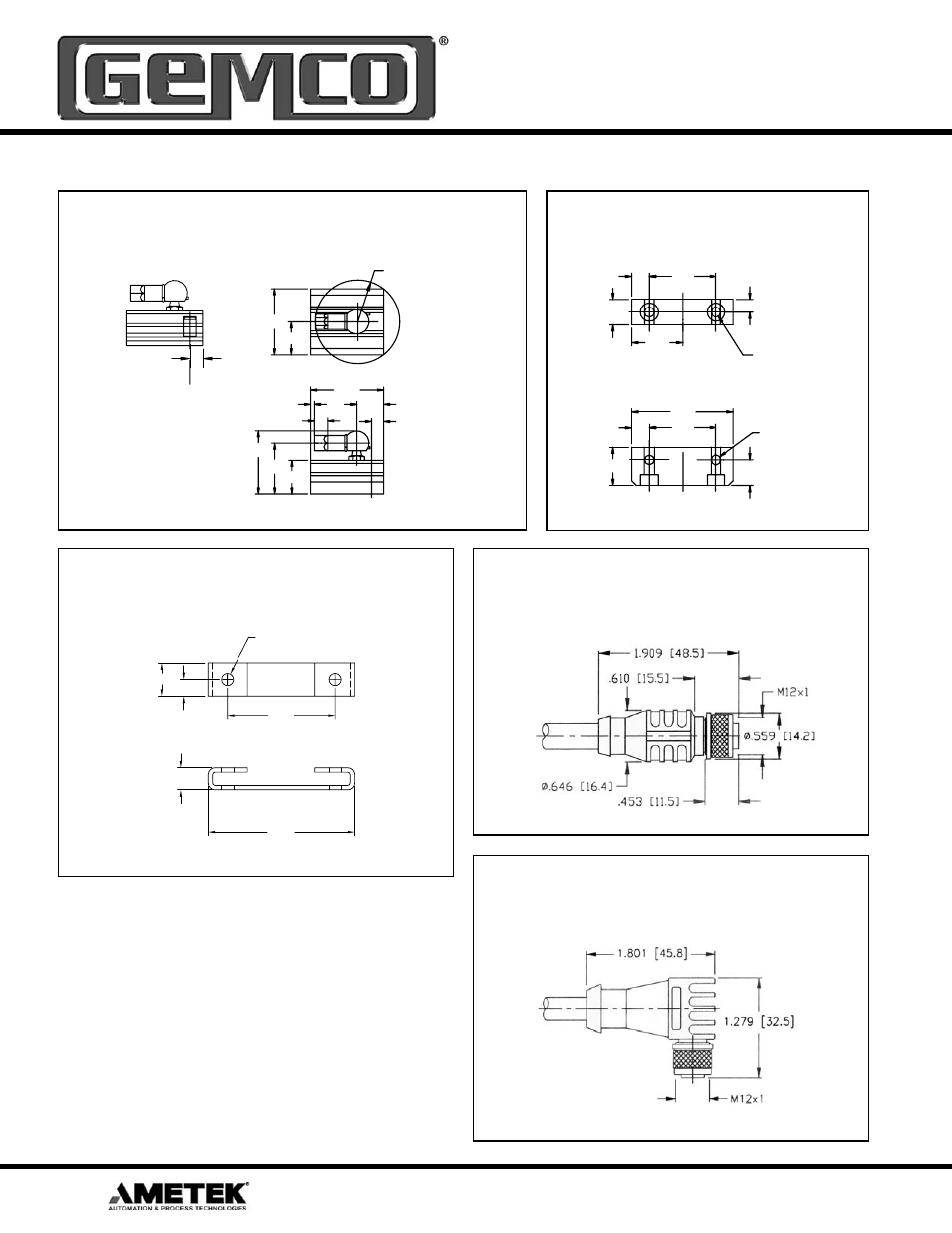

3.9 Accessories

Slide Magnet Assembly

Part Number SD0521800

.25

OF MAGNET SLUG

.08

360 ROTATION

R.87

1.50

.69

1.30

1.04

.68

.28

.87

1.37

.56

.25 TO
CENTERLINE
OF MAGNET
SENSOR

Mounting Foot

Part Number SD0522000

0.2
(4 Holes)

.6

.3

1.9

.4

2.6

6 Pin Micro 12mm Euro Straight Cable

Part Number 949-021LXX

X = Length in Feet

Floating Magnet Assembly

Part Number SD0522100

OF MAGNET

TO CENTERLINE

2 PLACES

2 PLACES

OTHER END

.359 C’BORE

.21 DEEP

1.31

1.31

2.00

.75

.34

.50

1.00

.34

.20 THRU

.50

.25

.20 THRU

6 Pin Micro 12mm Euro Right Angle Cable

Part Number 949-022LXX

X = Length in Feet
