950MD
Mill-Duty Housing
5
1080
N. Croo
ks
R
o
ad
•
C
laws
o
n, MI 48017
• 8
00-635-0289 • 248-435-0700 • Fax 24
8-
435-8120
•
Ø.7500
Standard 950MD
NOTES: UNLESS OTHERWISE SPECIFIED
1. DIMENSIONS IN BRACKETS [mm] ARE IN MILLIMETERS.
2. FOR LDT OUTPUT SIGNAL CHARACTERISTICS IN THE OVER-STRIKE
ZONES, SEE APPROPRIATE CATALOG SECTION.
1.50 [38.1]
8.25 [209.55]
TYP.
SOCKET HD SHOULDER BOLT
3/4" X 3-1/4" LG.
W/5/8-11 X 7/8" LG. THREAD
NOTE: ON MECHANICAL STROKE GREATER THAN
4 FEET AND AT 4 FOOT INCREMENTS, GUIDE
SUPPORTS MAY BE REQUIRED. SUPPORTS ARE
SUPPLIED STANDARD. REFER TO DRAWING NO.
C0903400 FOR DETAILS ON SUPPORT BRACKETS.
.625 [15.88] (1/2" ROD END)
.875 [22.23] (3/4" ROD END)
3.00 [76.20]
Ш2.87 [72.90]
Ш1.50 [38.10]
1.19 [30.23] (1/2" ROD END)
1.06 [26.92] (3/4" ROD END)
3/8" NPT INLET PORT
FOR AIR PURGE
"D"
Ø.5000 +.0025 / -.0005 ROD END
WITH SOCKET SHOULDER BOLT
Ø4.00 [101.60]
NOTE: OPTIONAL TRUNNION MOUNT LOCATION
"B"
"A"
"C"
OPTIONAL 1/4" NPT
FOR ROD AIR PURGE
1.31 [33.27]
1/2" X 2" LONG
WITH 3/8-16 X 5/8" LONG THREAD
OR
Ø .7500 +.0025 / -.0005 ROD END
WITH SOCKET SHOULDER BOLT
3/4" X 3-1/4" LONG
WITH 5/8-11 X 7/8" LONG THREAD
2.00 [50.80]
1.19 [30.23] 1.31 [33.27]
1.12 [28.45]
.750 [19.05] TRUNNION MOUNT
OPTIONAL 1/4" NPT
FOR ROD AIR PURGE
NOTE: THIS ROD END MAY BE
ADJUSTED APPROXIMATELY .75
INCHES AND IS ROTATABLE OVER
.875 [22.22] TYP.
11.12 [282.45]
1/2" NPT CONDUIT FITTING
OR OPTIONAL CIRCULAR CONNECTOR.
ROTATABLE OVER 360 DEGREES.
1/4" NPT EXIT PORT
FOR AIR PURGE
"D" + 7.75 [196.85] (1/2" ROD END)
"D" + 8.31 [211.07] (3/4" ROD END)
360 DEGREES.
"A" - ELECTRICAL STROKE =
IN.
"B" - RETRACTED OVER-STROKE =
IN.
STANDARD = 0 IN.
"C" - EXTENDED OVER-STROKE =
IN.
STANDARD = 0 IN.
"D" - TOTAL MECHANICAL STROKE =
IN.
SUMMATION OF A,B, & C.

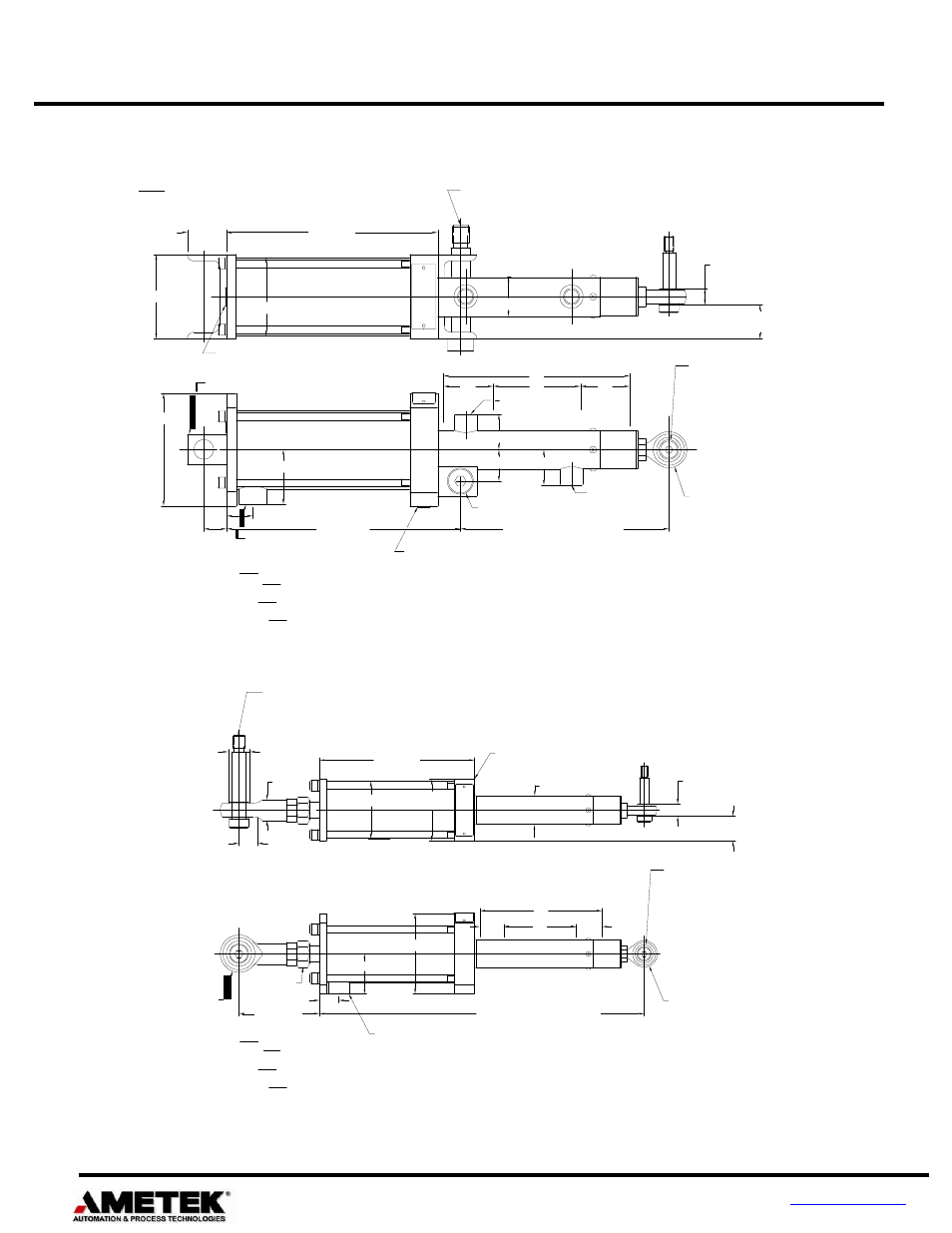

Mill-Duty with Rear Mount Spherical Rod End
SOCKET HD SHOULDER BOLT
3/4" X 3-3/4" LONG
WITH 5/8-11 X 7/8" LONG THREAD
NOTE: ON MECHANICAL STROKES GREATER THAN
4 FEET, AND AT 4 FOOT INCREMENTS, GUIDE
SUPPORTS MAY BE REQUIRED. SUPPORTS ARE
SUPPLIED STANDARD. REFER TO DRAWING NO.
C0903400 FOR DETAILS ON SUPPORT BRACKETS.
Ш1.02 [25.91]
Ш1.00
[25.4]
8.25 [209.55]
Ш4.00 BASE
WITH 3.00" FLATS
Ø1.50 [38.1]
.625 [15.88] (1/2" ROD END)
.875 [22.23] (3/4" ROD END)
Ø2.88 [73.15]
3.00 [76.20]
FLATS
.90 [22.86]
FLAT
1.19 [30.23] (1/2" ROD END)
1.06 [26.92] (3/4" ROD END)
4.00 [101.6]
"B"
"D"
"A"
"C"
Ø.5000 +.0025 / -.0005 ROD END
WITH SOCKET SHOULDER BOLT
1/2" X 2" LONG
WITH 3/8-16 X 5/8" LONG THREAD
OR
Ø .7500 +.0025 / -.0005 ROD END
WITH SOCKET SHOULDER BOLT
3/4" X 3-1/4" LONG
WITH 5/8-11 X 7/8" LONG THREAD
+.0025
-.0005
HEX NUT
3/4-16 UNF
1.12 [28.45]
2.00 [50.80]
NOTE:
FEMALE ROD END
3.94 [100.07]
"A" - ELECTRICAL STROKE =
IN.
"B" - RETRACTED OVER-STROKE =
IN.
STANDARD = 0 IN.
"C" - EXTENDED OVER-STROKE =
IN.
STANDARD = 0 IN.
"D" - TOTAL MECHANICAL STROKE =
IN.
SUMMATION OF A,B, & C.
1/2" NPT CONDUIT
FITTING OR OPTIONAL
CIRCULAR CONNECTOR
ROTATABLE OVER 360°
"D" + 16.88 [428.75] (1/2" ROD END)
"D" + 17.44 [442.97] (3/4" ROD END)
ROD END IS ADJUSTABLE
OVER .75" AND ROTATABLE
OVER 360°
