Rev. 0040807017 1010

Operating and installation instructions

Steam injector

4.3 Diagram

Refer to the data sheet for information about materials with designations and figure numbers.

4.4 Technical data - remarks

for
- Principal dimensions,
- Valves with different types of connection , etc.

refer to datasheet.

4.5 Marking

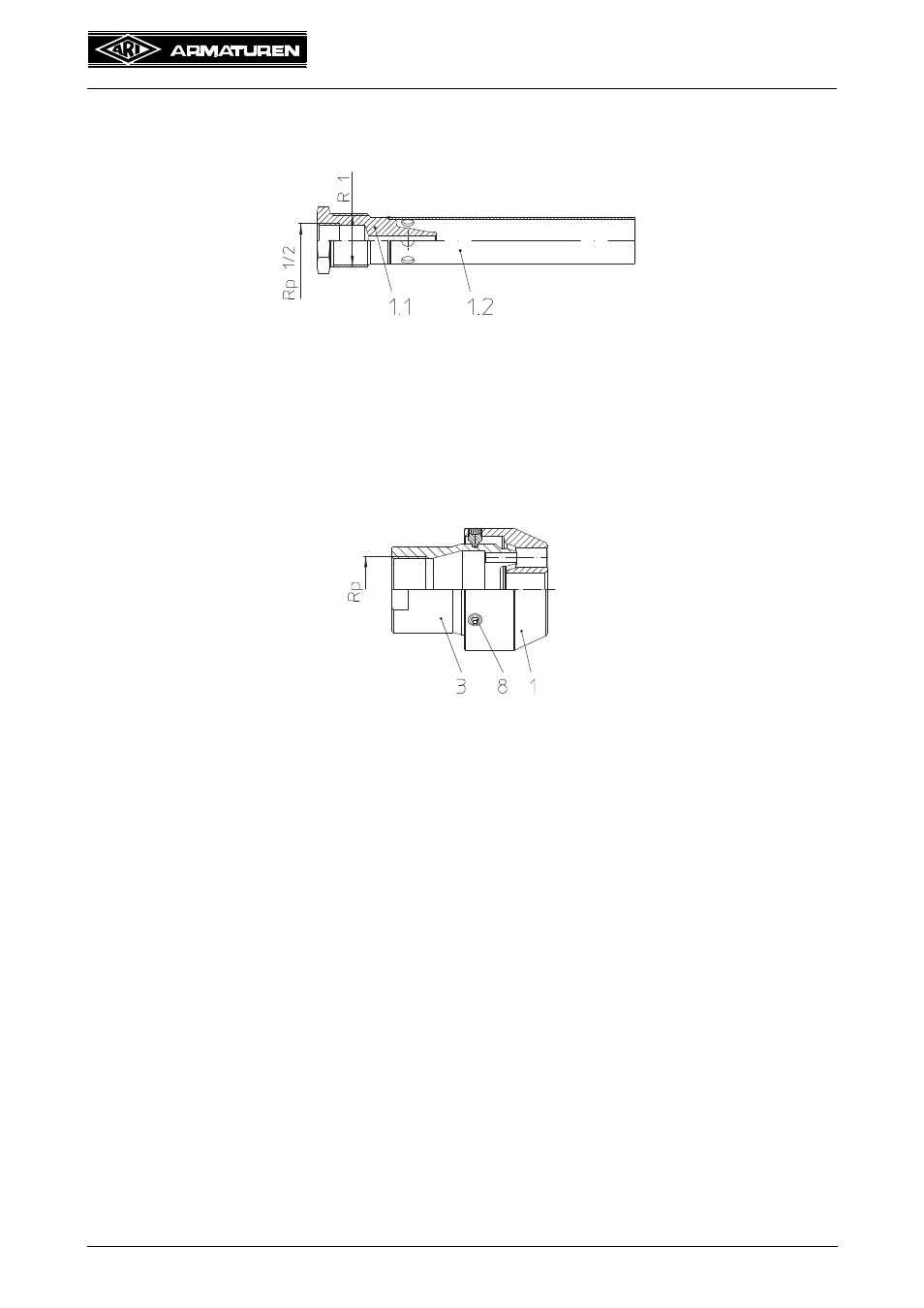

Fig. 2: Steam injector - series 651 PN25

internal thread Rp 1/2 and external thread R1

Fig. 3: Steam injector - series 651 PN25

(internal thread Rp 1 - 1 1/2

Manufacturer

Anschrift des Herstellers:

siehe Pkt 11.0 Garantie / Gewährleistung

Typ

Type

Bj.

Year of manufacture

AWH
