Rev. 0040806000 2404

Operating and installation instructions

CONA

®

TD - Thermodynamic steam traps

7.2 Option blow down valve

7.3 Tightening torques

(refer to Fig. 1 page 5-Fig. 8 page 6, Fig. 9 page 10 )

8.0 Troubleshooting

In the event of malfunction or faulty operating performance check that the installation and
adjustment work has been carried out and completed in accordance with these Operating
Instructions.

If malfunctions cannot be eliminate with the help of the following table
9.0 troubleshooting table”, the supplier or manufacturer should be consulted.

ATTENTION !
Escape of hot medium under pressure!
Observe item 2.2!

Accumulated dirt can be blown out of the strainer sleeve
(Pos. 7) through the blow down valve by opening the
pressure screw (Pos. 46.1) (PN40 only).
When opening, hold against

blow down valve (Pos. 46).

During operation it is imperative to observe general working
safety conditions and possibly fit devices to guard against
scalding/injury.
Note section 7.3 when installing and operating the option.

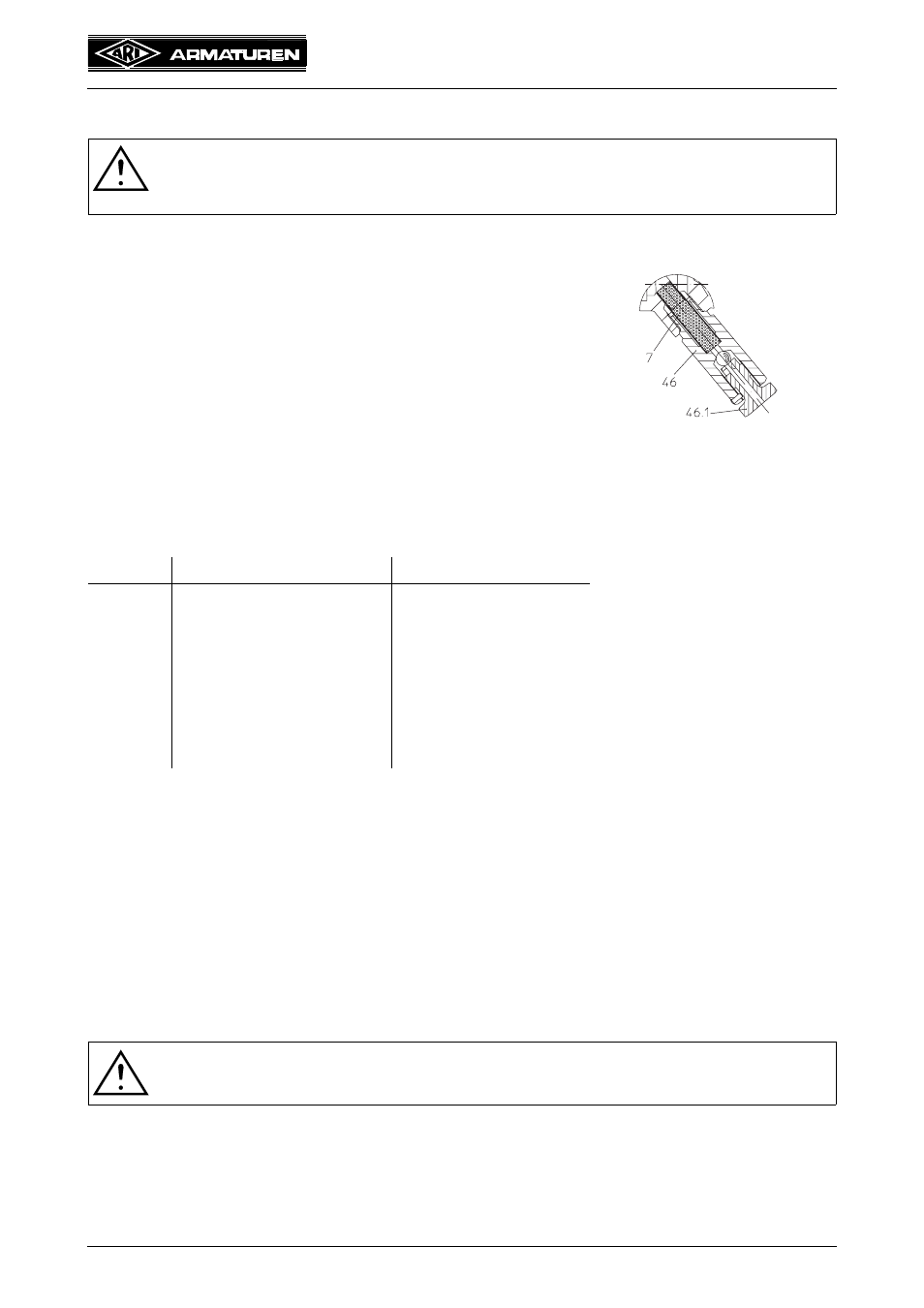

Fig. 9

Pos.

CONA TD

Torque (Nm)

6

Screw cap (PN40)

100

6

Screw cap (PN63)

80

24

Controller

80

8

Strainer plug

70

46

Blow down valve

70

46.1

Pressure screw

15

27

Hex. nut

20

-

ATTENTION !
It is essential that the safety regulations are observed when identifying faults.
