- If the stem (pos. 4.2) starts leaking, tighten the bolted gland (pos. 12) until leaking stops
DN250-400:
- If the spindle (pos. 4.2) starts leaking, tighten the stuffing box (pos. 17) with the hexagonal

nut (pos. 23)until leaking stops.

Mounting of the bonnet:
- Before reassembling the unit, remember that the bearing surface must be cleaned and 2

new gaskets (pos. 9) must be inserted.

- Set the cover in place
- Tighten the hexagon nuts (hexagon screws for valves of cast iron) evenly crosswise.
- Tightening torque‘s for hexagon nuts / screws:

ATTENTION !
- Retighten the stuffing box packing if required and re-pack it in good time.
- For safety reasons we recommend that valves only be repacked when

depressurised.

- See point 10.0 and 11.0 before dismantling the valve.

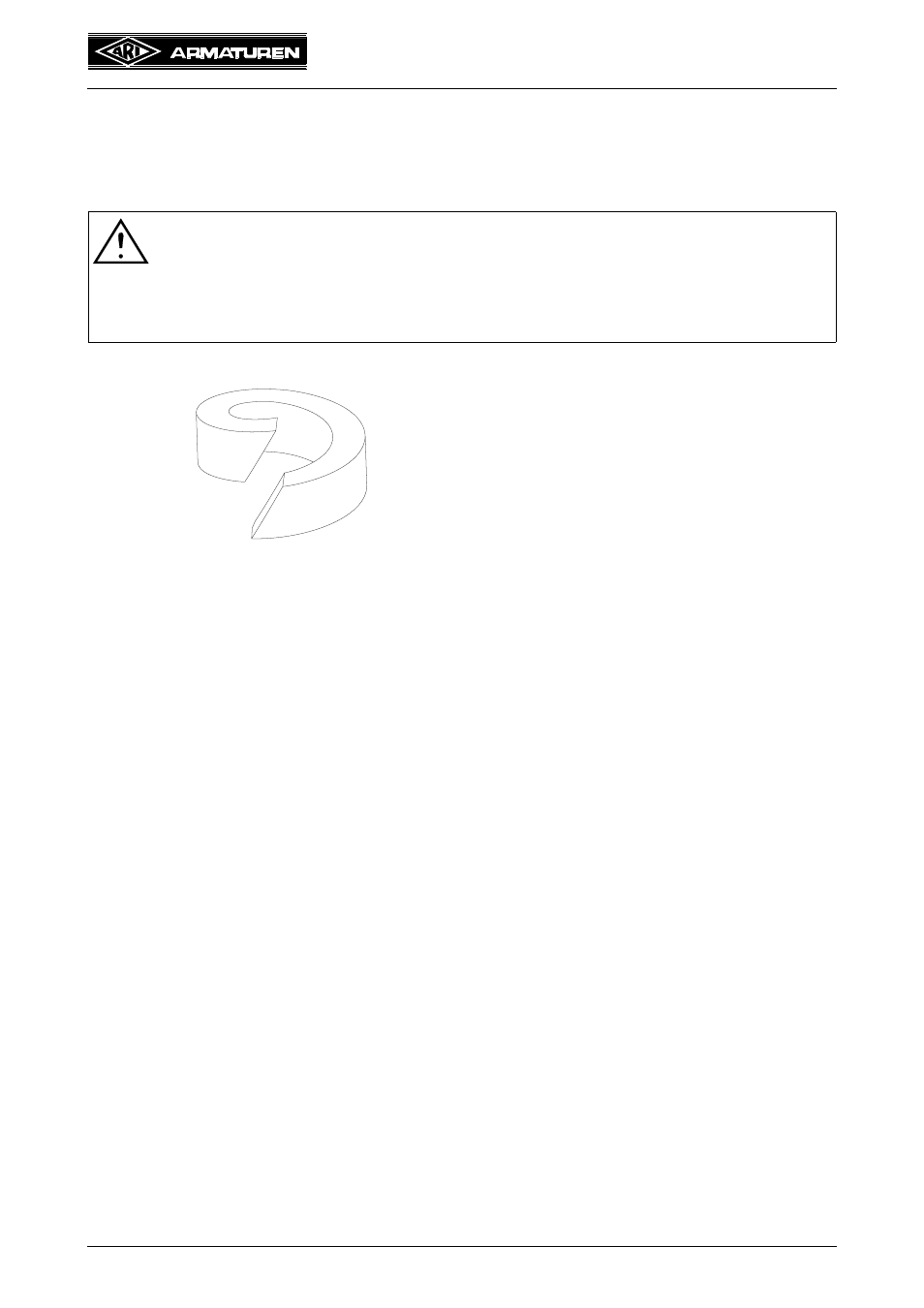

Fig. 9: Split packing ring

- When cutting the new packing von der

Schnur, make sure that the ends are cut
with a slant (see Fig. 9)

DN

hexagon nuts /

hexagon screws

Torque

(Nm)

15- 32

M 10

15-30

40- 65

M 12

35-50

80-100

M 16

75-100

125-150

M 16

80-120

200

M 20

150-200

250-400

M 24

340-410
