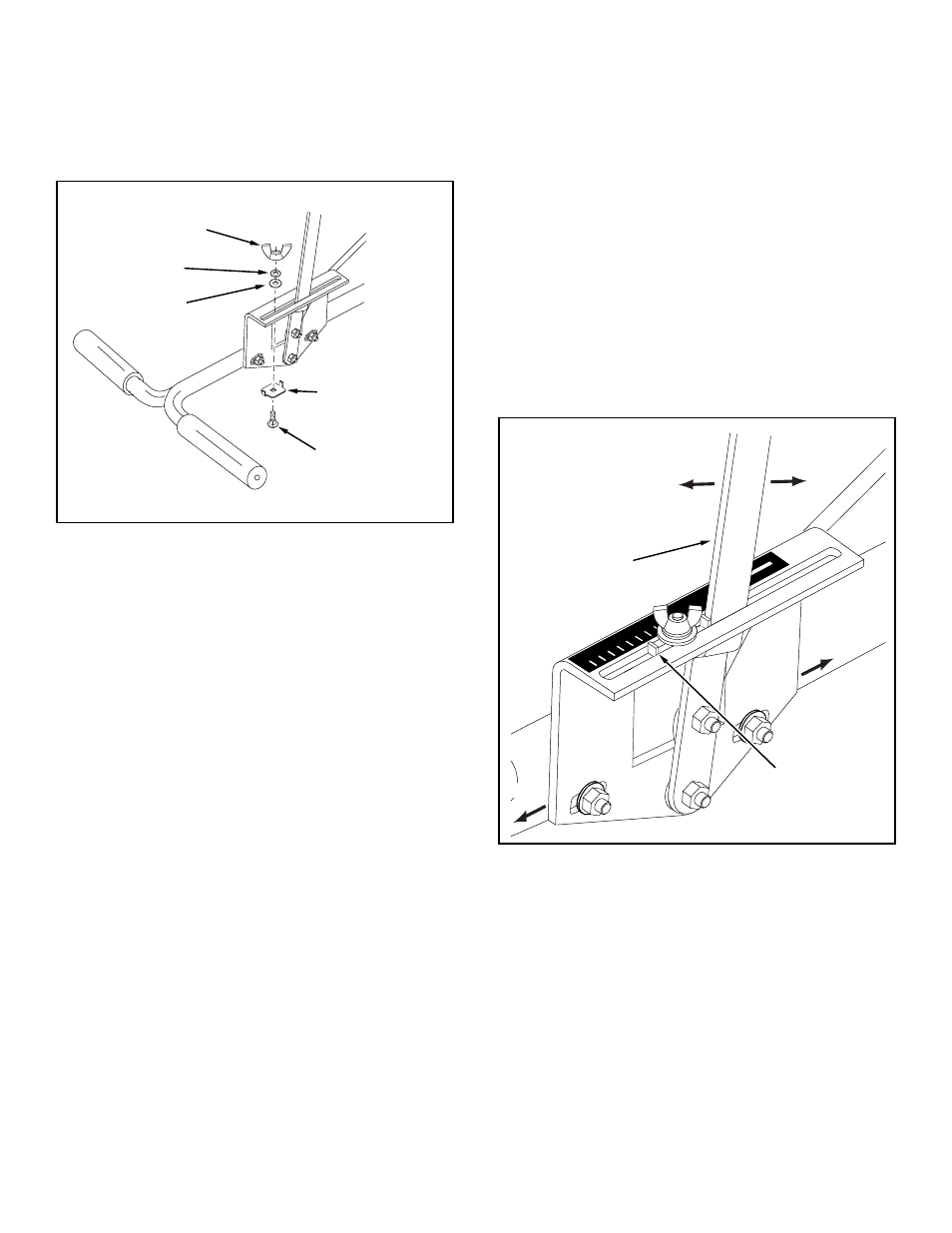

FIGURE 11
22. Place the adjustable stop into the "ON" end of
the slot in the top of the flow control mounting
bracket. Secure with the 1/4" x 3/4" carriage bolt,
a nylon washer, a 5/16" flat washer and the ny-
lon wing nut. See figure 11.
23. Position the flow control mounting bracket
(Refer to figure 12).
a. Push on flow control arm until it locks in "OFF"
position.
b. Slide flow control mounting bracket along tube
until closure plate in bottom of hopper just
closes.
c. Snug the 1/4" lock nuts just enough to hold
flow control mounting bracket in place.
d. Set adjustable stop at "5". Pull flow control
arm against stop. Verify that closure plate has
opened about half way.
e. If closure plate does not open half way, it may
be closed too far at "OFF". Adjust position of
flow control mounting bracket until closure
plate will open about half way at "5" and still
close when arm is locked in "OFF".
Tighten
1/4" lock nuts.
5/16" FLAT
WASHER
NYLON
WASHER
1/4" x 3/4"
CARRIAGE BOLT
NYLON
WING NUT
ADJUSTABLE
STOP
OFF
ON
1
2
3
4
6
7
8
9
10
5
FLOW
CONTROL
ARM
ON OFF
AJDUSTABLE
STOP
SETTING "5"
FIGURE 12
