5

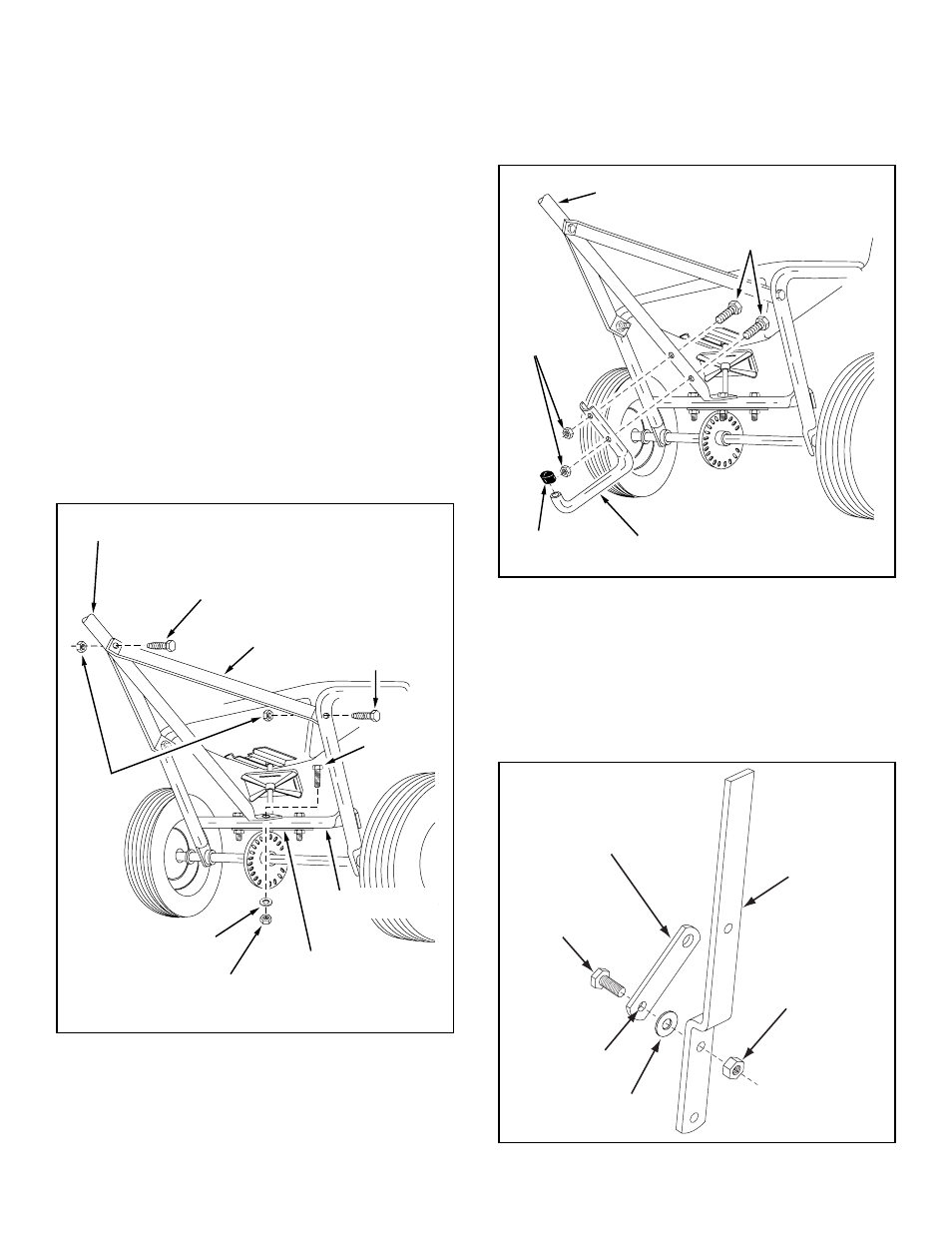

FIGURE 6
13. Assemble the leg stand tube to the long handle
tube using two 1/4" x 1-1/2" hex bolts. Secure
tightly with two 1/4" hex lock nuts. See figure 5.
14. Place a vinyl cap onto the end of the leg stand
tube. See figure 5.
FIGURE 4
FIGURE 5
15. Assemble the flow control link (end with small
hole) to the flow control arm using a 1/4" x 3/4"
hex bolt, a nylon washer and a 1/4" hex lock nut
as shown in figure 6.
Tighten carefully. The flow
control link should not be loose but should pivot
with no more than slight resistance.
FLOW CONTROL
LINK FLOW
CONTROL
ARM
1/4" HEX
LOCK NUT
1/4" x 3/4"
HEX BOLT
SMALLEST
HOLE
NYLON
WASHER
IMPORTANT: Do Not assemble long handle tube on
same side of crossover tube as shaft support
plate. Assemble on opposite side.
9. Place the long handle tube onto the crossover tube
on the
opposite side from the shaft support plate.
Fasten with 3/8" hex bolt, flat washer and hex lock
nut removed in the previous step. See figures 3
and 4.
Do not tighten at this time.
10. Assemble two handle braces to the inside of the
hopper frame, one on each side, using two 1/4" x
1-3/4" hex bolts and two 1/4" lock nuts. See figure
4.
Do not tighten at this time.
11. Assemble the other end of the two handle braces
to the long handle tube using a 1/4" x 1-3/4" hex
bolt and 1/4" lock nut.
Do not tighten at this time.
See figure 4.
12. Tighten all hex lock nuts and bolts in the same
sequence as assembled in steps 9 through 11.
See figure 4.
HANDLE TUBE (LONG)
1/4" x 1-1/2"
HEX BOLTS
1/4"
LOCK
NUT
VINYL CAP LEG STAND TUBE
3/8" HEX
BOLT
3/8" HEX
LOCKNUT
FLAT WASHER
HANDLE TUBE (LONG)
HEX BOLT
1/4" x 1-3/4"
HEX BOLT
1/4" x 1-3/4"
HITCH
BRACE
1/4"
LOCK
NUT
CROSSOVER
TUBE
SHAFT
SUPPORT
PLATE
