RocketRAID 1720 Hardware Description/Installation
2 -

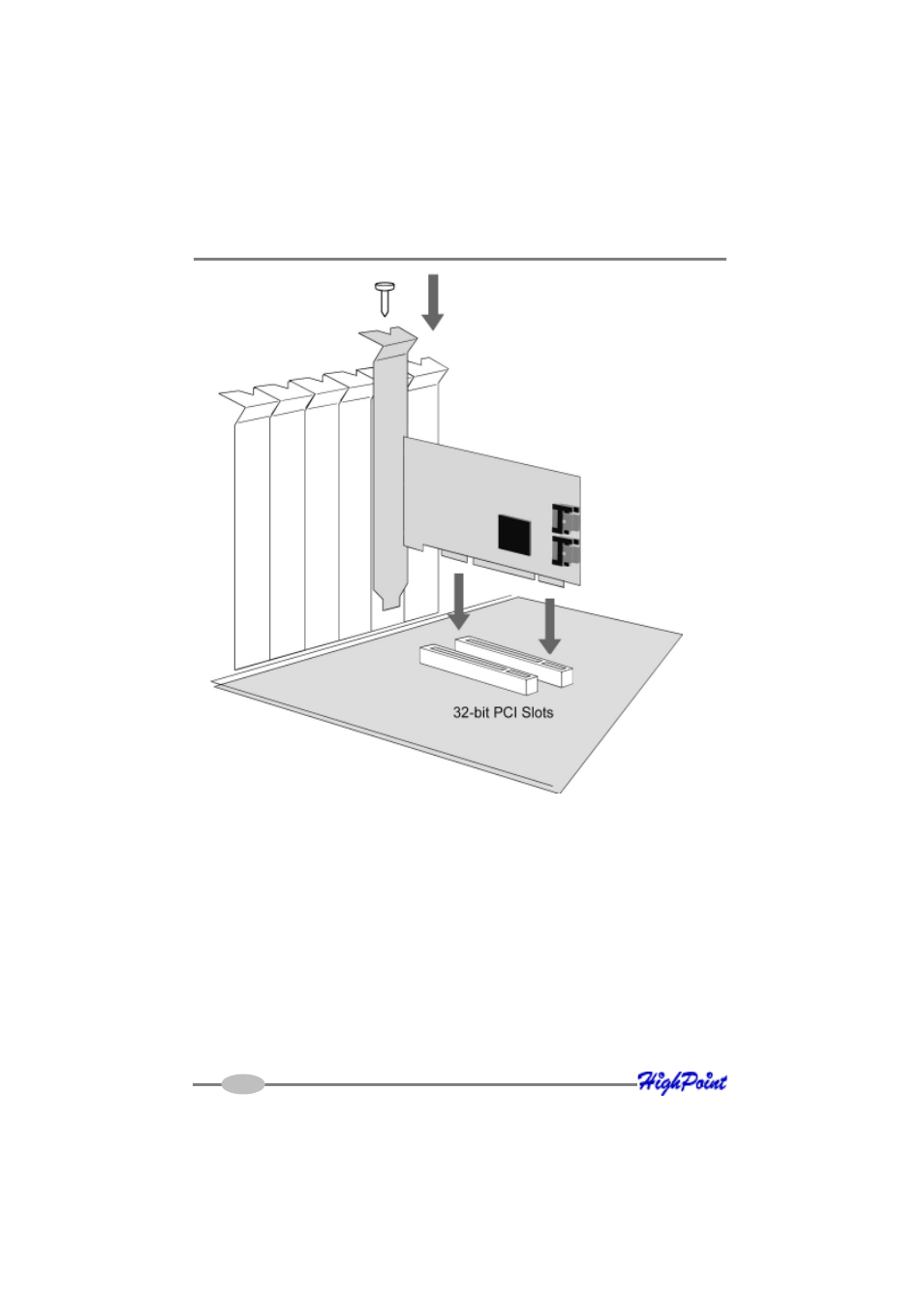

4. After installing the adapter, attach hard disks to the RocketRAID 1720 using an
SATA data cable. SATA cables have universal connections – either end can be
attached to the adapter or hard disk. Each RocketRAID 1720 included four
SATA cables, and supports up to four separate hard disks drives.
5. Many server-level chassis include hard-disk hot-swap bays. For these system
chassis, cables are attached to the chassis backplane, rather than directly to
each individual hard disk. Consult the chassis’s manual for proper installation
procedures.
6. Close and secure the system chassis.
