RocketRAID 1720 Hardware Description/Installation
2 -

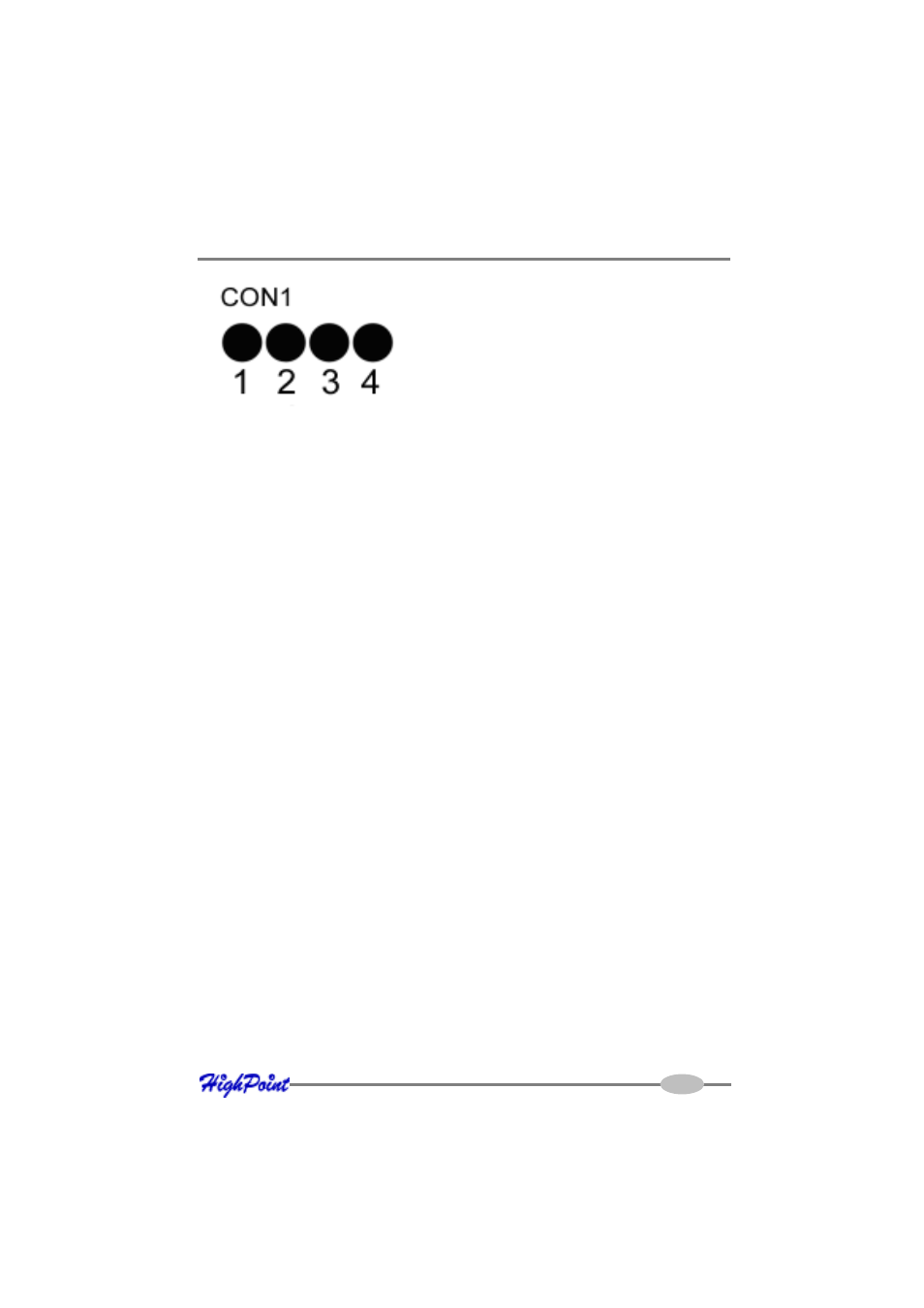

Disk Activity (Pins 1 and 2)
Pin 2 represents SATA Port 1
Pin 1 represents SATA Port 2
Disk Failure (Pins 3 and 4)
Pin 3 represents SATA Port 1
Pin 4 represents SATA Port 2
3 - Installing the RocketRAID 1720 Host Adapter
Note: Make sure the system is powered-off before installing the RocketRAID 1720
host adapter.
The RocketRAID 1720 includes both standard and low-profile brackets. It may be
necessary to attach the low-profile bracket in place of the standard bracket, depend-
ing upon the chassis design.
1. Open the system chassis and locate an unused PCI slot.
2. Remove the PCI slot cover.
3. Gently insert the RocketRAID 1720 into the PCI slot, and secure the bracket to
the system chassis.
