RocketRAID 230x Hardware Description/Installation
1. Open the system chassis and locate an unused PCI-Express slot (x1, x4, x8 or
x16).
2. Remove the PCI slot/bracket cover.
3. Gently insert the RocketRAID card into the PCI-Express slot, and secure the

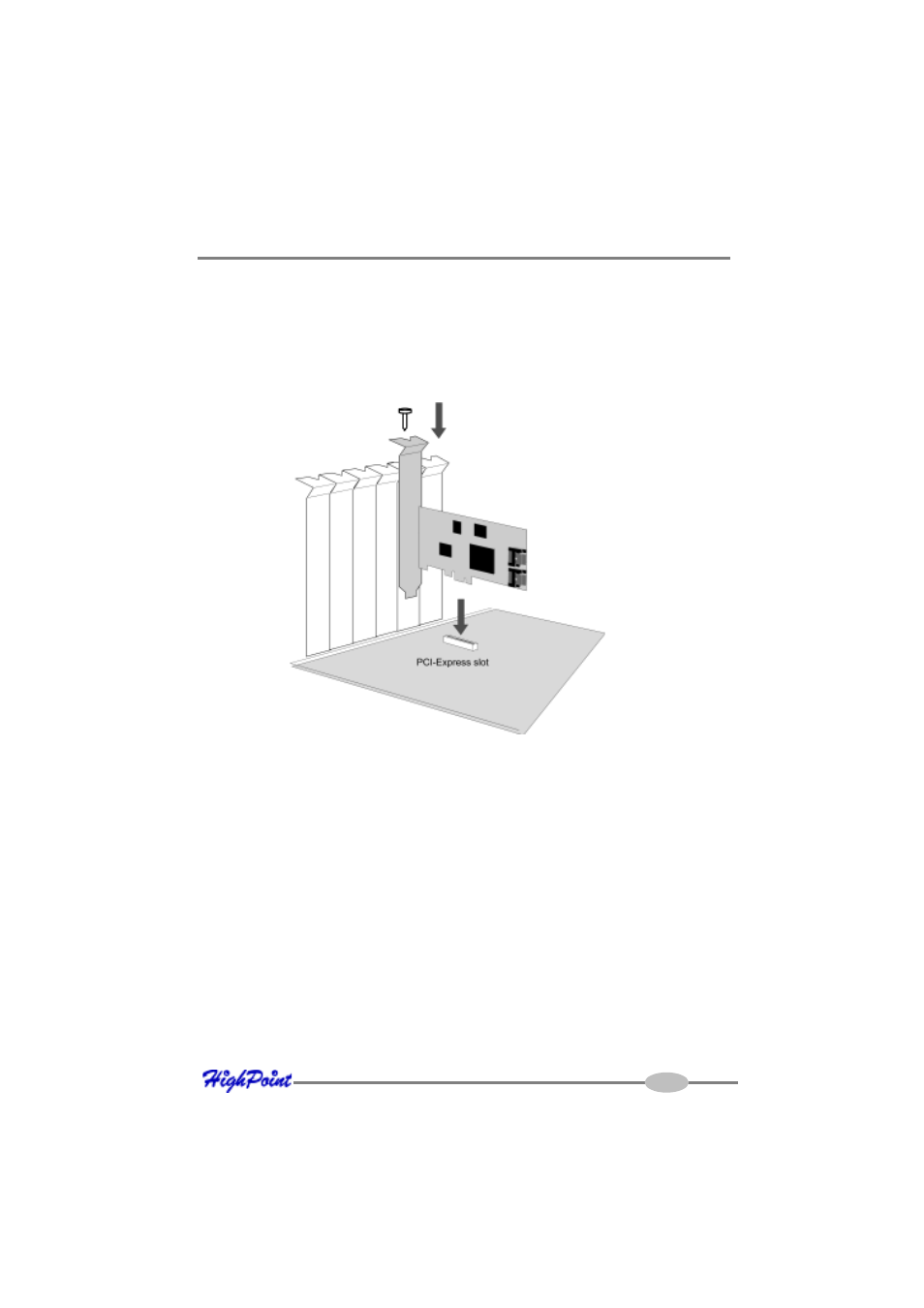

bracket to the system chassis (illustration below shows 2302 model).
2-7
4. After installing the adapter, attach hard disks to the host adapter using the data
cable. The RocketRAID 2300 model utilizes standard SATA cables – four are
included in each retail box. This card can support up to four SATA or SATAII
hard disk drives.
The RocketRAID 2302 includes 2 standard SATA cables, and 2 eSATA cables. It
can support up to four hard disk drives, and the internal and external channels
can be used simultaneously.
The RocketRAID 2304 includes four eSATA cables, and supports up to four
external hard disks drives.
